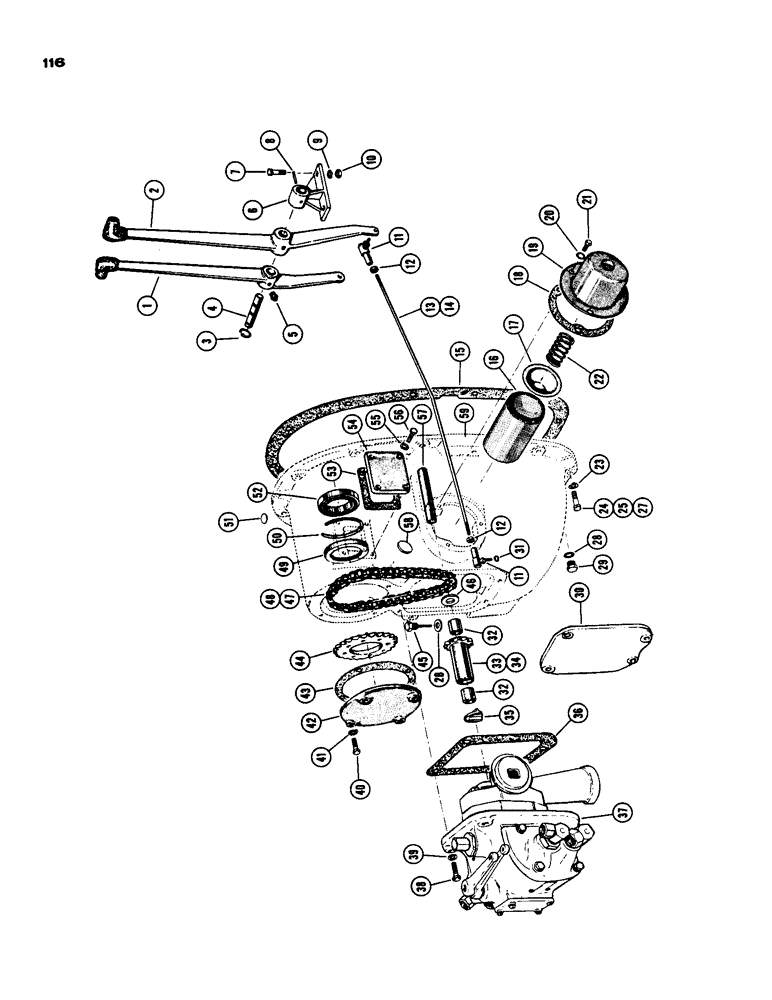

Запчасти Case IH 930-SERIES (116) - PTO AND HYDRAULIC HOUSING (08) - HYDRAULICS

1

A24058

LEVER hyd. valve control hand, inner

1шт.

2

A24059

LEVER hyd. valve control hand, outer

1шт.

3

A20202

RING

"E" RING hyd. valve hand

1шт.

4

A24056

STUD valve control hand lever

1шт.

5

219-14

LUBE NIPPLE,1/4" NPTF

FITTING 1/4" straight drive

2шт.

6

A24057

BRACKET valve control hand lever

1шт.

7

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2" x 1-1/4" N.F. hex

2шт.

8

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

2шт.

11

O8445AB

X

BALL JOINT hyd. valve control rod

4шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

5/16" N.F. hex. jam

4шт.

13

A24060

ROD hyd. valve control, inner & outer (930)

2шт.

14

A24061

ROD hyd. valve control, inner & outer (940)

2шт.

15

A24163

GASKET

PTO & hyd. hsg.

1шт.

16

O8440AB

X

FILTER hyd. pump

1шт.

17

O8441AB

X

REATINER hyd. pump filter

1шт.

18

O8441AB1

X

GASKET hyd. pump filter cover

1шт.

19

O8754AB

COVER hyd. pump filter

1шт.

20

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

22

O8442AB1

X

SPRING hyd. pump filter

1шт.

23

92-8

LOCK WASHER,1/2"

14шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

27

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

28

O9844AB

X

WASHER hyd. pump hsg. & oil level plugs

2шт.

29

A14280

PLUG

hyd. pump hsg. oil

1шт.

30

A6148A

COVER hyd. pump opening

1шт.

31

92-5

LOCK WASHER,5/16"

4шт.

32

O9028AB

X

BUSHING for A24126 or A24132 sprocket

2шт.

33

A24126

SPROCKET ASSY.

SPROCKET driven (w/bshgs.) (540 RPM)

1шт.

34

A24132

SPROCKET driven w/bshgs.) (1000 RPM)

1шт.

35

O8469AB1

COUPLING hyd. pump drive

1шт.

REF#35 NOTE;EARLY MODEL 930 TRACTORS USED O10905AB SNAP RING WITH ITEM 35 COUPLING.THIS WAS NOT USED ON LATER UNITS.

1шт.

36

O8422AB1

X

GASKET hyd. valve body

1шт.

37

A23384

VALVE

dual, and pump assembly

1шт.

38

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

39

92-8

LOCK WASHER,1/2"

4шт.

40

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2" x 1-3/4" N.C. hex

4шт.

41

92-8

LOCK WASHER,1/2"

4шт.

42

6137A

COVER PTO clutch opening

1шт.

43

O9031AB

X

GASKET PTO clutch opening

1шт.

44

O9025AB

SPROCKET hyd. pump drive

1шт.

45

A23981

GAUGE

DIPSTICK hyd. hsg. oil level, and plug

1шт.

46

A24130

SPACER

hyd. pump drive sprocket

1шт.

47

O8435AB

X

CHAIN hyd. pump drive (540 RPM)

1шт.

48

A22315

CHAIN hyd. pump drive

1шт.

49

A10062

OIL SEAL

OIL SEAL PTO clutch drum

1шт.

50

A10063

RING, SNAP

SNAP RING PTO clutch frum brg. retaining

1шт.

51

41-16

PLUG,Exp, 1"

expansion, 1"

1шт.

52

A11065

BALL BEARING,2.3622" ID x 3.7402" OD x 0.7087"

BEARING PTO clutch drum (ND 7-3612)

1шт.

53

A23980

GASKET

PTO Clutch adjusting cover

1шт.

54

A23979

COVER PTO clutch adjusting

1шт.

55

92-6

LOCK WASHER,3/8"

4шт.

56

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

57

O9029AB

X

PIN hyd. pump drive sprocket brg

1шт.

58

A23985

PLUG

cup

1шт.

59

A23978

HOUSING hyd. pump & PTO clutch main

1шт.
