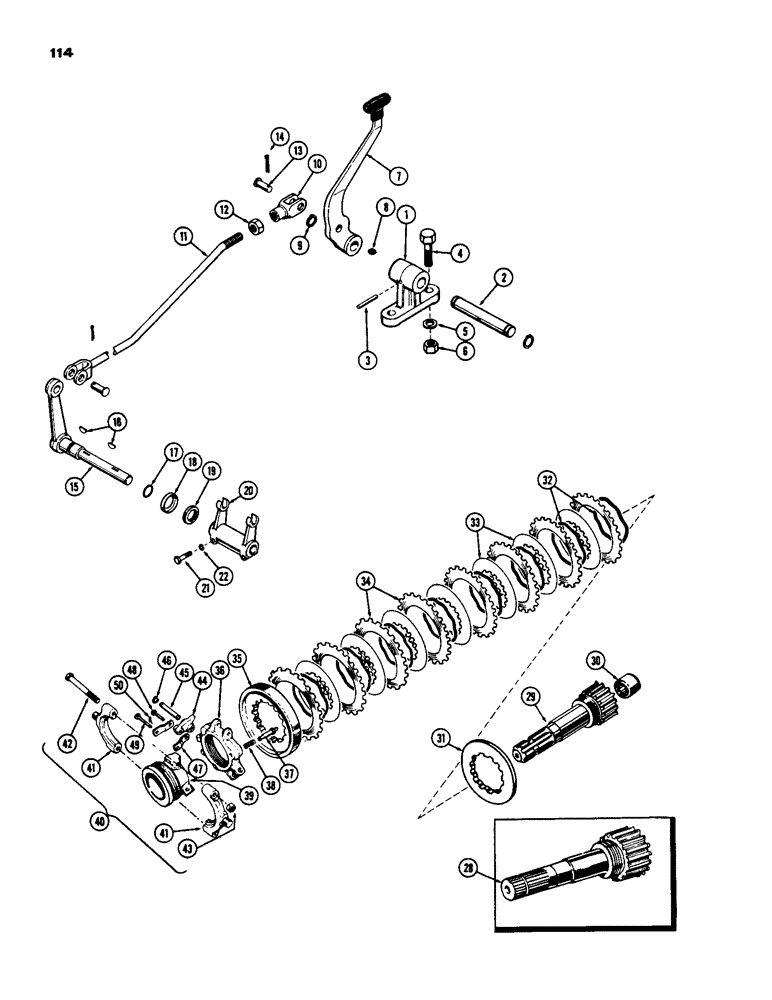

Запчасти Case IH 930-SERIES (114) - PTO CLUTCH AND CONTROLS (06) - POWER TRAIN

1

A23815

SUPPORT - P.T.O. lever shaft

1шт.

2

A24199

SHAFT - P.T.O. lever

1шт.

3

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, , Shaft to support 1/4" x 1 3/4", Slotted

1шт.

4

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Support Hex, 5/8"-18 x 1 3/4", G5

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

2шт.

7

A24068

LEVER ASSY. - hand, P.T.O. clutch, Includes Ref: 8

1шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" straight drive)

1шт.

9

O9640AB

X

RING - snap, lever retaining

1шт.

10

A24070

CLEVIS - P.T.O. control rod

1шт.

11

A24071

ROD - P.T.O. control

1шт.

12

25-1110

NUT,5/8"-18, G5

- clevis stop (5/8" N.F. hex.)

1шт.

13

O10303AB

X

PIN - clevis (13/16 x 1-39/64")

2шт.

14

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

15

A24065

SHAFT - P.T.O. clutch throwout

1шт.

16

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Shaft #9, 3/16" x 3/4"

2шт.

17

O8416AB

X

"O" RING - shaft (3/4 x 15/16 x 3/32")

1шт.

18

O9053AB

X

RETAINER - dust seal

1шт.

19

O9052AB

X

SEAL - dust (29/32 x 1-7/16 x 1/4" felt)

1шт.

20

6143A

X

YOKE - PTO clutch throwout

1шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- yoke (5/16" x 1-1/4" N.C. hex.)

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

28

A22307

SHAFT - stub (1000 RPM) (21 spline)

1шт.

29

O9036AB

X

SHAFT - stub (540 RPM) (6 spline)

1шт.

30

O5034BF

X

BEARING - needle, P.T.O. shaft pilot

1шт.

31

A7101

PLATE

- backing, PTO. clutch

1шт.

32

O9039AB

SPRING

- drive plate separators

10шт.

33

A7102

CLUTCH DRIVING PLATE

PLATE - driven (steel, internal teeth)

9шт.

34

A11127

PLATE

- drive (bronze, external teeth) (Replaces A1127)

10шт.

35

6139A

X

PLATE - pressure, PTO clutch

1шт.

36

O9040AB1

X

YOKE - clutch adjusting

1шт.

37

O9041AB

X

PIN - clutch adjustment lock

1шт.

38

O5839AB

X

SPRING - lock adjustment pin

1шт.

39

6140A

X

SLEEVE - sliding

1шт.

40

4259AA

X

COLLAR ASSY. - throwout, Includes Ref: 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

COLLAR - throwout (Order 4259AA)

2шт.

42

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Collar Hex, 5/16"-24 x 1 1/4", G5

2шт.

43

O10837AB

NUT - (5/16" N.F. self-locking)

2шт.

44

A36552

FINGER

- P.T.O. clutch

3шт.

45

4489AA

X

PIN ASSY. - finger pivot

3шт.

46

O9637AB

X

RING - snap, pin ret. ("E" ring)

2шт.

47

O9045AB

LINK - PTO clutch lever

6шт.

48

A8823

PIN,6.29mm OD x 26.99mm L

- clevis, link to finger (1/4 x 1-15/64")

3шт.

49

A8824

PIN

- clevis, link to finger (1/4 x 1-15/64")

3шт.

49

A8824

PIN

- clevis, link to collar (1/4 x 31/32")

3шт.

50

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.
