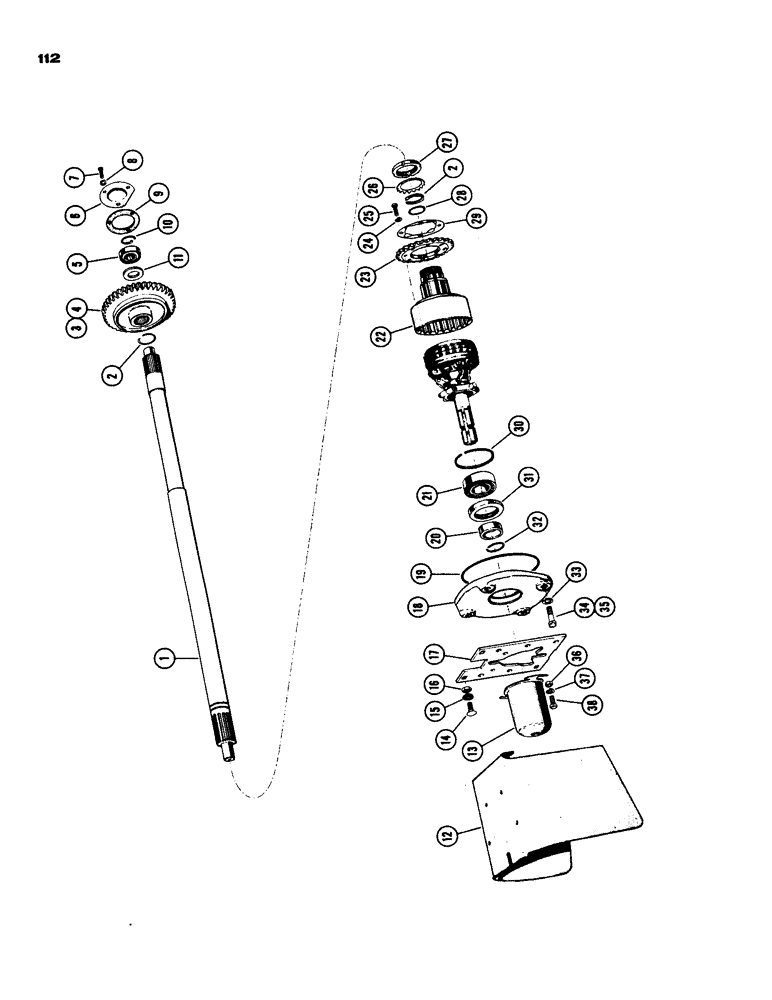

Запчасти Case IH 930-SERIES (112) - POWER TAKE OFF (06) - POWER TRAIN

1

A10060

SHAFT PTO & hyd drive

1шт.

2

O6502AB

RING, SNAP

SNAP RING PTO & hyd. drive shaft

2шт.

3

A21333

GEAR PTO driven (540 RPM) (See A22310)

1шт.

4

A22310

GEAR PTO driven (1000 RPM) (See A21333)

1шт.

5

A8217

BEARING, ROLLER, CYL

BEARING PTO Shaft frt. (Hyatt #U1206-TM)

1шт.

6

O831AB

CAP PTO front

1шт.

7

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

3шт.

9

O1488AB

X

GASKET front cap

1шт.

10

A8218

SNAP RING,#118, Ext

Ring, Snap, , PTO & hyd. shaft. shaft, front #118, Ext

1шт.

11

A10066

SPACER

PTO & hyd. drive shaft gear

1шт.

12

O8303AB

X

GUARD PTO

1шт.

13

A20483

GUARD

PTO shaft, tubular

1шт.

14

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

15

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

LOCKWASHER 3/8" Shakeproof int

2шт.

16

25-106

NUT,3/8"-16, G5

3/8" N.C. hex

2шт.

17

O5386AB

PLATE PTO guard mtg.

1шт.

18

6142A

CARRIER PTO rear bearing

1шт.

19

O8447AB

X

"O" RING rear bearing carrier

1шт.

20

O1823AB2

X

SPACER PTO stub shaft

1шт.

21

A20979

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING rear PTO

1шт.

22

A10061

DRUM PTO clutch

1шт.

23

O9025AB

SPROCKET hydraulic pump drive

1шт.

24

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

6шт.

25

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

6шт.

26

A7407

X

WASHER PTO clch drum brg lock nut

1шт.

27

A7406

LOCK NUT

NUT lock, PTO clutch drum brg.

1шт.

28

O10485AB

X

"O" RING PTO & hyd drive shaft

1шт.

29

O9315AB

BAFFLE PTO clutch oil

1шт.

30

A27417

RING

SNAP RING PTO clutch drum brg.

1шт.

31

O3899AB

X

OIL SEAL PTO stub shaft

1шт.

32

A21619

CIRCLIP

SNAP RING PTO stub shaft

1шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2" x 1-3/4" N.C. hex

3шт.

35

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT 1/2" x 1/2" x 1-3/4" N.C. 12 pt

1шт.

36

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex.

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.
