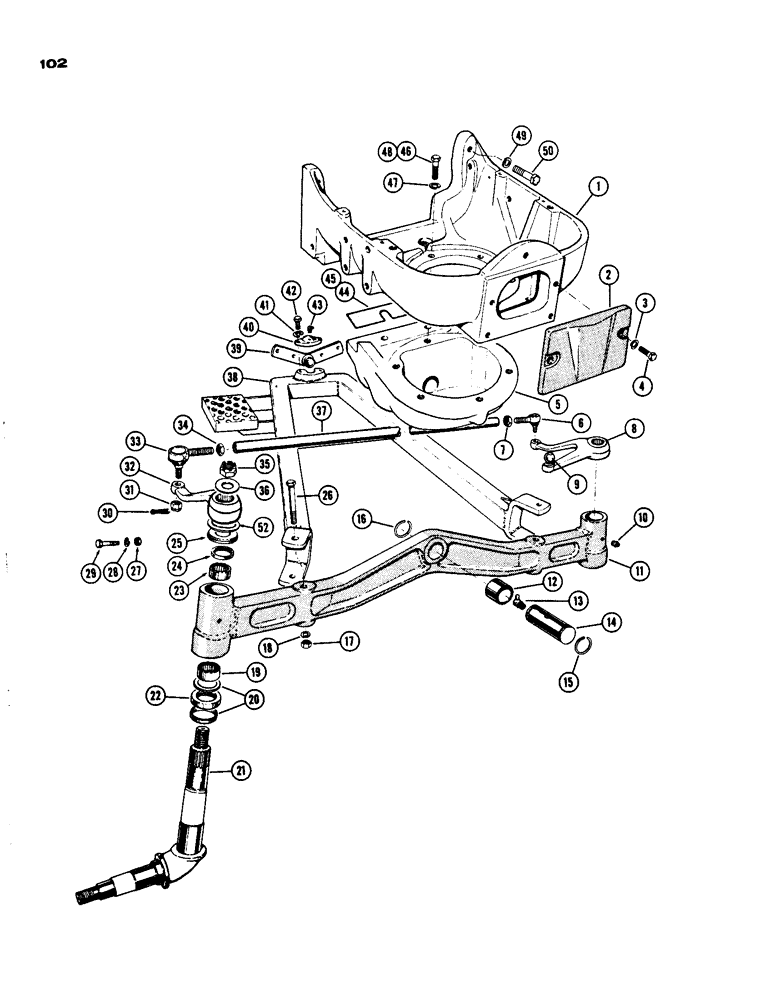

Запчасти Case IH 930-SERIES (102) - FRONT AXLE AND RADIUS ROD (06) - POWER TRAIN

1

A22803

BRACKET - radiator (Prior to SN8250414) (Order A32578)

1шт.

1

A32578

BRACKET - radiator (SN8250414-8258382)

1шт.

2

A22769

COVER rad. brkt. front

1шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

2шт.

5

A2821

PEDESTAL - front axle

1шт.

6

4803AA

X

END tie rod L.H. thread

1шт.

7

A9877

NUT

- jam, tie rod end, L.H. thread

1шт.

8

A21451

ARM strg. sprindle, w/ball (Str. spline)

1шт.

8

A24473

ARM str. spindle, w/ball (Tapered spline)

1шт.

9

A11474

BALL

Steering arm

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING 1/8" str. Lincoln #5000

2шт.

11

A20928

AXLE - front (includes bushing), Includes Ref: 12

1шт.

12

A35002

BUSHING

- pivot pin

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

A22823

PIN

pivot

1шт.

15

A7610

RING, SNAP

SNAP RING pivot pin frt.

1шт.

16

A7611

SNAP RING,#175, Ext

Ring, Snap, , pivot pin rear #175, Ext

1шт.

17

25-1610

NUT,5/8"-11, G5, Hvy

5/8" hex. (Special)

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

O10867AB

X

BEARING needle, lo. (Torrington #B3216-OH)

2шт.

20

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust, wheel spindle

4шт.

21

A36535

SPINDLE - frt. wheel (Tapered Spline)

2шт.

21

O10865AB

SPINDLE - frt. wheel (Straight Spline)

2шт.

22

O9058AB

X

BEARING thrust (Timken No. T119)

2шт.

23

O10866AB

X

BEARING needle, upper (Torrington #B2816)

2шт.

24

O9504AB

X

SEAL spindle upper

2шт.

25

A7155

SHIELD

- dust (w/straight spline spindle)

2шт.

25

A35344

SHIELD

SHIEDL - dust (w/tapered spline spindle)

2шт.

26

A22949

BOLT radius rod to frt. axle

2шт.

27

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex. (w/straight spline spindle)

2шт.

28

92-8

LOCK WASHER,1/2"

N.F. std. (w/str. spline spindle) 1/2"

2шт.

29

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

- 1/2" x 3" N.F. hex. hd. (w/str. spline spindle)

2шт.

30

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

31

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod end to arm

2шт.

32

A11472

ARM str., R.H. (Str. spline)

1шт.

32

A24474

ARM steering, R.H. (Tapered Spline)

2шт.

33

2664AA

X

END tie rod, R.H. thread

1шт.

34

O10498AB

NUT jam. R.H. thread

1шт.

35

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT 1-1/8" N.F. hex. thick slotter

2шт.

36

A35047

WASHER

1-3/16" SAE plain

2шт.

37

A21336

TUBE tie rod

1шт.

38

A23722

ROD radius

1шт.

39

A1487

BALL radius rod pivot

1шт.

40

A22952

CAP

radius rod ball socket

1шт.

41

92-8

LOCK WASHER,1/2"

2шт.

42

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

1/2" x 3-1/4" N.F.

2шт.

43

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lincoln #5400 90º, 1/8" NPT x .84" lg

1шт.

44

A22798

SHIM pedestal (.005")

1шт.

45

A22799

SHIM pedestal (.003")

1шт.

46

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

48

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

49

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

50

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

52

A35345

SHIM,.0359" Thk

Spindle .0359" Thk

1шт.

52

A35346

SHIM,.0598" Thk

Spindle .0598" Thk

1шт.

52

A35347

SHIM,.1345" Thk

Spindle .1345" Thk

1шт.

52

A35861

SHIM,.0149" Thk

Spindle .0149" Thk

1шт.
