Запчасти Case IH 930-SERIES (100) - CAST WHEELS WITH PLAIN HUB, FRONT WHEELS (06) - POWER TRAIN

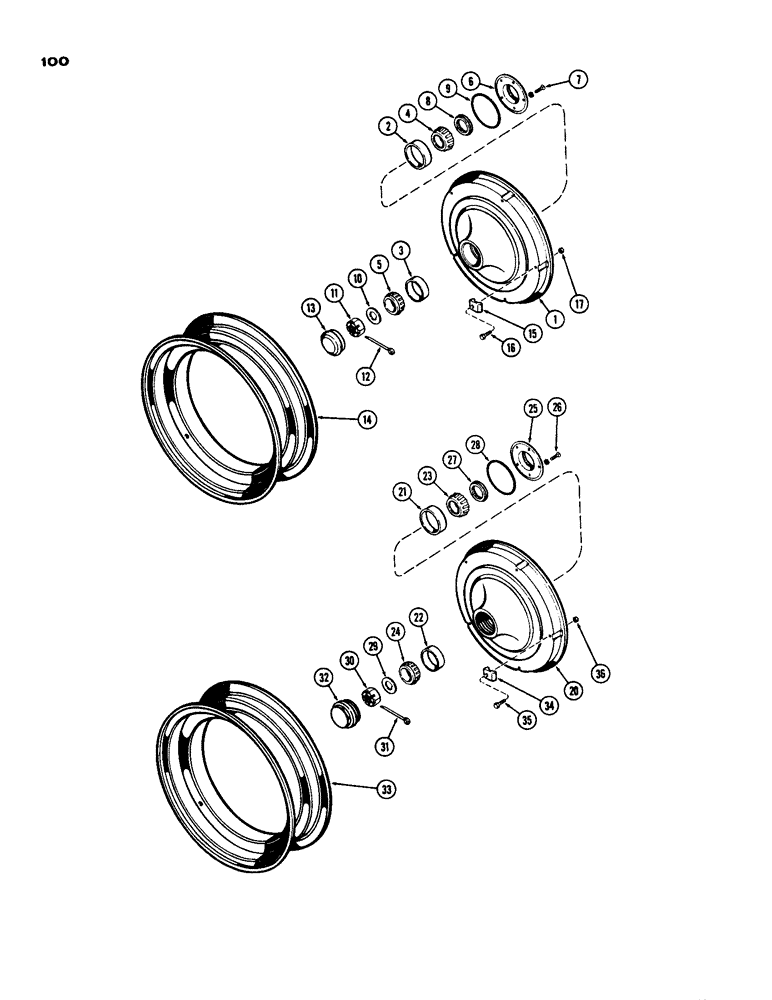

Схема запчастей Case IH 930-SERIES - (100) - CAST WHEELS WITH PLAIN HUB, FRONT WHEELS (06) - POWER TRAIN
6
10
24
30
4
21
34
32
13
12
36
35
2
27
15
7
26
23
14
33
31
11
25
5
20
22
29
9
3
28
1
16
8
17

Артикул

Название

Примечание

Количество

1

A33351

WHEEL

ASSY. - hub, Includes Ref: 2 and 3

2шт.

2

VT2100

X

CUP - bearing, inner

1шт.

3

O9149AB

X

CUP - bearing, outer

1шт.

4

VT2101

X

CONE - bearing, inner

2шт.

5

VT4831

X

CONE - bearing, outer

2шт.

6

O7059AB

X

RETAINER - oil seal

2шт.

7

74-410

SCREW,Slotted Flat Hd, 1/4"-28 x 5/8"

- retainer (1/4 x 5/8" N.F. flat hd.)

10шт.

8

O7058AB

X

SEAL - oil, front brgs. (2-15/32 x 3-15/64 x 1/2")

2шт.

9

O10021AB

X

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8")

2шт.

10

O4368AB

X

WASHER - outer brg. ret.

2шт.

11

25-2318

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. sltd.)

2шт.

12

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

13

VT4450

X

CAP - hub

2шт.

14

O7810AB

X

RIM - (takes 5.50 x 18 tire)

2шт.

15

O7593AB

X

CLAMP -, Serial Range: rim-wheel

10шт.

16

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- clamp (1/2 x 3-1/2" N.F. hex.)

10шт.

17

25-178

NUT,1/2"-20, G5, Hvy

- (1/2" N.F. hex.)

10шт.

20

A11427

WHEEL

ASSY. - hub, cast, threaded, Includes Ref: 21 and 22

2шт.

21

VT2100

X

CUP - bearing, inner, cast wheels, threaded hub

1шт.

22

O9149AB

X

CUP - bearing, outer, cast wheels, threaded hub

1шт.

23

VT2101

X

CONE - bearing, inner, cast wheels, threaded hub

2шт.

24

VT4831

X

CONE - bearing, outer, cast wheels. threaded hub

2шт.

25

O7059AB

X

RETAINER - oil seal, cast wheels, threaded hub

2шт.

26

74-410

SCREW,Slotted Flat Hd, 1/4"-28 x 5/8"

- retainer (1/4 x 5/8" N.F. flat hd.), cast wheels, threaded hub

10шт.

27

O7058AB

X

SEAL - oil, front brgs. (2-15/32 x 3-15/64 x 1/2"), cast wheels, threaded hub

2шт.

28

O10021AB

X

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8"), cast wheels, threaded hub

2шт.

29

O4638AB

WASHER - outer brg. ret., cast wheels, threaded hub

2шт.

30

25-2318

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. sltd.), cast wheels, threaded hub

2шт.

32

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Cast wheels, threaded hub 3/16" x 1 3/4"

2шт.

32

4384A

X

CAP - hub, cast wheels, threaded

2шт.

33

O7810AB

X

RIM - (takes 5.50 x 18 tire), cast wheels, threaded hub

2шт.

34

O7593AB

X

CLAMP - rim to wheel, cast, threaded hub

10шт.

35

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- clamp (1/2" x 3-1/2" N.F. hex.), cast wheels, threaded hub

10шт.

36

25-178

NUT,1/2"-20, G5, Hvy

- (1/2" N.F. hex.), cast wheels, threaded hub

10шт.

Выбрано товаров: 34
