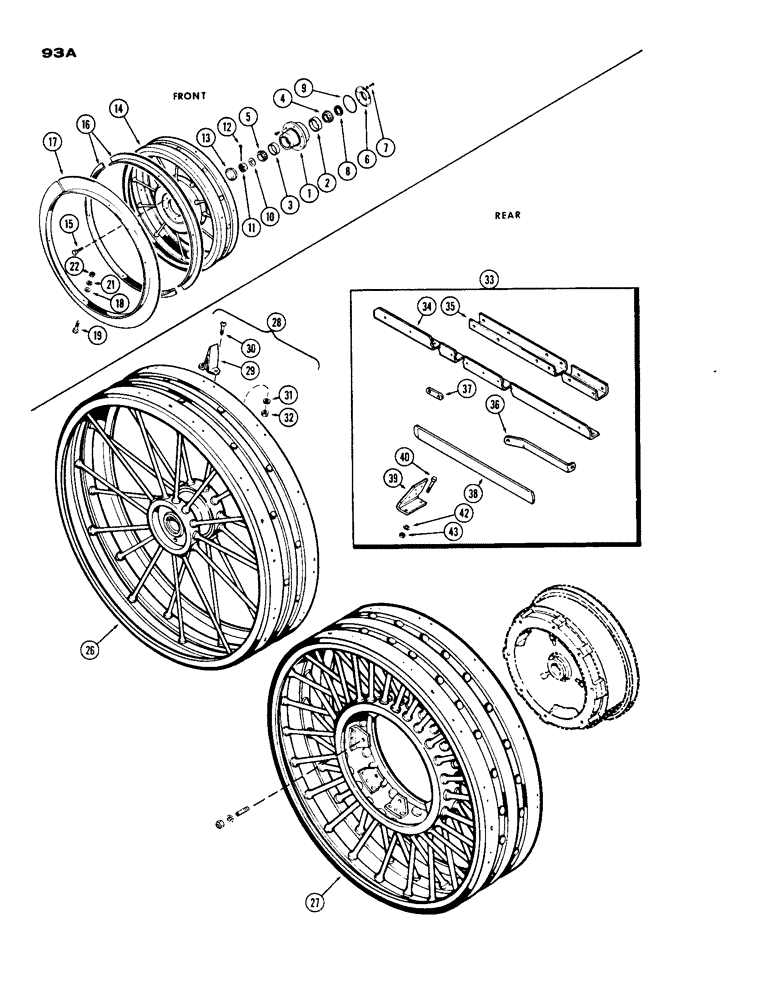

Запчасти Case IH 930-SERIES (093A) - FRONT WHEELS, STEEL WHEELS (06) - POWER TRAIN

1

A22743

HUB

ASSY. - front wheel, Includes Ref: 2 and 3

2шт.

2

VT2100

X

CUP - bearing, inner

1шт.

3

O9149AB

X

CUP - bearing, outer

1шт.

4

VT2101

X

CONE - bearing, inner

2шт.

5

VT4831

X

CONE - bearing, outer

2шт.

6

O7059AB

X

RETAINER - oil seal

2шт.

7

74-410

SCREW,Slotted Flat Hd, 1/4"-28 x 5/8"

- retainer (1/4 x 5/8" N.C. flat hd.)

10шт.

8

O7058AB

X

SEAL - oil, front brgs

2шт.

9

O10021AB

X

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8")

2шт.

10

O4368AB

X

WASHER - outer brg. ret.

2шт.

11

25-2318

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. sltd.)

2шт.

12

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

13

VT4450

X

CAP - hub

2шт.

14

A23047

WHEEL - front

2шт.

15

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- wheel to hub (1/2 x 1-1/2" N.F. hex.)

12шт.

16

O1781AB

RING - skid (split, 1-1/2" wide)

4шт.

17

O1979AB

RING - skid (solid, 3" wide)

2шт.

18

O1980AB

SPACER - skid ring

16шт.

19

17-820

BOLT - (1/2 x 1-1/4" N.C. mach.) (for 1-1/2" ring)

16шт.

20

17-824

BOLT - (1/2 x 1-1/2" N.C. mach.) (for 3" ring)

16шт.

21

92-8

LOCK WASHER,1/2"

28шт.

22

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

16шт.

26

A23052

WHEEL - rear

2шт.

27

A23576

WHEEL - (used w/A11348 ctr. disc), rear

2шт.

28

489AA

LUG KIT - (Set of 56), rear wheels, Includes Ref: 28 - 32

2шт.

29

NSS

NOT SOLD SEPARAT

LUG - rear wheel (Order 489AA)

56шт.

30

17-1224

BOLT - lug (3/4 x 1-1/2" N.C. sq. hd.), rear wheels

112шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear wheels 3/4"

112шт.

32

25-1012

NUT,3/4"-10, G5

Lug bolt, rear wheels 3/4"-10, G5

112шт.

33

A11987M

SCRAPER KIT - rear wheels, Includes Ref: 34 - 43

1шт.

34

A11983

ANGLE - scraper, rear wheels

1шт.

35

A11986

SPACER - angle, rear wheels

1шт.

36

A20160

BRACE - angle, rear wheels

2шт.

37

O2224AB

STRAP - scraper, rear wheels

4шт.

38

O6243AB

SCRAPER - rear wheels

2шт.

39

O8479AB

BRACKET - scraper, rear wheels

2шт.

40

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- (1/2 x 1-1/2" N.F. hex.), rear wheels

4шт.

40

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.F. hex.), rear wheels

12шт.

40

16-880

BOLT - (1/2 x 5" N.F. hex.), rear wheels

4шт.

42

92-8

LOCK WASHER,1/2"

rear wheels 1/2"

20шт.

43

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.), rear wheels

20шт.

47

A11988M

SCRAPER EXTENSION KIT (not illust.), rear wheels, Includes Ref: 48 - 50

1шт.

48

NSS

NOT SOLD SEPARAT

BRACE - R.H. scraper angle (Order A11877M), rear wheels

1шт.

49

NSS

NOT SOLD SEPARAT

BRACE - L.H. scraper angle (Order A11988M), rear wheels

1шт.

50

NSS

NOT SOLD SEPARAT

SPACER - scraper angle (Order A11988M), rear wheels

1шт.

51

A7105M

EXTENSION - steel rear wheel (54" x 8") (Machy. item - not illustrated)

2шт.

52

A7365M

EXTENSION - steel rear wheel (54" x 12") (Mchy. item - not illust.)

1шт.

53

557AA

LUGS - set of (28) street spade for wheel ext. (Mchy. item - not illustrated), rear

1шт.

54

O2802AB

LUG - 6" steel spade (See 489A or 557A), rear wheels

1шт.

55

O1959AB

STRAP - tie, steel rear wheel (not illustrated)

14шт.
