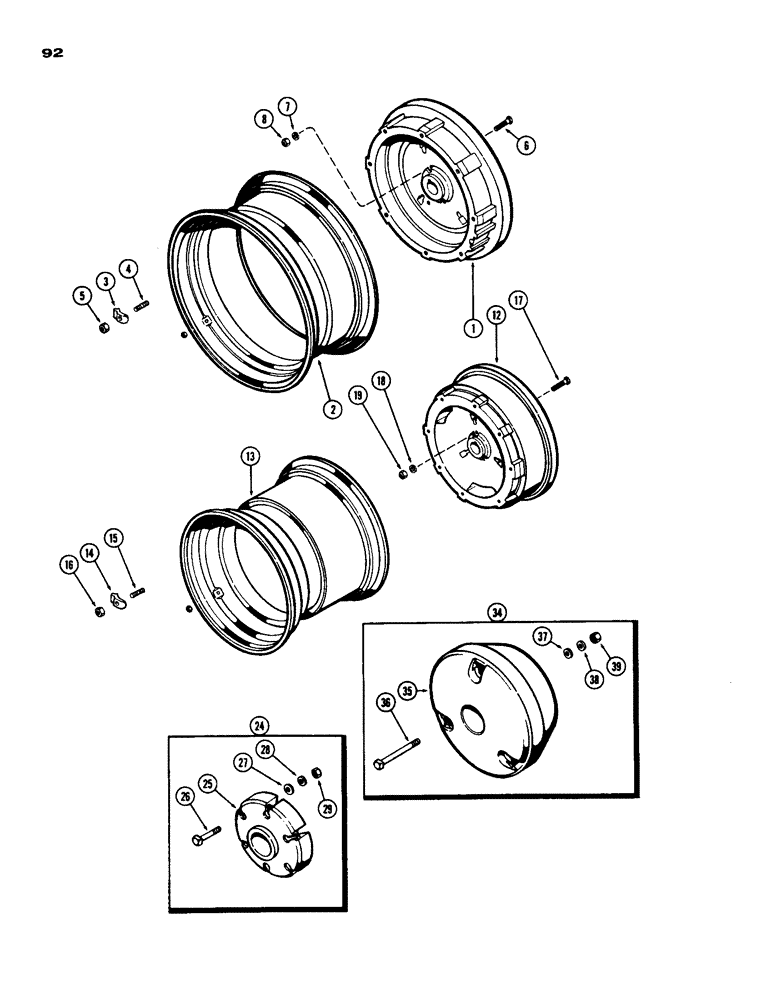

Запчасти Case IH 930-SERIES (092) - STANDARD REAR WHEELS (06) - POWER TRAIN

1

A11343

WHEEL - center disc

2шт.

2

A10693

RIM

(For 18.4/15 x 34 tire)

2шт.

2

O10390

RIM - (takes 14 x 34 tire)

2шт.

3

O5698AB1

X

CLAMP -, Serial Range: rim-wheel

16шт.

4

O7223AB

X

STUD - clamp (5/8" N.C. x 2-7/16")

16шт.

5

O7243AB

X

NUT - clamp stud (5/8" N.C. hex)

16шт.

6

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel Hex, 5/8"-11 x 2 1/2", G5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

25-1010

NUT,5/8"-11, G5

4шт.

12

A11348

WHEEL - center disc

2шт.

13

A8736

RIM (Takes 23.1/18 x 26 tire)

2шт.

14

O5698AB1

X

CLAMP -, Serial Range: rim-wheel

16шт.

15

O7223AB

X

STUD - clamp (5/8" N.C. x 2-7/16")

16шт.

16

O7243AB

X

NUT - clamp stud (5/8" N.C. hex.)

16шт.

17

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel Hex, 5/8"-11 x 2 1/2", G5

4шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

25-1010

NUT,5/8"-11, G5

4шт.

24

A1040AA

WEIGHT KIT (Set of 2), rear wheel, Includes Ref: 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

WEIGHT (150 lbs.) (Order A104AA), rear wheel

2шт.

26

17-1272

BOLT (MACHINE)

BOLT - weight (3/4 x 4-1/2" N.C. sq. hd.), rear wheel

6шт.

27

O1532AB

WASHER - (25/32 x 1-9/16" x 10 Ga.), rear wheel weights

6шт.

28

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear wheel weights 3/4"

6шт.

29

25-1012

NUT,3/4"-10, G5

Rear wheel weights 3/4"-10, G5

6шт.

34

2724AA

WEIGHT KIT (Set of 2), rear wheel, Includes Ref: 35 - 39

1шт.

35

NSS

NOT SOLD SEPARAT

WEIGHT (690 lbs.) (Order 2724AA), rear wheel

2шт.

36

17-12144

BOLT - weight (3/4 x 9" N.C. sq. hd.), rear wheel

6шт.

37

O1532AB

WASHER - (25/32 x 1-9/16" x 10 Ga.), rear wheel weights

6шт.

38

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear wheel weights 3/4"

6шт.

39

25-1012

NUT,3/4"-10, G5

Rear wheel weights 3/4"-10, G5

6шт.
