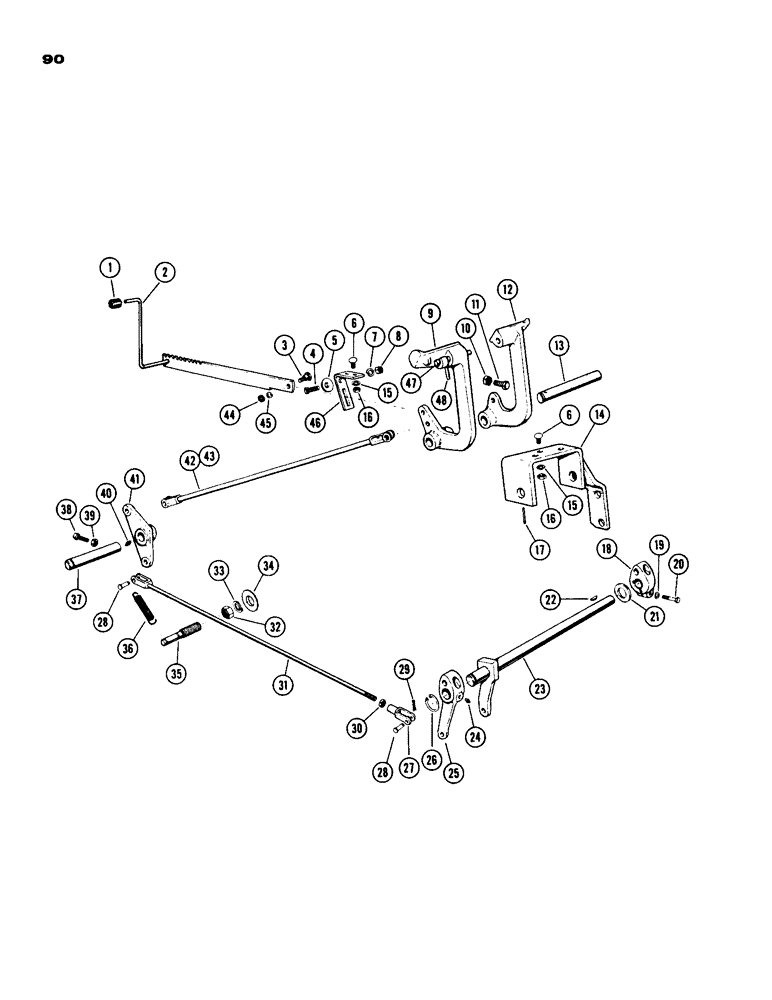

Запчасти Case IH 930-SERIES (090) - BRAKE PEDALS AND LINKAGE (06) - POWER TRAIN

1

A23953

TIP

brake pedal ratchet lever

1шт.

2

A23829

RATCHET brake, and lever

1шт.

3

A23824

STUD

brake ratchet pivot

1шт.

4

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

3/8" x 1" N.F. hex

1шт.

5

O7183AB

X

PAWL - brake pedal ratchet

1шт.

6

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

5шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex

1шт.

9

A23822

PEDAL foot brake, R.H.

1шт.

10

25-156

JAM NUT,Jam, 3/8"-24, G5

3/8" N.F. hex. jam

4шт.

11

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

3/8" N.F. hex.

2шт.

12

A23823

PEDAL foot brake, L.H.

1шт.

13

A23825

STUD brake pivot

1шт.

14

A23832

BRACKET - brake pedal pivot pin

1шт.

15

92-6

LOCK WASHER,3/8"

5шт.

16

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

5шт.

17

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, 3/16" x 1 3/4", Slotted

1шт.

18

6170A

LEVER diff. brake L.H.

1шт.

19

92-8

LOCK WASHER,1/2"

1шт.

20

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2" x 1-3/4" N.C. hex

1шт.

21

D24516

WASHER

diff, brake cross shaft (Replaces O7607AB)

1шт.

22

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

23

3978AA

SHAFT diff. brake cross & lever

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING 1/8" str. Lincoln

1шт.

25

6106A

LEVER diff. brake R.H.

1шт.

26

O6090AB

X

"E" RING - retaining diff. brake cross shaft

1шт.

27

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - lower brake rod

2шт.

28

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

8шт.

29

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

30

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

2шт.

31

O8775AB

ROD brake, lower

2шт.

32

25-1112

NUT,3/4"-16, G5

3/4" N.F. hex

1шт.

33

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

34

O8729AB

X

WASHER housing stud

1шт.

35

O877AB

STUD brake pedal return spring anchor

1шт.

36

A24051

SPRING

brake pedal return

2шт.

37

O8770AB

PIN fulcrum, diff, brake pedal

1шт.

38

85-620

SCREW set, 3/8" x 1-1/4" N.C. sq. hd. cup pt

1шт.

39

25-106

NUT,3/8"-16, G5

3/8" N.C. hex

1шт.

40

217-14

TEE,1/2"-14 NPTF Fem

FITTING 1/4" str. drive

2шт.

41

A23828

LEVER brake rod pivot, rear

2шт.

42

A23826

ROD brake, upper R.H.

1шт.

43

A23827

ROD brake, upper, L.H.

1шт.

44

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

A23836

BRACKET brake ratchet

1шт.

47

O6698AB

PIN - lock, brake pedals

1шт.

48

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Brake lock stop 1/8" x 3/8", Slotted

1шт.
