Запчасти Case IH 930-SERIES (088) - DIFFERENTIAL SHAFT AND BRAKES (06) - POWER TRAIN

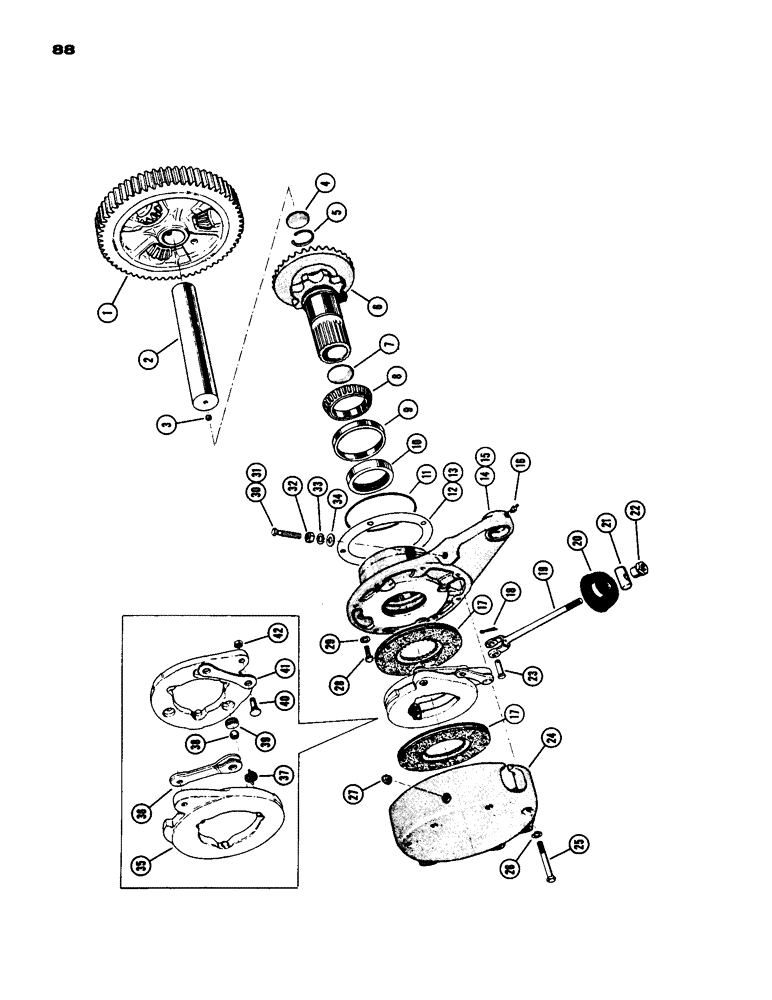

Схема запчастей Case IH 930-SERIES - (088) - DIFFERENTIAL SHAFT AND BRAKES (06) - POWER TRAIN
38
17
32
12
27
35
11
30
28
39
28
7
5
15
19
23
9
3
25
21
24
14
41
28
16
36
34
8
18
22
6
20
40
17
1
31
10
2
37
42
13
4
33

Артикул

Название

Примечание

Количество

A9451

WHEEL diff. center (Use A9453)

1шт.

1

A9453

GEAR ring assem. Consists of: 1-ctr. wheel 1-ring gear, 3 pinions & 3 pinion pins

1шт.

2

3976AA

SHAFT diff. w/07210AB balls

1шт.

3

211-13

BALL,1/2" Dia

- thrust diff. shaft 1/2" Dia

2шт.

4

O8757AB

X

PLATE sft. brg.

2шт.

5

O8758AB

X

RING brg. plate retainer

2шт.

6

O9413AB

GEAR - w/8 tooth sprocket (Prior 8222407) (Order A24627)

1шт.

6

A24627

GEAR - diff. (See A24328) (SN8222407 & after)

2шт.

6

A24628

GEAR AND PLUG - differential (Order A24627)

1шт.

7

A22934

PLUG - expansion (Prior SN8222407) (Use w/A24628)

2шт.

7

A24626

CUP

PLUG cup (use w/A24627)

2шт.

8

O7327AB

X

CONE brg. (Timken #27690)

2шт.

9

O7069AB

X

CUP brg. (Timken #27620)

2шт.

10

O8759AB

X

OIL SEAL diff. brg. tandem

2шт.

11

O8818AB

X

"O" RING bearing carrier

2шт.

12

A11221

SHIM diff. sft. brg. carrier (.003")

1шт.

13

A11222

SHIM diff. sft. brg. carrier (.010")

7шт.

14

6094A

CARRIER brg. R.H.

1шт.

15

6095A

CARRIER bearing L.H.

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING 1/8" straight Lincoln

2шт.

17

3973AA

X

DISC middle, w/brake lining

4шт.

18

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

19

O8763AB

X

ROD pull, diff. brake

2шт.

20

O8762AB

X

CAP diff. brake dust

2шт.

21

O8764AB

X

TRUNNION diff. brake pull rod

2шт.

22

O8765AB

X

NUT diff. brake pull rod

2шт.

23

O2499AB1

X

PIN yoke end

2шт.

24

6069A

COVER diff. brake

2шт.

25

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

14шт.

26

92-8

LOCK WASHER,1/2"

1шт.

27

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PIPE PLUG 3/8" sq. hd.

2шт.

28

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

29

92-8

LOCK WASHER,1/2"

8шт.

30

A10107

SPARE PART

BOLT diff. brake brg. carrier anchor, R.H.

1шт.

31

O8761AB

BOLT diff. brake brg. carrier anchor, L.H.

1шт.

32

25-118

NUT,1/2"-20, G5

1/2" N.C. hex

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

95-8

WASHER,1/2"

- standard 1/2"

4шт.

35

6097A

X

DISC diff. brake actuating (Their #BP776)

2шт.

36

O8782AB

X

LINK yoke, actuating disc

2шт.

37

O8780AB

X

SPRING actuating disc

6шт.

38

211-15

BALL,5/8" Dia

- steel (5/8") for actuating disc

6шт.

39

O8295AB

X

INSERT actuating disc

12шт.

40

O8783AB

X

BOLT - actuating disc. link

4шт.

41

O8781AB

X

LINK single, actuating disc

2шт.

42

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex

4шт.

4046AA

X

LINING - brake set of (2) w/rivets for 3973AA disc

4шт.
