Запчасти Case IH 930-SERIES (086) - BELT PULLEY (06) - POWER TRAIN

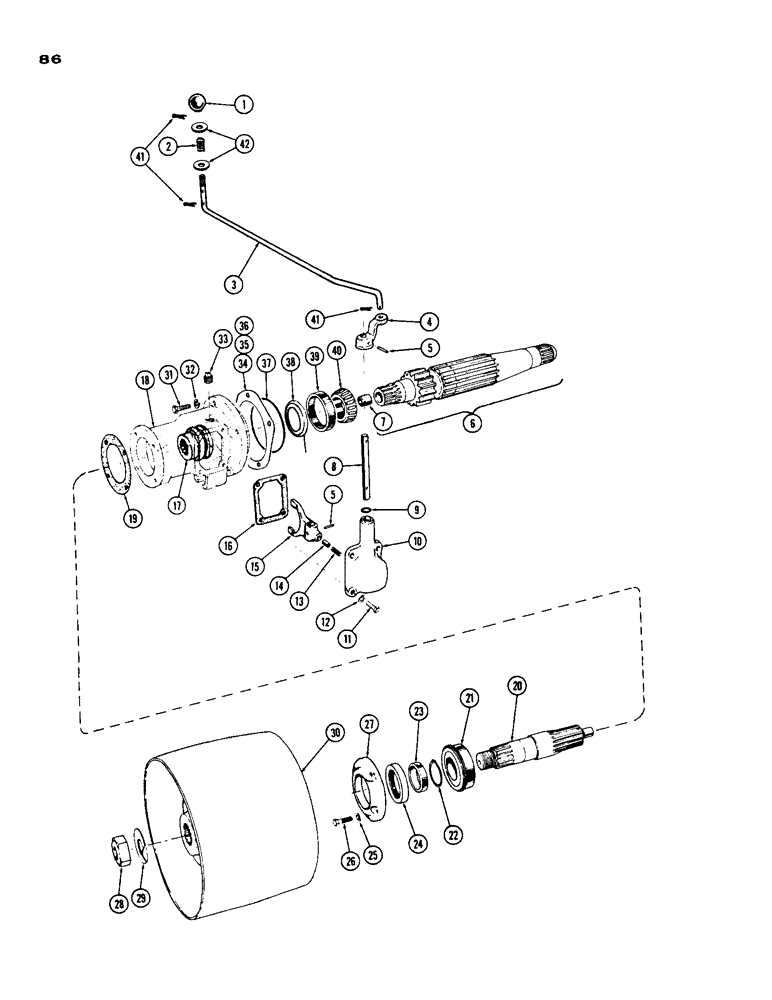

Схема запчастей Case IH 930-SERIES - (086) - BELT PULLEY (06) - POWER TRAIN
31
14
11
27
5
33
17
3
18
5
8
42
29
21
34
12
30
13
38
26
15
25
7
20
1
28
2
6
22
35
40
16
23
41
19
37
39
41
32
9
4
36
10
24

Артикул

Название

Примечание

Количество

1

A23885

KNOB

belt pulley clch. control rod

1шт.

2

A23969

SPRING

clutch control rod

1шт.

3

A23674

ROD belt pulley clch. control

1шт.

4

A23673

LEVER belt pulley clutch

1шт.

5

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

6

A21315

SHAFT

1st. reduction, w/09028AB bushing

1шт.

7

O9028AB

X

BUSHING 1st. reduction shaft

1шт.

8

A10103

SHAFT belt pulley clutch fork

1шт.

9

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING belt pulley clutch shaft fork (Replaces VT2983)

1шт.

10

A10100

HOUSING belt pulley clutch

1шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A7032

SPRING

belt pulley clch. detent plunger

1шт.

14

A7422

PLUNGER belt pulley clutch detent

1шт.

15

A10102

FORK belt pulley clutch

1шт.

15

A10101

GASKET belt pulley clutch hsg.

1шт.

17

A10099

SLEEVE belt pulley clutch sliding

1шт.

18

A10090

HOUSING belt pulley drive

1шт.

19

A10092

GASKET belt pulley drive hsg. end cap

1шт.

20

A10093

SHAFT belt pulley drive

1шт.

21

A10094

BEARING belt pulley drv. sft. (ND45509)

1шт.

22

A7147

SNAP RING,#177, Ext

Ring, Snap, , belt pulley drive shaft brg. #177, Ext

1шт.

23

A10095

SLEEVE belt pulley drv. sft.

1шт.

24

A10096

SEAL

OIL SEAL belt pulley drv. hsg sft

1шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

27

A10091

CAP belt pulley drv. hsg. end

1шт.

28

25-1522

NUT 1-3/8" N.C. hex. Jam, 1 3/8"-12, G5

1шт.

29

A10097

LOCKWASHER belt drv. sft. nut

1шт.

30

A21548

PULLEY belt

1шт.

31

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

32

92-8

LOCK WASHER,1/2"

4шт.

33

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PIPE PLUG - 1/2" sq. hd.

2шт.

34

O495AB

SHIM - belt pulley shaft brg. carrier (.003")

1шт.

REF#34 SHOULD USE A26816

1шт.

35

A10003

SHIM - belt pulley sft. brg. carrier (.005")

1шт.

36

A10004

SHIM - belt pulley sft. brg. carrier (.015")

1шт.

37

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING belt pulley drv. hsg.

1шт.

38

A10098

PLATE belt pulley drv. hsg. oil baffle

1шт.

39

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP belt pulley sft. brg. (Timken #3720) (Replaces O2879AB)

1шт.

40

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE belt pulley sft. brg. (Timken #3767)

3шт.

41

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

42

195-33

WASHER,1/2"

plain 1/2"

2шт.

Выбрано товаров: 43
