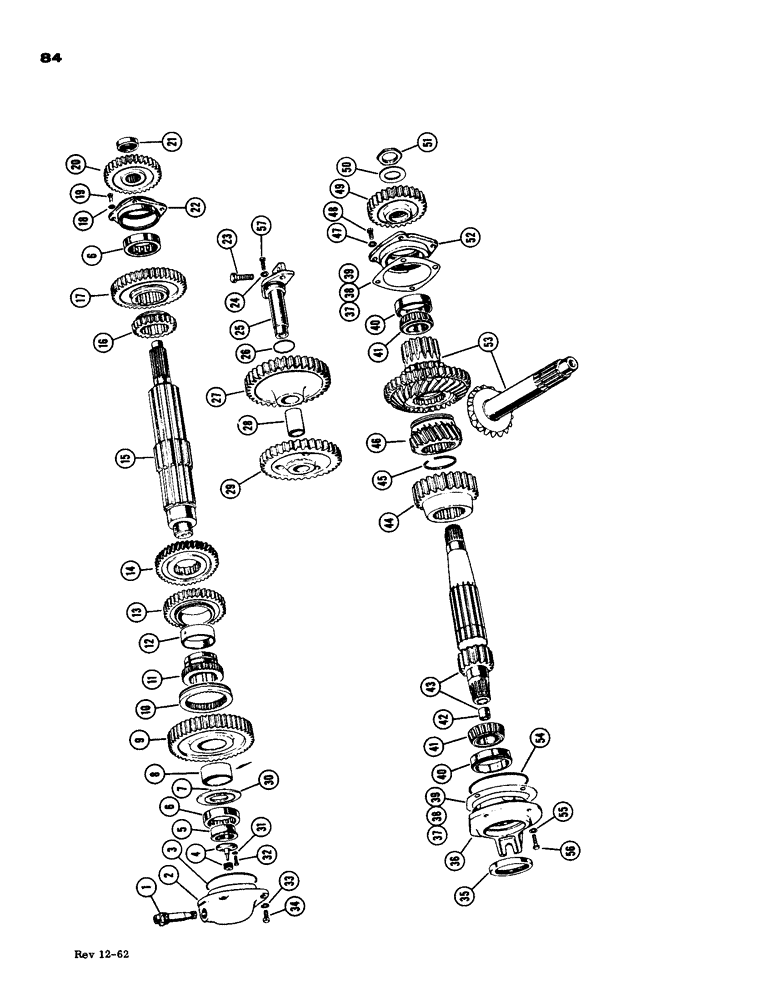

Запчасти Case IH 930-SERIES (084) - TRANSMISSION GEAR TRAIN ASSEMBLY (06) - POWER TRAIN

1

A11341

GEAR

speedometer driven

1шт.

2

A11342

CARRIER sliding gear shaft brg.

1шт.

3

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sliding gear brg. carrier

1шт.

4

A11340

GEAR

AND SHAFT speedometer assembly

1шт.

5

A9996

RACE sliding gear sft. brg, inner (Hyatt R1310)

2шт.

6

A9997

BALL BEARING

BEARING sliding gear sft. (Hyatt 1310YS)

2шт.

7

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

1шт.

8

A9892

BUSHING 1st. speed gear

1шт.

9

A21334

GEAR 1st speed, w/A9892 bushing

1шт.

10

A21325

SLEEVE 1st and 4th gear

1шт.

11

A21326

COLLAR 4th speed brg. clutch

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - 4th speed gear (Order A21327)

1шт.

13

A21327

GEAR - 5th speed sliding, w/bushing

1шт.

14

A34177

GEAR

- 3rd. speed helical sliding

1шт.

A21329

X

GEAR - 3rd speed (Order A34176 & A34177)

1шт.

15

A21324

SHAFT sliding gear

1шт.

16

A21330

GEAR 6th speed sliding

1шт.

17

A21331

GEAR 2nd speed & reverse sliding

1шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

20

A21332

GEAR 5th speed sliding

1шт.

21

O3869AB

X

OIL SEAL sliding gear shaft

1шт.

22

A9951

CARRIER sliding gear sft. brg. L.H.

1шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2" x 1-3/4" N.C. hex.

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

A23036

SHAFT reverse idler gear

1шт.

26

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING reverse gear shaft

1шт.

27

A21321

GEAR reverse idler w/A7939 bushing

1шт.

28

A7939

BUSHING reverse idler gear

1шт.

29

A10007

GEAR trans. oil thrower

1шт.

30

A9994

WASHER

first speed gear retaining

1шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

3/8" x 1" N.F. hex

2шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

35

O3873AB

X

OIL SEAL bearing carrier

1шт.

36

A20326

CARRIER bearing 1st reduction sft. R.H. (Includes 02879AB bearing cup)

1шт.

37

O4695AB

SHIM - 1st reduction sft. brg. carrier (.003")

1шт.

38

A10003

SHIM 1st. reduction sft. brg. carrier (.005")

1шт.

39

A10004

SHIM 1st. reduction sft. carrier (.010")

1шт.

40

O2879AB

X

CUP 1st reduction sft. brg (Timken #3720)

2шт.

41

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE 1st. reduction sft. brg

2шт.

42

O9028AB

X

BUSHING - 1st. reduction shaft

1шт.

43

A21315

SHAFT

1st. reduction, w/0902AB bushing

1шт.

44

A21320

PINION 4th speed

1шт.

45

A10000

SNAP RING,#306, Ext

Ring, Snap, , fourth speed pinion #306, Ext

1шт.

46

A34176

GEAR

- 3rd. speed helical

1шт.

A23634

X

GEAR - 3rd. sliding (Order A34176 & A34177)

1шт.

47

92-8

LOCK WASHER,1/2"

4шт.

48

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

49

A21323

PINION 5th speed

1шт.

50

A10005

WASHER

LOCKWASHER 5th speed pinion retaining nut

1шт.

51

A10006

NUT 5th speed pinion retaining

1шт.

52

A9953

CARRIER 1st reduction sft. brg. L.H.

1шт.

53

A22440

PINION & GEAR SET - trans. drive (Matched set)

1шт.

54

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING 1st. reduction sft. brg. carrier

1шт.

55

92-8

LOCK WASHER,1/2"

4шт.

56

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

57

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

reverse idler gear shaft

2шт.
