Запчасти Case IH 930-SERIES (082) - TRANSMISSION CASE AND REAR AXLES (06) - POWER TRAIN

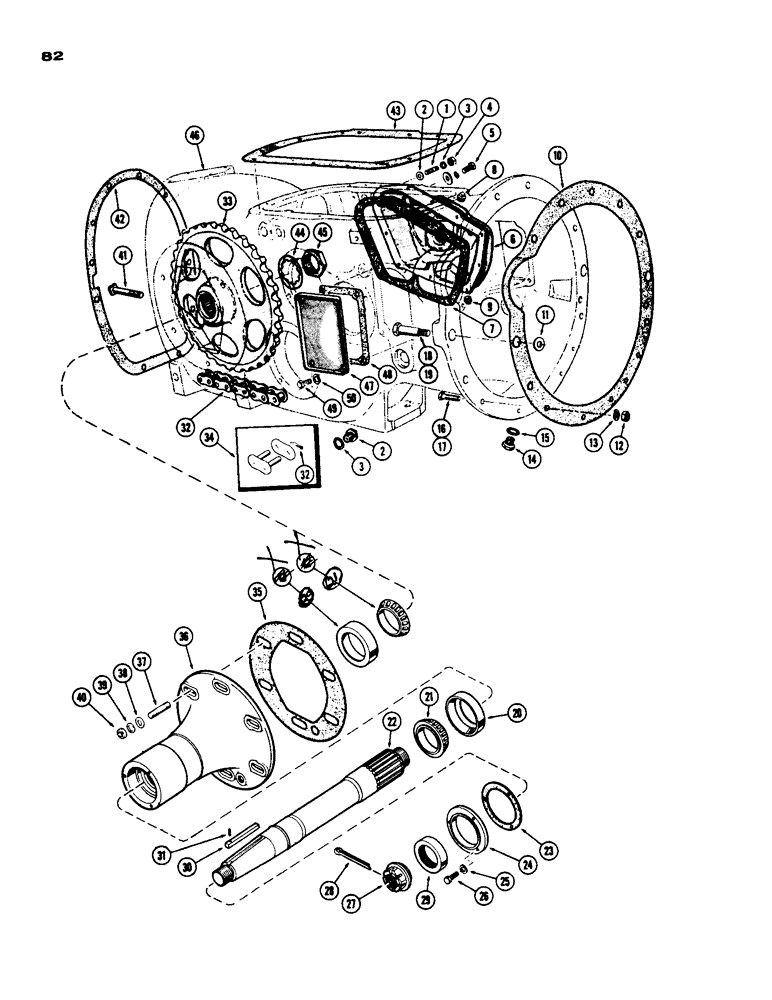

Схема запчастей Case IH 930-SERIES - (082) - TRANSMISSION CASE AND REAR AXLES (06) - POWER TRAIN
25
10
1
44
13
14
40
39
9
41
32
18
12
11
23
15
36
48
2
31
43
35
42
21
47
7
8
20
16
34
5
33
22
19
37
28
26
6
17
46
3
2
29
32
38
49
27
30
50
4
3
45
24

Артикул

Название

Примечание

Количество

1

A10029

STUD 5th speed gear hsg.

2шт.

2

A7085

WASHER

copper

10шт.

3

92-6

LOCK WASHER,3/8"

10шт.

4

25-146

JAM NUT,Jam, 3/8"-16, G5

3/8" N.F. hex

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

6

A10027

HOUSING 5th speed gear

1шт.

7

A24162

GASKET

5th speed gear hsg.

1шт.

8

221-13

PLUG,Sq Hd, 3/8"-18

3/8" sq. hd. pipe

1шт.

9

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG 1/2" sq. hd. pipe

1шт.

10

A24165

GASKET

trans. case to cyl. block

1шт.

11

195-46

WASHER,3/4" x 1 3/4" x .148"

11/16" plain

2шт.

12

25-110

POSTER

NUT 5/8" N.F. hex

5шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

14

A14280

PLUG

clutch hsg. & trans. drain

2шт.

15

O9844AB

X

WASHER clutch hsg. & trans. drain plug

2шт.

16

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

3шт.

17

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

2шт.

18

A23677

BOLT trans. to cyl. blk. flange, short

1шт.

19

A23678

BOLT trans. to cyl blk, flange, long

1шт.

20

O6123AB

X

CUP bearing (Timken #47621)

4шт.

21

O6124AB

X

CONE bearing (Timken #47686)

4шт.

22

A11331

X

SHAFT rear axle

2шт.

23

O4031AB

X

GASKET oil seal retainer

2шт.

24

5701A

RETAINER rear axle oil seal

2шт.

25

92-5

LOCK WASHER,5/16"

6шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

27

A23385

NUT

axle shaft, outer

2шт.

28

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

29

A11332

OIL SEAL

OIL SEAL rear axle

2шт.

30

A11333

KEY

rear axle

2шт.

31

VT4453

X

PIN - dowel, for A11333 key

2шт.

32

O9412AB

CHAIN roller, drv. (38 links of 2" pitch)

2шт.

33

6394A

SPROCKET drive

2шт.

34

4821AA

LINK conn. w/plate & pins for 09412AB

1шт.

35

A24164

GASKET

axle hsg.

2шт.

ILLUSTRATION PAGE REF#35.TO THE RIGHT OF ITEM 35,SHOWS CUP & CONE BEARING.USE REF# 20 & 21.

1шт.

36

6100A

HOUSING rear axle

2шт.

37

O9730AB

X

STUD housing

11шт.

38

O8729AB

X

WASHER housing stud

8шт.

39

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

40

25-110

POSTER

NUT 5/8" N.F. hex

8шт.

41

O3441AB

BOLT rear axle adjusting

2шт.

42

A24163

GASKET

1шт.

REF 43 & 42 ARE OKAY FOR THE ABOVE GASKET REPLACEMENTS.

1шт.

43

A10031

GASKET

1шт.

REF#43 & 42 ARE OKAY FOR THE ABOVE GASKET REPLACEMENTS.

1шт.

44

O6001AB

X

WASHER lock, axle shaft inner nut

2шт.

45

A23386

NUT

inner, axle shaft

2шт.

46

A24015

CASE transmission

1шт.

47

O1962AB

COVER transmission hand hole, R.H.

1шт.

48

A24012

GASKET

hand hole, cover

1шт.

49

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2" x 3/4" N.F. hex

4шт.

50

92-8

LOCK WASHER,1/2"

4шт.
