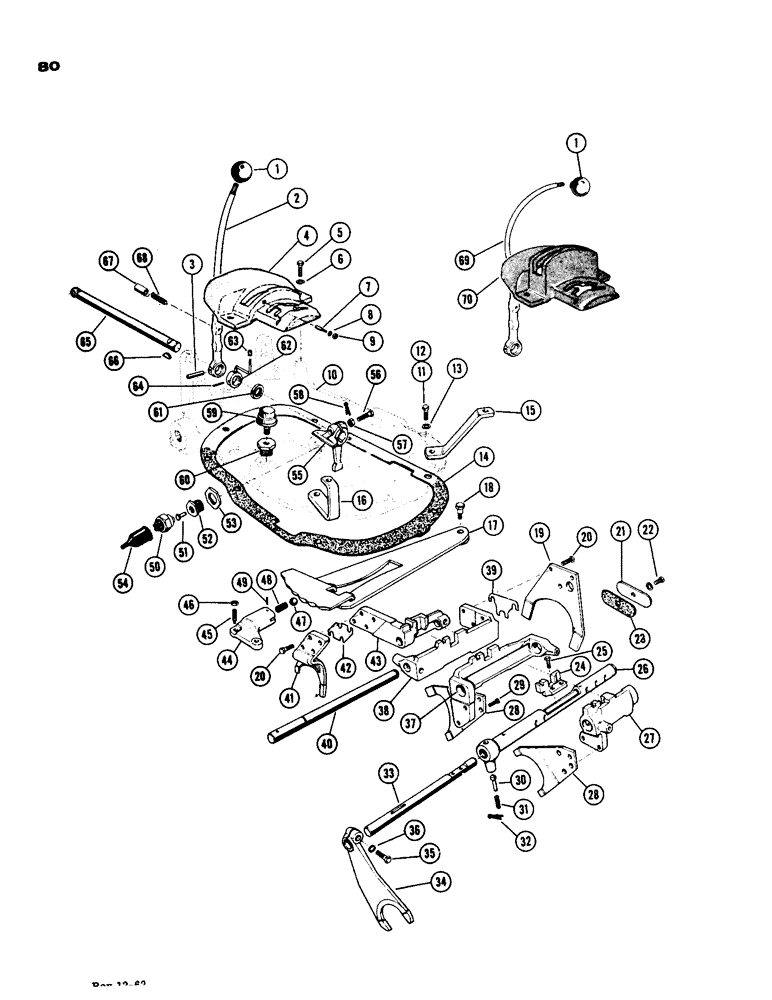

Запчасти Case IH 930-SERIES (080) - GEAR SHIFT PARTS (06) - POWER TRAIN

1

A23885

KNOB

BALL gear shift hand lever

1шт.

2

A23884

LEVER hand, gear shift, Serial Range: (Prior-SN82009971)

1шт.

3

138-2001

PIN,3/8" x 1 3/4", Coiled

1шт.

4

A23887

BRACKET gear shift ha. lvr. (Prior, SN8209971) (use A24465 & A24554 when depleted)

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

7

A20437

PIN gear shift ha. lvr. brkt. (Prior, SN8209971)

1шт.

8

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - 1/4" Shkprf. (Prior SN8209971)

1шт.

9

25-114

NUT,1/4"-28, G5

1/4" N.F. hex. (Prior, SN8209971)

1шт.

10

A23873

COVER transmission case top

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2" x 1-3/4" N.C. hex. hd.

1шт.

13

92-8

LOCK WASHER,1/2"

7шт.

14

A10031

GASKET

trans. top cover

1шт.

15

A23874

BRACE platform front R.H.

1шт.

16

A23875

BRACE platform front L.H.

1шт.

17

A9945

PLATE shift selector & lockout grille

1шт.

18

A9946

CAPSCREW gear shift selector plate

1шт.

19

A23580

FORK first and fourth gear

1шт.

20

A9936

SCREW 1st, 3rd & 4th gear shifter fork

7шт.

21

O1322AB

PLATE shifter shaft end

2шт.

22

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

23

O1323AB1

X

GASKET shifter shaft end plate

2шт.

24

A9925

SHIFTER fifth gear

1шт.

25

A9938

SCREW 5th gear shifter fork

2шт.

26

A24913

SHAFT - 2nd, 6th & reverse gear shifter

1шт.

27

A21539

SHIFTER 6th gear

1шт.

28

A23581

FORK 2nd, 6th & reverse speed shifter

2шт.

29

A9937

SCREW 2nd, 6th & reverse gear shifter fork

4шт.

30

O995AB

PLUNGER gear shifter

5шт.

31

A11219

SPRING gear shifter

5шт.

32

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

5шт.

33

A21543

SHAFT fifth gear shifter

1шт.

34

A9935

FORK fifth gear shifter

1шт.

35

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

7/16" x 1-1/4" N.F. hex. hd.

1шт.

36

92-7

LOCK WASHER,7/16"

1шт.

37

A9923

SHIFTING UNIT

SHIFTER 2nd and reverse gear

1шт.

38

A9922

SHIFTER 1st and 4th gear

1шт.

39

A9939

SHIM 4th gear shifter

1шт.

40

A23631

SHAFT 1st, 3rd, & 4th gear shifter

1шт.

41

A23633

FORK 3rd, gear shifter

1шт.

42

A21541

SHIM 3rd. gear shifter

1шт.

43

A23632

SHIFTER 3rd. gear

1шт.

44

A9940

HOUSING interlock ball

1шт.

45

A21544

SCREW interlock ball hsg.

2шт.

46

25-106

NUT,3/8"-16, G5

3/8" N.C. hex

2шт.

47

211-13

BALL,1/2" Dia

steel, interlocking hsg. 1/2" Dia

1шт.

48

A33749

SPRING

- interlock ball

1шт.

49

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Interlock ball 1/8" x 3/8", Slotted

1шт.

50

A20990

SWITCH

- safety, neutral start

1шт.

51

A21394

PIN neutral switch button

1шт.

52

A21393

NUT adjustment, neutral switch

1шт.

53

A20989

LOCK NUT

switch adjustment nut

1шт.

54

A20991

BOOT

dust seal, neutral switch

1шт.

55

A23879

ARM shifter, & neutral switch contact bar

1шт.

56

O1467AB

BOLT gear shifter arm

1шт.

57

25-236

SLOTTED NUT,3/8"-24, G5, Thk

NUT 3/8" N.F. hex. castle

1шт.

58

132-90

COTTER PIN - 3/16" x 1-3/4"

1шт.

59

O7166AB

X

BREATHER transmission

1шт.

60

A23877

PLUG transmission breather

1шт.

61

O5187AB

X

OIL SEAL gear shifter shaft

1шт.

62

A23880

INDICATOR

gear shift

1шт.

63

A23883

KNOB

gear shift indicator pointer

1шт.

64

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

64

A23878

SHAFT gear shift hand lever

1шт.

65

A23878

SHAFT gear shift hand lever

1шт.

66

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

67

A10903

PLUNGER

lock, gear shift hand lever

1шт.

68

A23886

SPRING

gear shift ha. lvr. lock plunger

1шт.

69

A24465

LEVER ha., gear (SN8209971 & after)

1шт.

70

A24466

BRACKET - shift ha. lvr. (SN8209971 & after)

1шт.
