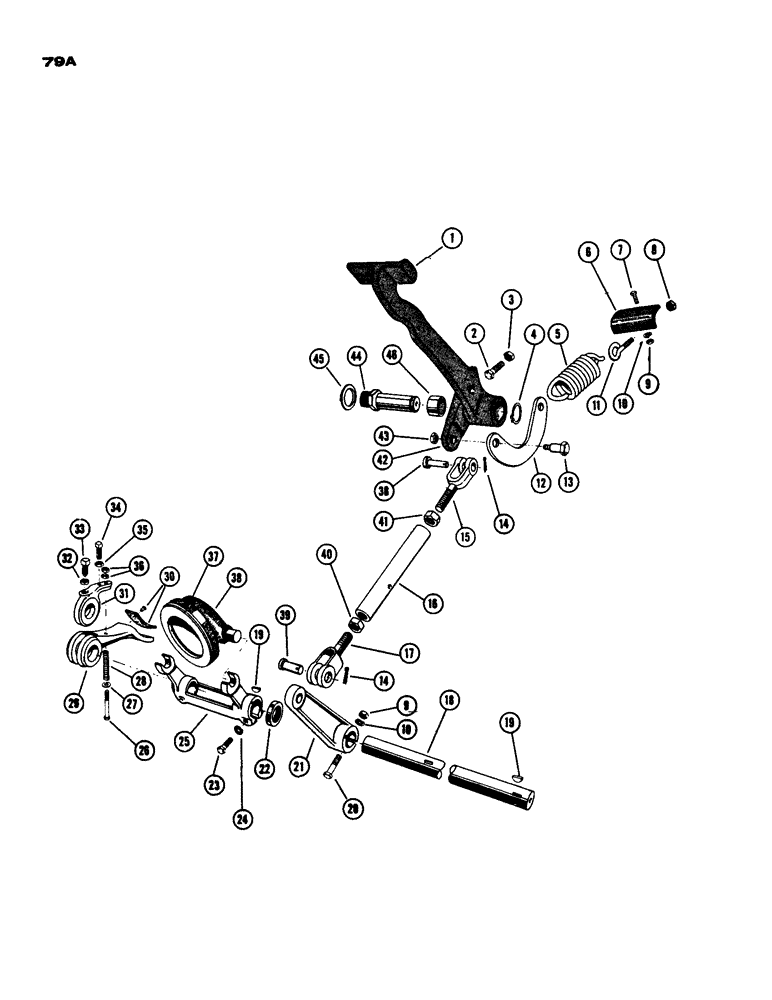

Запчасти Case IH 930-SERIES (079A) - FOOT CLUTCH (06) - POWER TRAIN

1

A24186

PEDAL foot clutch

1шт.

2

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

1шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

3/8" N.F. hex. jam

1шт.

4

O3721CH

X

SNAP RING clutch pedal

1шт.

5

A24191

SPRING clutch pedal helper

1шт.

6

A24193

BRACKET clutch pedal spring

1шт.

7

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2" x 1-1/4" N.F. hex

2шт.

8

25-115

NUT,5/16"-24, G5

5/16" NF hex

2шт.

9

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

3шт.

10

92-8

LOCK WASHER,1/2"

3шт.

11

A24192

EYE BOLT clutch pedal spring

1шт.

12

A24190

LINK clutch pedal spring

1шт.

13

O8053AB

X

BOLT pedal spring link

1шт.

14

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

15

A24495

CLEVIS

clutch throwout rod, L.H. thread

1шт.

16

A24494

ROD clutch throwout

1шт.

17

A23819

CLEVIS clutch throwout rod, R.H. tread

1шт.

18

A24195

SHAFT clutch throwout

1шт.

19

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

20

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2" x 2-1/2" N.F. hex

1шт.

21

A24194

LEVER clutch throwout

1шт.

REFERENCE THE ILLUSTRATION PAGE. REF#21 & 22,BETWEEN THESE ITEM THERE IS A BEARING, PART IS T15025

1шт.

22

A24122

OIL SEAL

OIL SEAL clutch throwout shaft (Replaces O10846AB)

2шт.

SHOULD READ A24122, I.D.1 1/4"

1шт.

REFERENCE THE ILLUSTRATION PAGE. REF#21 & 22,BETWEEN THESE ITEM THERE IS A BEARING, PART IS T15025

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8" x 1-1/2" N.C. hex

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

A24119

YOKE

clutch throwout

1шт.

26

16-564

BOLT 5/16" x 4"

1шт.

27

195-21

WASHER,5/16"

plain 5/16"

1шт.

28

O3282AB

SPRING brake shoe adjusting

1шт.

29

A24196

SHOE clutch brake, with lining and rivets

1шт.

30

A21104

LINING

brake shoe, includes rivets

1шт.

31

A24198

COLLAR clutch brake adjusting

1шт.

Item#31 per Marcia Valley is a valid part number - we have a drawing on it - it is not a service part through service parts.

1шт.

32

25-146

JAM NUT,Jam, 3/8"-16, G5

3/8" N.C. hex. jam

1шт.

33

85-624

SCREW 3/8" x 1-1/2" N.C. cup pt. set

1шт.

34

O1498AB

SCREW set, adjusting collar

1шт.

35

25-148

JAM NUT,Jam, 1/2"-13, G5

1/2" NC hex jam

1шт.

36

25-115

NUT,5/16"-24, G5

5/16" NF hex

2шт.

37

A24340

SLEEVE

clutch release bearing

1шт.

38

O10004AB

X

BEARING clutch release

1шт.

39

O10303AB

X

PIN yoke

2шт.

40

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT 5/8" N.F. hex. jam, R.H. thread

1шт.

41

129-367

NUT,Jam, 5/8"-18, G5, LH

5/8" N.F. hex. jam, L.H. thread

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

25-156

JAM NUT,Jam, 3/8"-24, G5

3/8" N.F. hex. jam.

1шт.

44

A24187

STUD clutch pedal

1шт.

45

195-53

WASHER,1" x 2" x .134"

1" SAE plain

1шт.

46

O2306BD

X

BEARING needle, Clutch pedal (Torrington No. B168-OH)

2шт.
