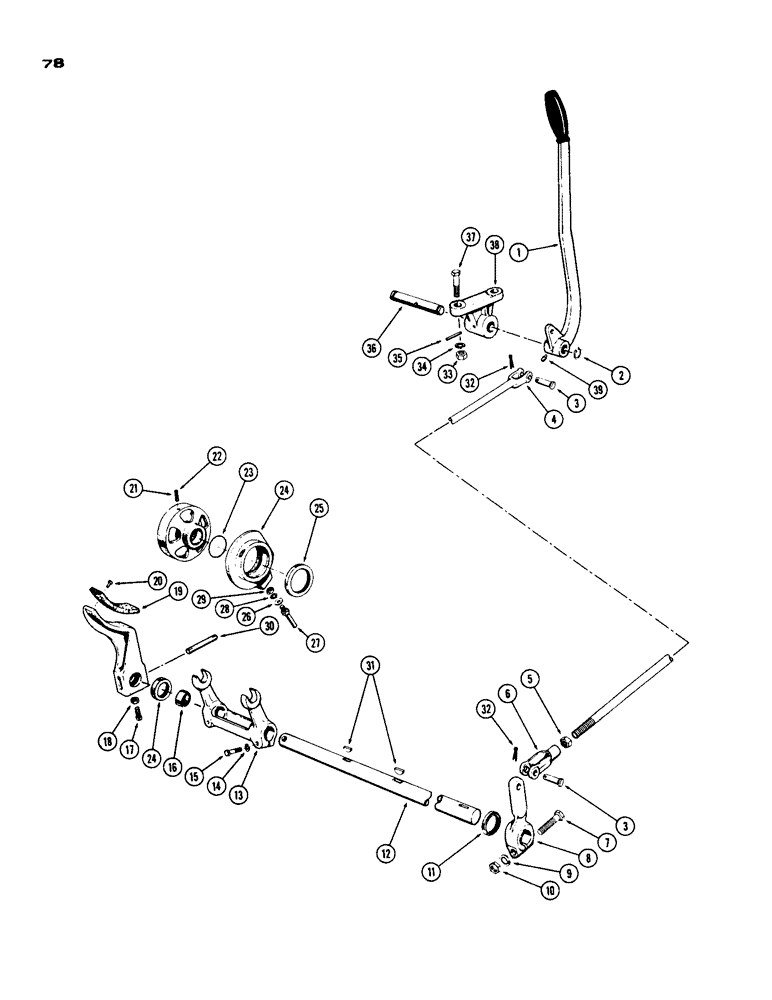

Запчасти Case IH 930-SERIES (078) - CLUTCH THROWOUT (06) - POWER TRAIN

1

A23814

LEVER hand, clutch throwout

1шт.

2

O9640AB

X

"E" RING clutch throwout lever stud

1шт.

3

O10303AB

X

PIN clutch throwout rod

2шт.

4

A23817

ROD clutch throwout

1шт.

5

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT 5/8" N.F. hex

1шт.

6

A23819

CLEVIS adjustable clutch throwout

1шт.

7

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2" x 2-1/2" N.F. hex

1шт.

8

A24117

LEVER clutch throwout shaft

1шт.

9

92-8

LOCK WASHER,1/2"

1шт.

10

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

1шт.

11

A24122

OIL SEAL

OIL SEAL clutch throwout shaft

2шт.

FOR 1 1/4" SHAFT

1шт.

12

A24118

SHAFT clutch throwout

1шт.

13

A24119

YOKE

clutch throwout

1шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8" x 1-1/2" N.C. hex

2шт.

16

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING needle, clutch throwout shaft

2шт.

FOR 1 1/4" SHAFT

1шт.

17

181-649

SCREW set 3/8" x 1-1/2" N.C. sq. hd. flat pt.

1шт.

18

25-146

JAM NUT,Jam, 3/8"-16, G5

3/8" N.C. hex. jam

2шт.

19

A24120

SHOE brake, w/linings and rivets

1шт.

20

A21104

LINING

brake shoe, includes rivets

1шт.

21

A20311

PULLEY brake, w/2-A9906 screws

1шт.

22

A9906

X

SCREW set

2шт.

23

O3523CK

X

"O" RING brake pulley

1шт.

24

A20326

CARRIER brg. 1st red. sft. R.H. (includes 02879AB cup)

1шт.

25

O3873AB

X

OIL SEAL brg. carrier

1шт.

26

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.

27

A20322

BOLT bearing carrier anchor

1шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

2шт.

30

135-799

GROOVE PIN 1/2" x 2" type 5

1шт.

31

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

32

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

33

25-1110

NUT,5/8"-18, G5

5/8" N.F. hex

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

36

A23816

SHAFT clutch throwout lever

1шт.

37

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

38

A23815

SUPPORT clutch throwout lever

1шт.

39

219-14

LUBE NIPPLE,1/4" NPTF

FITTING 1/4" straight drive

1шт.

A24460

DRUM 1st. reduction shaft brake (use A24459 washer to, Serial Range: attach-shaft

1шт.

A24459

WASHER 1st. reduction shaft brake (Use w/A- 24460 drum)

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

92-8

LOCK WASHER,1/2"

1шт.

A24461

WASHER brake drum (Use w/A20311 pulley)

1шт.
