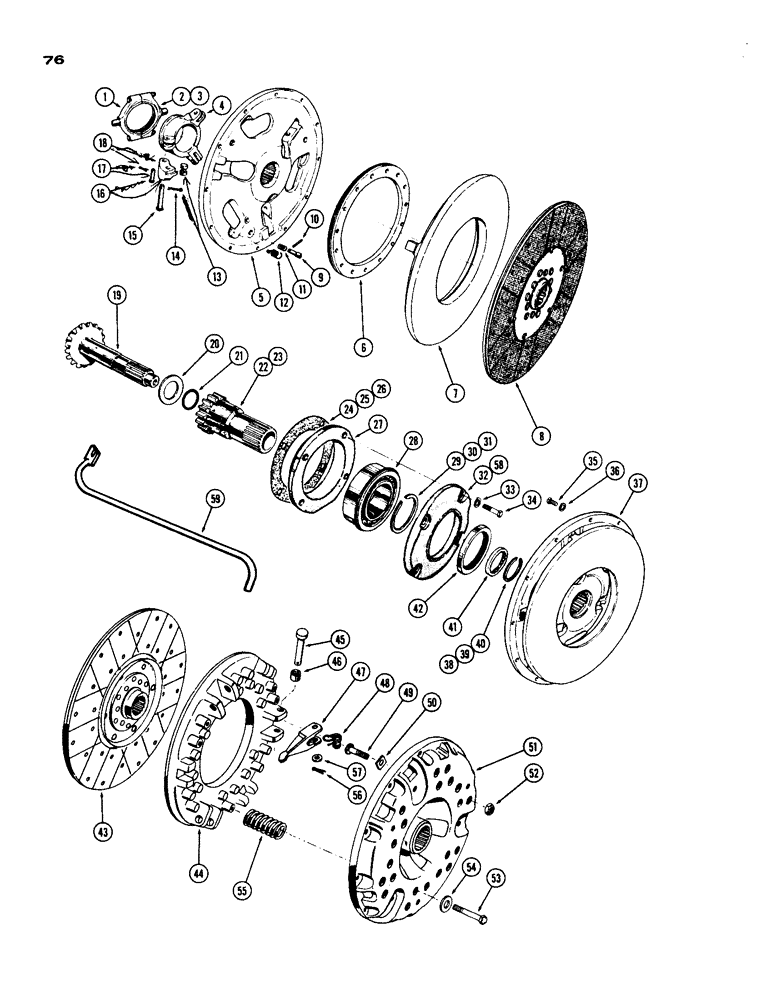

Запчасти Case IH 930-SERIES (076) - CLUTCH AND CLUTCH SHAFT (06) - POWER TRAIN

1

O7130A

SHIM clutch sliding sleeve collar

2шт.

2

A9886

COLLAR - clutch sliding sleeve (Use A9887)

1шт.

3

A9887

COLLAR

clutch sliding sleeve (Consists of 2- A9886, 2-A8364, 2-14-468 3/8" x 3" N.F. hex, bolts & 2-131-5 elastic stop nuts

1шт.

4

A9888

SLEEVE

clutch sliding

1шт.

5

A9920

PLATE clutch cover

1шт.

6

O9523AB

RING clutch adjusting

1шт.

7

A20948

PLATE clutch pressure

1шт.

8

A22895

LARGE PLATE

PLATE clutch driving with facings

1шт.

A22899

SPARE PART

FACINGS set of (2) clutch, w/rivets (30-3/16") x 15/32" for A22895 plate

1шт.

9

O9641AB

PIN clutch adjusting pin lock

1шт.

10

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , For 09641AB 1/8" x 1 1/4", Slotted

1шт.

11

O5839AB

X

SPRING clutch adjusting lock pin

1шт.

12

O7788AB

SPRING

clutch release

3шт.

13

O9522AB

ROLLER clutch lever

3шт.

14

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.

15

A10123

PIN clutch lever pivot

3шт.

16

O9517AB

LEVER clutch

3шт.

17

A10122

PIN clutch lever guide

3шт.

18

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.

19

A22440

SHAFT clutch (incl. pinion & trans. bevel gear)

1шт.

20

A11942

WASHER

clutch shaft and PTO thrust

1шт.

21

O9504AB

X

OIL SEAL - clutch shaft

2шт.

22

A20937

PINION PTO drv. and sleeve w/bushings (for 540 RPM PTO) (See A22308)

1шт.

23

A22308

PINION PTO drive and sleeve w/bushings (for 1000 RPM PTO) (See A20937)

1шт.

24

A20945

SHIM clutch shaft brg. carrier (.012")

4шт.

25

A20946

SHIM clutch shaft brg. carrier (.005")

3шт.

26

A20647

SHIM clutch shaft brg. carrier (.003")

2шт.

27

A20943

CARRIER clutch shaft brg., rear

1шт.

28

A33491

BEARING ASSY

BEARING - clutch shaft (ND45214W)

1шт.

29

A20940

RING, SNAP

SNAP RING clutch shaft brg. retaining (.112")

1шт.

30

A20941

RING, SNAP

SNAP RING clutch shaft brg. retaining (.1135")

1шт.

31

A20942

RING, SNAP

SNAP RING clutch shaft brg. retaining (.115")

1шт.

32

A20944

CARRIER clutch shaft brg., frt (Hand Clutch)

1шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1/2" x 1-1/2" N.C. hex

4шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

36

92-6

LOCK WASHER,3/8"

12шт.

37

A20951

CLUTCH complete, less drive plate (A22895)

1шт.

38

O9508AB

SNAP RING clutch shaft (.0835")

1шт.

39

A27758

SNAP RING

- clutch shaft (.0805" thk)

1шт.

40

O9510AB

X

SNAP RING cllutch shaft (.0765")

1шт.

41

O9506AB

X

COLLAR clutch shaft thrust

1шт.

42

A20939

OIL SEAL

clutch shaft

1шт.

43

A24329

LARGE PLATE

PLATE clutch drive, assem. w/facings (Foot Clutch)

1шт.

44

6295A

PLATE clutch pressure (Foot Clutch)

1шт.

45

O8090AB

X

PIN clutch release lvr. (Foot Clutch)

3шт.

46

O8087AB

X

BEARING needle, clutch release lvr. pin (Foot Clutch) (Replaces O807AB)

6шт.

47

O10000AB

X

LEVER clutch release (Foot Clutch)

3шт.

48

O10002AB

X

SPRING lock, clutch release lever adj. screw (Foot Clutch)

3шт.

49

O10001AB

X

SCREW clutch release lvr. adj (Foot Clutch)

3шт.

50

O10003AB

X

BLOCK clutch release lvr (Foot Clutch)

3шт.

51

A21833

PLATE clutch cover (Foot Clutch)

1шт.

52

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" N.F. hex. jam (Foot Clutch)

3шт.

53

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8" x 1-1/2" N.C. hex (Foot Clutch)

12шт.

55

O8095AB

X

SPRING clutch pressure (Foot Clutch)

24шт.

54

92-6

LOCK WASHER,3/8"

(Foot Clutch) 3/8"

12шт.

55

O8095AB

X

SPRING clutch pressure (Foot Clutch)

24шт.

56

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (Foot Clutch) 1/8" x 3/4"

3шт.

57

O3280A

WASHER clutch release lvr. pin (Foot Clutch)

3шт.

A21832

CLUTCH

complete, less A24329 drive plate (Foot Clutch)

1шт.

A24524

NO LONGER SERVICED

FACINGS SET OF (12) w/rivets for A24329 drive plate (Foot Clutch)

1шт.

58

A21838

CARRIER clutch shaft brg. frt. (Foot Clutch)

1шт.

59

O9342AB

TOOL - clutch adjusting

1шт.
