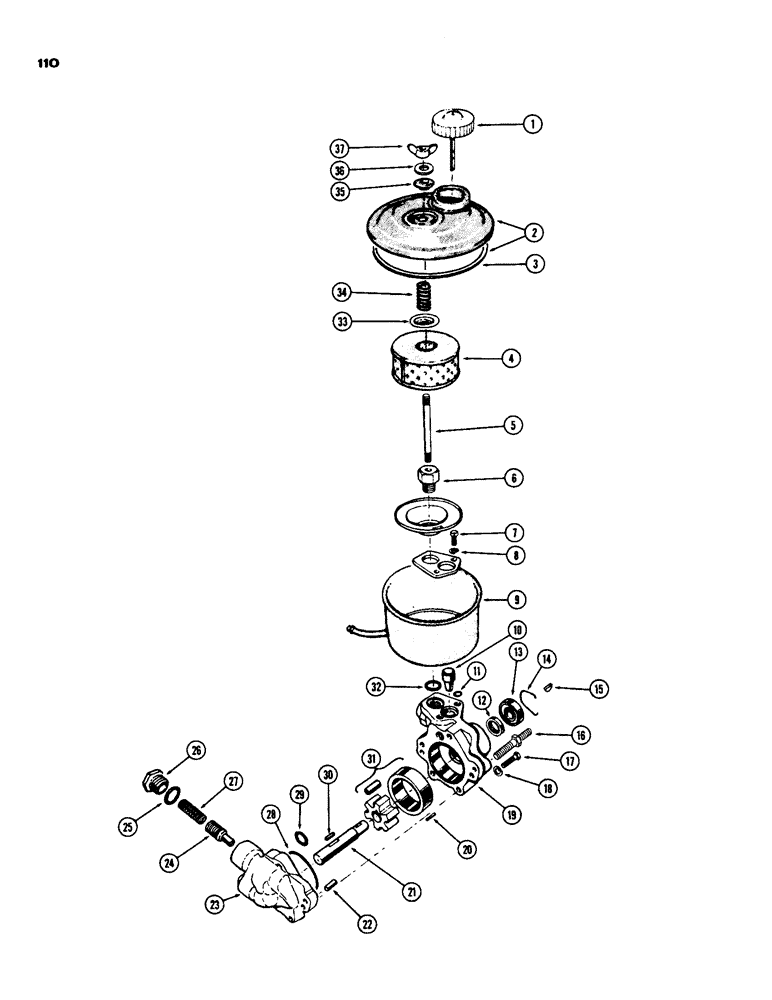

Запчасти Case IH 930-SERIES (110) - STEERING PUMP PARTS (05) - STEERING

1

A24137

GAUGE ASSY.

GAUGE filler, cap assembly

1шт.

2

A24136

COVER reservoir, w/gasket

1шт.

3

A24138

GASKET

, Serial Range: reservoir-cover

1шт.

4

O10582AB

X

ELEMENT filter

1шт.

5

A24140

STUD

power steering cover

1шт.

6

A20523

STUD

reservoir body mtg.

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

A22435

BODY reservoir

1шт.

10

A20526

VENTURI

pump body

1шт.

11

A11026

GASKET

reservoir mtg. screw

2шт.

12

O10570AB

X

OIL SEAL pump shaft

1шт.

13

O10558AB

X

BEARING pump shaft

1шт.

14

A20524

RING, SNAP

SNAP RING bearing retainer

1шт.

15

O10295AB

X

KEY pulley

1шт.

16

A20527

STUD pump mtg.

3шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

A20517

BODY pump, w/bshg. & venturi

1шт.

20

A20528

PIN

DOWEL PIN cam

1шт.

21

A20510

SHAFT

pump

2шт.

22

O10561AB

DOWEL PIN pump, Serial Range: body-cover

2шт.

23

A20518

COVER pump w/bshg. & pins

1шт.

24

A20520

VALVE

pressure relief

1шт.

25

O10567AB

X

"O" RING relief valve cap

1шт.

26

A20512

CAP relief valve

1шт.

27

A20511

SPRING

Flow control

1шт.

28

A20513

O-RING

"O" RING pump, Serial Range: body-cover

1шт.

29

A20514

O-RING

"O" RING - by-pass

1шт.

30

O10571AB

X

KEY drive shaft to roller carrier

1шт.

31

A20519

X

KIT includes (1) cam, (6) rollers & (1) carrier

1шт.

32

A11027

GASKET

reservoir intake and return

2шт.

33

A22714

SEAT

CAP filter

1шт.

34

O10564AB

X

SPRING filter element & cover

1шт.

35

O10577AB

X

GASKET cover stud

1шт.

36

O10578AB

X

WASHER cover stud

1шт.

37

129-419

WING NUT,5/16"-18

5/16" N.C.

1шт.
