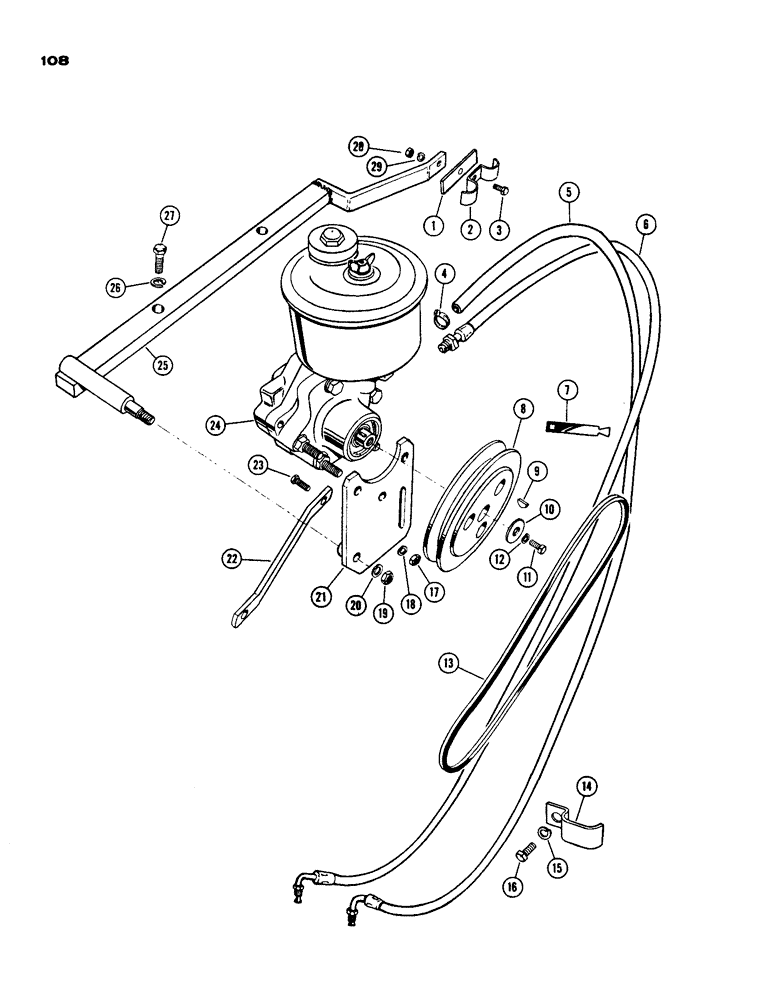

Запчасти Case IH 930-SERIES (108) - HYDRAULIC STEERING PUMP (05) - STEERING

1

A22141

BRACET hose clamp

1шт.

2

A22142

CLAMP hose

1шт.

3

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

1/4" x 3/4" N.F. hex

1шт.

4

214-2

X

CLAMP hose

1шт.

5

A24385

HOSE

- valve to pump reservoir, return

1шт.

6

A24386

HOSE

- pump to valve, pressure

2шт.

7

A22926

CLAMP

hose

2шт.

8

A8186

PULLEY

power steering pump

1шт.

9

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

10

A34092

WASHER

- pulley

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

A22766

BELT,30.00" L

Pump Drive 30.00" L

1шт.

14

A8312

CLAMP power steering hose, on rad. brkt.

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

17

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

A21736

PLATE power steering pump mtg.

1шт.

22

A21740

STRAP pump adjusting

1шт.

23

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

3/8" N.F. hex

1шт.

24

A22145

PUMP power steering

1шт.

25

A24037

STRAP

pump mtg. w/pivot pin

1шт.

26

92-7

LOCK WASHER,7/16"

2шт.

27

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

2шт.

28

25-114

NUT,1/4"-28, G5

1/4" N.F. hex

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
