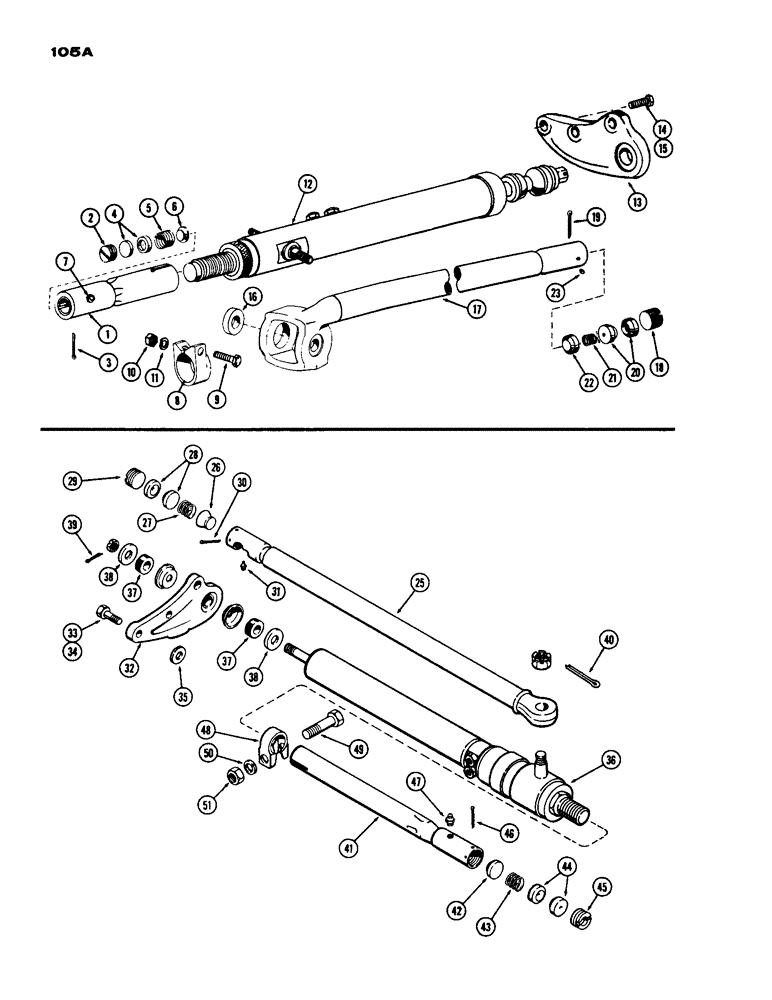

Запчасти Case IH 930-SERIES (105A) - POWER STEERING CYLINDER AND DRAG LINK, MONROE CYLINDER (05) - STEERING

1

A21445

LINK ASSY.

DRAG LINK - front (Use with Monroe or Ross Cylinder), Includes Ref: 2 - 7

1шт.

2

O2003AB

X

SCREW - adjusting, Monroe cylinder

1шт.

4

O2004AB

BEARING, Monroe cylinder

2шт.

5

O2005AB

X

SPRING, Monroe cylinder

1шт.

6

O3938AB1

X

SEAT, Monroe cylinder

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" strg, Monroe cylinder

1шт.

8

A23133

CLAMP

- drag link to cylinder (Use with Monroe or Ross cylinder), Includes Ref: 9 - 11

1шт.

9

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

Monroe cylinder Hex, 5/8"-11 x 2 3/4", G5

1шт.

10

129-107

NUT,5/8"-11, G5

Monroe cylinder 5/8"-11, G5

1шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Monroe cylinder 5/8"

1шт.

12

A24933

CYLINDER & VALVE ASSY (Monroe) See Page 107 for repairs

1шт.

13

A22948

BRACKET - cylinder anchor (use with Monroe or Ross cylinder)

1шт.

14

A22176

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW - bracket (2-1/4"), Monroe cylinder

1шт.

15

A22177

SCREW,Hex, 1/2" - 13 x 2 3/4", Gr 5

- bracket (2-3/4"), Monroe cylinder

1шт.

16

A22178

SPACER - rear drag link (Use with Monroe cylinder only)

1шт.

17

A24033

DRAG LINK - rear (Use with Monroe cylinder only), Includes Ref: 18- 23

1шт.

18

O2003AB

X

SCREW - adjusting, Monroe cylinder

1шт.

20

O2004AB

BEARING, Monroe cylinder

2шт.

21

O2005AB

X

SPRING, Monroe cylinder

1шт.

22

O3938AB1

X

SEAT, Monroe cylinder

1шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - 1/4" str., Monroe cylinder

1шт.

25

A24739

DRAG LINK - rear (Use with Ross cylinder only), Includes Ref: 26 - 31

1шт.

26

O3938AB1

X

SEAT - bearing spring pilot, Ross cylinder

1шт.

27

O2005AB

X

SPRING - bearing tension, Ross cylinder

1шт.

28

O2004AB

BEARING - ball seat, Ross cylinder

2шт.

29

A2003AB

SCREW - bearing ret., Ross cylinder

1шт.

31

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease (1/4" P.T. str.), Ross cylinder

1шт.

32

A22948

BRACKET - cylinder mtg., Ross

1шт.

33

A22176

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

- mtg. brkt., Ross cylinder

1шт.

34

A22177

SCREW,Hex, 1/2" - 13 x 2 3/4", Gr 5

BOLT - mtg. brkt., Ross cylinder

1шт.

35

A23264

WASHER - mtg. bolt (25/64 x 31/32 x 5/32"), Ross cylinder

1шт.

36

A24736

CYLINDER ASSY. - power strg. (See Page 107B), Ross

1шт.

37

A35654

GROMMET

CUSHION - str. cyl. (1/2 x 1-1/4 x 1/2" rubber), Ross

2шт.

38

A24978

RETAINER

- str. cyl. cushion (1/2 x 1-3/8 x 5/32"), Ross

2шт.

39

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), , Ross cylinder 1/8" x 7/8"

1шт.

40

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Ross cylinder 1/8" x 1 1/2"

1шт.

41

A21445

LINK ASSY.

DRAG LINK ASSY. - front, Ross cylinder, Includes Ref: 42 - 47

1шт.

42

O3938AB1

X

SEAT - bearing spring pilot, Ross cylinder

1шт.

43

O2005AB

X

SPRING - bearing tension, Ross cylinder

1шт.

44

O2004AB

BEARING - ball seat, Ross cylinder

2шт.

45

O2003AB

X

SCREW - bearing ret., Ross cylinder

1шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), Ross cylinder

1шт.

48

A23133

CLAMP

- str. cyl. to drag link, Ross

1шт.

49

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- clamp (5/8 x 2-3/4" N.F. hex.), Ross cylinder

1шт.

50

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Ross cylinder 5/8"

1шт.

51

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.), Ross cylinder

1шт.

3

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Monroe cylinder 1/8" x 2"

1шт.

19

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Monroe cylinder 1/8" x 2"

1шт.

30

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Ross cylinder 1/8" x 2"

1шт.

46

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Ross cylinder 1/8" x 2"

1шт.
