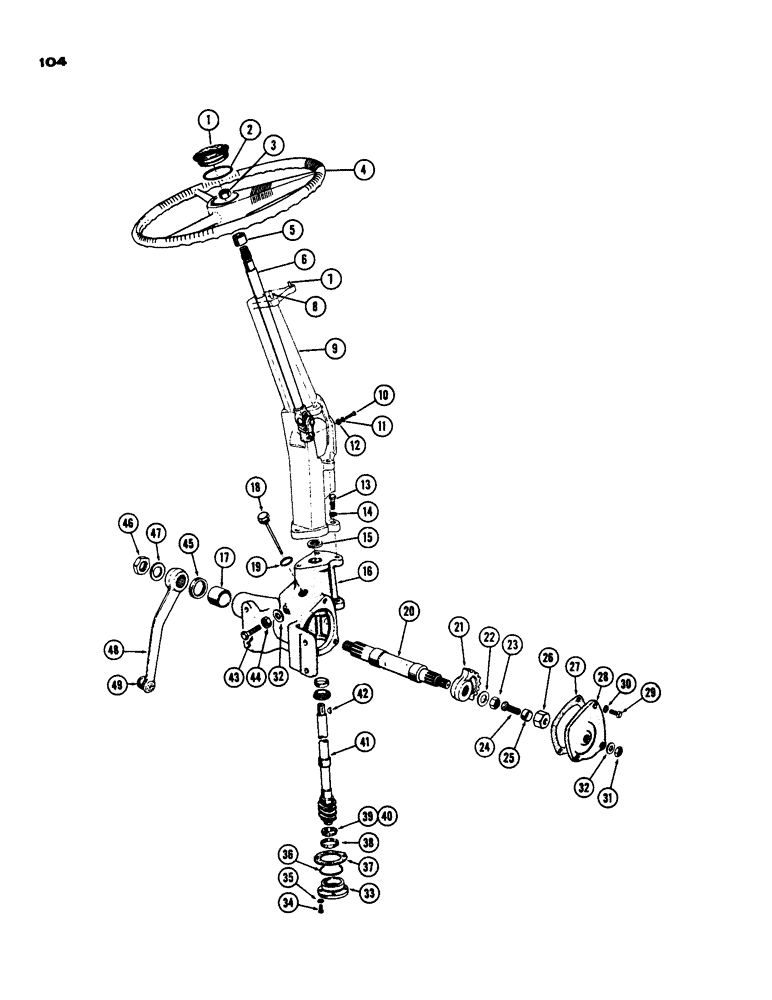

Запчасти Case IH 930-SERIES (104) - STEERING GEAR (05) - STEERING

1

A20475

CAP

MEDALLION - steering wheel

1шт.

2

O10984AB

X

"O" RING - steering wheel medallion

1шт.

3

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. hex. jam nut

1шт.

4

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

5

A06725AB1

BUSHING - steering column

2шт.

6

A23915

SHAFT

- steering & universal joint

1шт.

7

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

8

138-1008

ROLL PIN - 1/4" x 1"

1шт.

9

A23912

COLUMN - steering, w/A23914 bshgs

1шт.

10

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

14

92-8

LOCK WASHER,1/2"

3шт.

15

A23903

OIL SEAL

OIL SEAL - steering gear housing

1шт.

16

A23893

HOUSING - strg. gear w/A22125 bshgs, Includes Ref: 17

1шт.

17

A22125

BUSHING

- strg. gear housing

2шт.

18

A14280

PLUG

- oil filler, and gauge

1шт.

19

O9844AB

X

GASKET - oil filler plug

1шт.

20

A23895

SHAFT - steering gear cross

1шт.

21

A23896

GEAR

- steering sector

1шт.

22

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- 1-1/4" SAE plain

1шт.

23

131-307

LOCKNUT - 1-1/4" N.F. Marsden

1шт.

24

A23899

SCREW,Hex, 1/2" - 13 x 1 29/32"

- steering arm adjusting

1шт.

25

A23897

SPACER

- strg. arm screw

1шт.

26

A23898

COLLAR - cross shaft adjusting

1шт.

27

A23900

GASKET

- strg. gear housing cover

1шт.

28

A23901

COVER - strg. gear housing

1шт.

29

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

3шт.

30

92-7

LOCK WASHER,7/16"

3шт.

31

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - 1/2" N.C. hex nylock

1шт.

32

A11557

GASKET

WASHER - copper, adjusting scrw

1шт.

33

A23908

CARRIER

- strg. gear bearing

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk - Strg. gear brg. carrier

1шт.

37

A23905

SHIM,.003" Thk

Strg. gear brg. carrier .003" Thk

1шт.

37

A23906

SHIM,.005" Thk

Steering gear brg. carrier .005" Thk

1шт.

37

A23907

SHIM,.010" Thk

Strg. gear brg. carrier .010" Thk

1шт.

38

O7165AB

X

CUP - bearing, worm shaft

2шт.

39

O7163AB

X

ROLLERS - bearing, worm shaft

2шт.

40

O7164AB

X

CONE - bearing, worm shaft

1шт.

41

A23902

GEAR

- strg. worm and shaft

1шт.

42

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - Woodruff

1шт.

43

A20687

X

SCREW - worm gear adjusting

2шт.

44

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - adjusting screw, worm gear

2шт.

45

A22124

OIL SEAL

- strg. gear housing

1шт.

46

137-300

NUT - 1" N.F. hex. drop arm

1шт.

47

195-33

WASHER,1/2"

- 1" SAE plain

1шт.

48

A10038

ARM - strg. drop, w/ball, Includes Ref: 49

1шт.

49

A23418

BALL

- drop arm

1шт.
