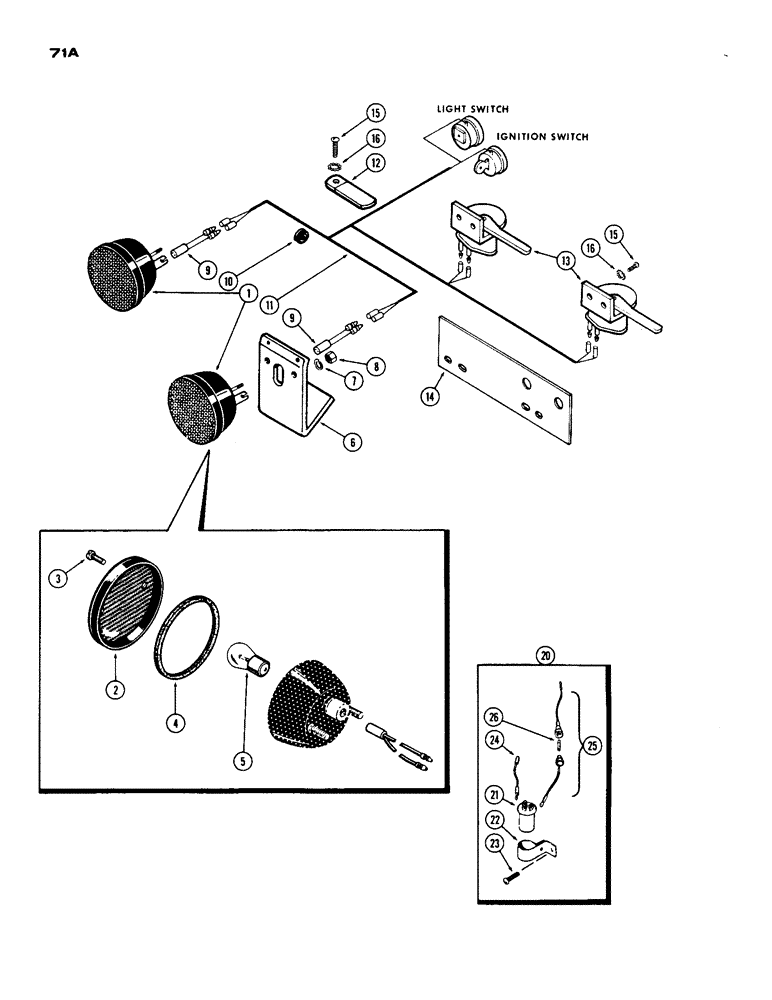

Запчасти Case IH 930-SERIES (071A) - STOP AND TAIL LAMP ATTACHMENT, LIGHTING EQUIPMENT (04) - ELECTRICAL SYSTEMS

A34010

LAMP KIT - stop and tail lights, Includes Ref: 1 - 16

1шт.

1

A16732

LAMP ASSY., Includes Ref: 2 - 5

2шт.

2

B50336

LENS

- lamp

1шт.

3

B50219

SCREW - lens retaining

2шт.

4

B50327

GASKET -, Serial Range: lens-body

1шт.

5

R11078

LAMP

BULB - lamp

1шт.

6

A33972

BRACKET - lamp mounting

2шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

9

A16731

PLUG

WIRE ASSY. - tail lamp plug

2шт.

10

O8332AB

X

GROMMET - wires (in fenders)

2шт.

11

A33975

HARNESS

- wires

1шт.

12

A22880

CLIP

- harness ret. (to platforms)

2шт.

13

A33977

SWITCH

- stop light

2шт.

14

A34011

BRACKET

- switch mounting

2шт.

15

187-1126

SCREW - clip and sw. (#10 x 3/8" N.F. pan hd.)

8шт.

16

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

20

A22630M

FLASHER ATTACHMENT, Includes Ref: 21 - 26

1шт.

21

A22627

LIGHT, WARNING

FLASHER - warning, attachment

1шт.

22

A22626

BRACKET - flasher mounting, attachment

1шт.

23

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- brkt. (#10 x 1/2" N.C. rd. hd.), flasher attachment

1шт.

24

A22628

WIRE - flasher to auxiliary socket, attachment

1шт.

25

A22629

WIRE ASSY. - flasher to power, attachment, Includes Ref: 26

1шт.

26

223-4

FUSE,4 Amp, Type 3AG

- flasher (4 amp.), attachment

1шт.
