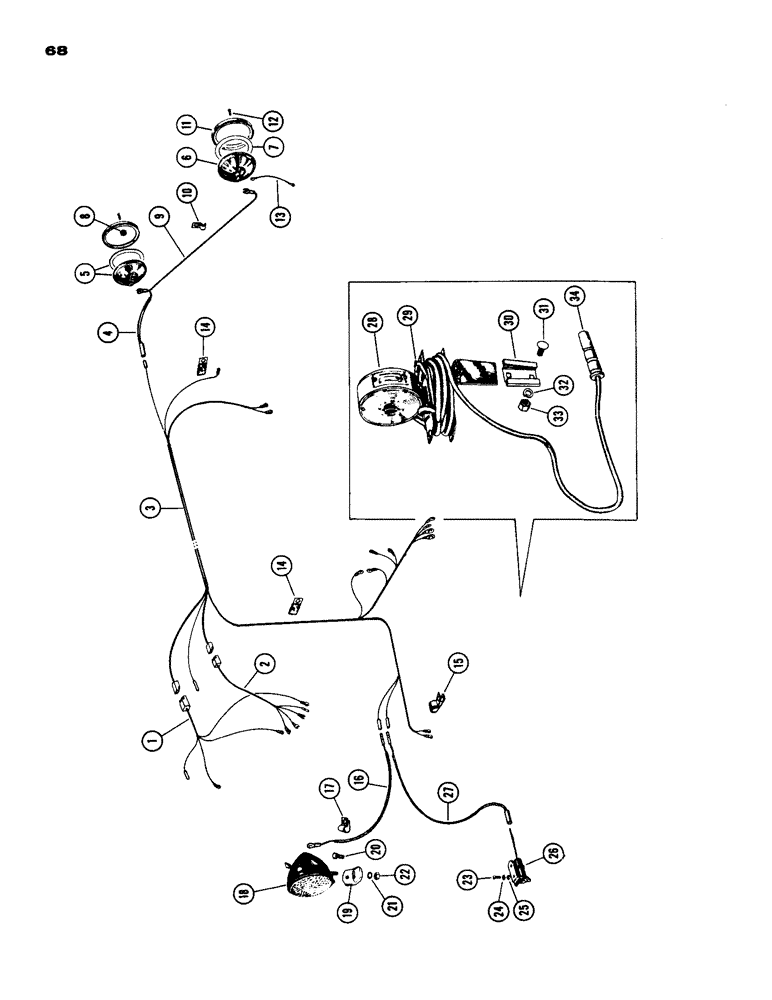

Запчасти Case IH 930-SERIES (068) - LAMP WIRING, DIESEL AND SPARK IGNITION (04) - ELECTRICAL SYSTEMS

1

A24076

PLUG

AND WIRE ASSEM. rear, red

1шт.

2

A21613

HARNESS

PLUG AND WIRE ASSEM. rear, black

1шт.

3

A24090

HARNESS

PLUG AND WIRE HARNESS ASSEM. front

1шт.

4

A11943

WIRE, Serial Range: connector-headlamp

1шт.

5

A24572

LAMP

HEADLAMP KIT, Includes Ref: 6 and 7

2шт.

6

A11280

LAMP

HEADLAMP - sealed unit

1шт.

7

A11276

GASKET

- head lamp retainer

1шт.

8

129-25

WASHER

NUT - #6-32 mach. screw, zinc pltd.

6шт.

9

A11764

WIRE - head lamp to head lamp

1шт.

10

O2825AB

X

CLIP - head lamp wire, on grille cap

2шт.

11

A11275

RING

- head lamp

2шт.

12

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

- #6-32 x 1" pan hd., chrome plated

6шт.

13

A11768

ELECTRICAL WIRE

WIRE - head, Serial Range: lamp-ground

2шт.

14

A22880

CLIP

- gen., rear lamp & gen. wires

3шт.

15

O6194AB

CLIP - wire loom

1шт.

16

A24089

WIRE - rear lamp

1шт.

17

O6182AB

CLIP - rear lamp wire

1шт.

18

A20965

LAMP BASE

LAMP - combination flood and tail (12 volt)

1шт.

19

6122A

X

BRACKET - tail lamp

1шт.

20

13-621

BOLT - 3/8" x 1-1/2" N.F. hex.

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

23

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10 x 1/2" N.F. rhd. mach. plated

2шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

25

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. Keps plated

2шт.

26

A8170

SOCKET

- electrical outlet

1шт.

27

A24088

WIRE - auxiliary outlet

1шт.

28

A11066M

LAMP - warning, 12 volt (Machy. item) (consists of lamp, extra 6 volt & A8179 socket)

1шт.

29

NSS

NOT SOLD SEPARAT

CLIP - warning lamp wire loom (Guide Lamp #5938870)

1шт.

30

A8179

SOCKET

- warning lamp bracket

1шт.

31

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" N.C. carriage

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

34

B50259

PLUG

- assembly

1шт.
