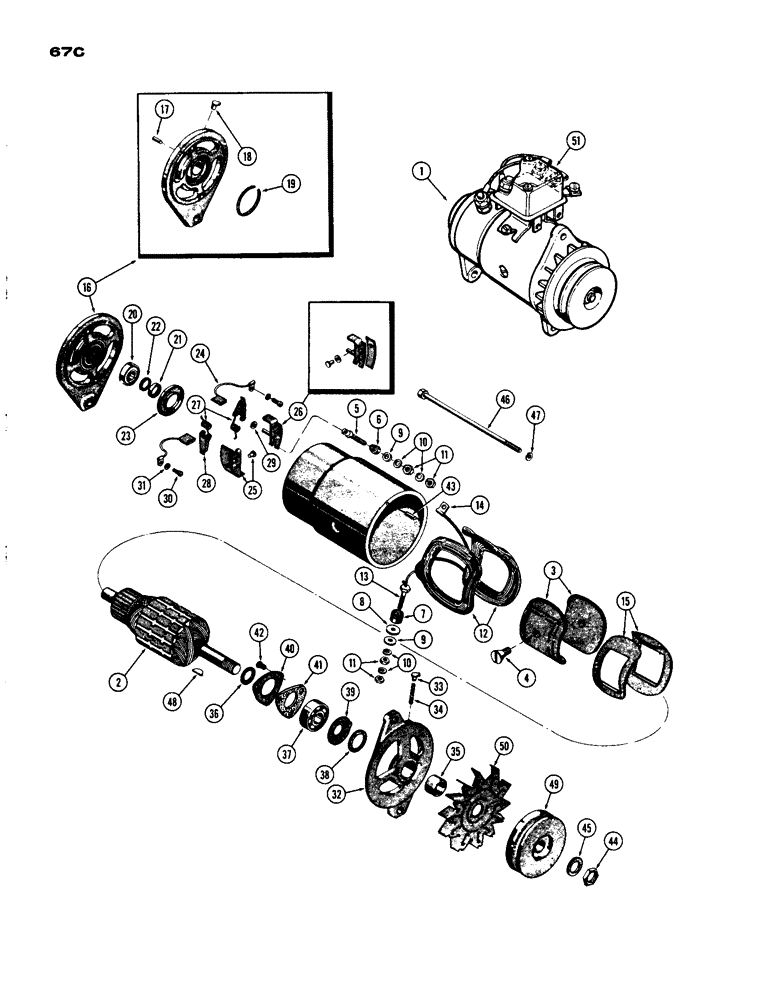

Запчасти Case IH 930-SERIES (067C) - A33983 AND A22684 GENERATOR, DIESEL AND SPARK IGNITION (04) - ELECTRICAL SYSTEMS

1

A33983

GENERATOR

GENERATOR ASSY (Delco-Remy #1109444)

1шт.

1

104017A1R

REMAN-GENERATOR

Generator

1шт.

1

104017A1C

CORE-GENERATOR

Return Number

1шт.

1

A22684

SPARE PART GENERATOR ASSY. (Delco-Remy #1100407) (Order A33983), Includes Ref: 2 - 51

1шт.

2

A40377

ARMATURE

ARMATURE ASSY. - generator

1шт.

3

R16145

SPARE PART SHOE - generator pole

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - shoe pole

2шт.

5

A40701

STUD

STUD - terminal "A"

1шт.

6

R16147

BUSHING

BUSHING - term. "A" insulator

1шт.

7

A40702

STUD

BUSHING - term. "F" insulator

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - insulation, term. stud

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - plain, term stud

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - lock, term stud

4шт.

11

NSS

NOT SOLD SEPARAT

NUT - term. stud

4шт.

12

R16149

COIL ASSY.

COIL ASSY. - field, Includes Ref: 13 - 15

1шт.

13

A72049

X

STUD - term. "F", field coil

1шт.

14

NSS

NOT SOLD SEPARAT

CLIP -, Serial Range: term.-brush

1шт.

15

R16152

INSULATOR

INSULATOR - field coil

2шт.

16

A25413

HOUSING

HOUSING ASSY. - commutator end, Includes Ref: 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - dowel, comm. end

1шт.

18

NSS

NOT SOLD SEPARAT

WICK - oil, commutor end

1шт.

17

NSS

NOT SOLD SEPARAT

OILER - comm end.

1шт.

20

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, comm. end

1шт.

21

NSS

NOT SOLD SEPARAT

CUP - felt retainer

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - felt, comm. end

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - wick

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - main

2шт.

25

A40703

NOZZLE HOLDER

HOLDER - ground brush

1шт.

26

A40704

NOZZLE HOLDER

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

ARM - brush

2шт.

29

NSS

NOT SOLD SEPARAT

WASHER - spacer, brush arm

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - brush lead

2шт.

31

NSS

NOT SOLD SEPARAT

LOCKWASHER - brush lead screw

2шт.

32

A25442

HOUSING

HOUSING ASSY. - drive end, Includes Ref: 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

OILER - housing

1шт.

34

NSS

NOT SOLD SEPARAT

WICK - oil, housing

1шт.

35

R16166

BUSHING

COLLAR - spacer, drive hsg., inner

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - spacer, drive hsg., inner

1шт.

37

G10623

BALL BEARING

BEARING - ball, drive hsg.

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - felt, drive hsg.

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - retainer, felt washer

1шт.

40

R15101

PLATE

PLATE - retainer, brg., drive hsg.

1шт.

41

R16170

GASKET

GASKET - brg. retainer, hsg.

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - retainer plate

3шт.

43

NSS

NOT SOLD SEPARAT

PIN - dowel, drive hsg.

1шт.

44

A25546

NUT

NUT - armature shaft, drive end

1шт.

45

R16171

SPRING WASHER

WASHER - lock, shaft nut

1шт.

46

A40129

BOLT

BOLT - gen. body and end hsg.

2шт.

47

NSS

NOT SOLD SEPARAT

WASHER - lock, generator bolt

2шт.

48

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Drive end #5, 1/8" x 5/8", HT

1шт.

49

A22366

PULLEY

PULLEY - generator drive

1шт.

50

A25449

FAN

FAN - vent, drive end

1шт.

51

A20792

REGULATOR

REGULATOR ASSY. - voltage, gen.

1шт.
