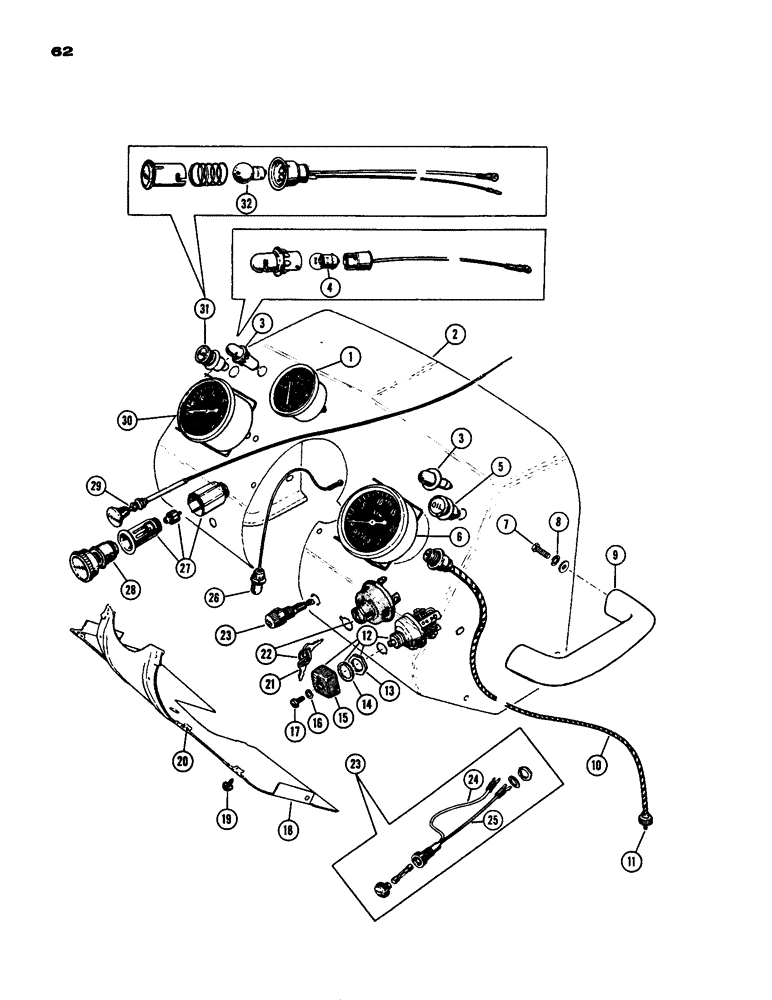

Запчасти Case IH 930-SERIES (062) - LP INSTRUMENT PANEL, SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A24080
GAUGE
- engine temperature
1шт.
2
A24022
PANEL - instrument
1шт.
3
A24087
LAMP BASE
LAMP - instrument panel, Includes Ref: 4
2шт.
4
A22349
BULB
- instrument panel lamp (Mfr. #1445)
2шт.
5
A24084
LAMP
- oil pressure warning
1шт.
6
A24099
TACHOMETER
1шт.
7
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
8
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
9
A23725
HANDLE
- instrument panel
2шт.
10
A24102
CABLE
- tachometer drive (See A24523)
1шт.
10
A24100
CABLE
- speedometer drive (See A24523)
1шт.
11
A24523
KIT
- cable, speedometer or tach. inner drive
2шт.
12
A20620
SWITCH
- lighting with knob, Includes Ref: 13 - 17
1шт.
13
A20467
NUT
- lighting switch lock
1шт.
14
193-63
LOCK WASHER,Int Tooth, 5/8"
LOCKWASHER - 5/8" Shakeproof
1шт.
15
A20465
KNOB
- lighting switch
1шт.
16
192-16
LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND
Washer, Lock, #8
1шт.
17
A20468
SCREW,Spcl, #8 - 32 x 5/16"
- lighting switch knob
1шт.
18
A24028
COVER - instrument panel
1шт.
19
SCREW,Cross Truss Hd, #8 x 5/8"
- #8 x 1/2" Phillips truss hd. tapping (zinc pltd.)
8шт.
20
131-130
NUT
- #8 Tinnerman speed grip
8шт.
21
A24509
KEY
- A24511 switch (See A20621)
2шт.
22
A20621
KEY
- switch (Before tractor #8201105)
2шт.
22
A24511
SWITCH
- ignition, (Gas) (incl 2-A24509 keys)
1шт.
23
A22874
HOLDER
- fuse (incl. 223-20 SFE 20 fuse)
1шт.
24
A22876
ELECTRICAL WIRE
WIRE - fuse to generator warning lamp
1шт.
25
A22875
ELECTRICAL WIRE
WIRE - fuse to light switch
1шт.
26
A24086
LAMP
- gear shift indicator
1шт.
27
A24081
SOCKET - cig. lighter, complete w/pop-out unit
1шт.
28
A2434
UNIT - pop-out, cigarette lighter
1шт.
29
A24097
X
CHOKE CONTROL
1шт.
30
A24098
SPEEDOMETER
1шт.
31
A24085
LAMP
- generator warning
1шт.
32
A24354
BULB
- warning lamps (Mfr. #57R)
3шт.
Выбрано товаров: 34
