(054) - 4001AA REGULATOR, SPARK IGNITION ENGINE

Запчасти Case IH 930-SERIES (054) - 4001AA REGULATOR, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

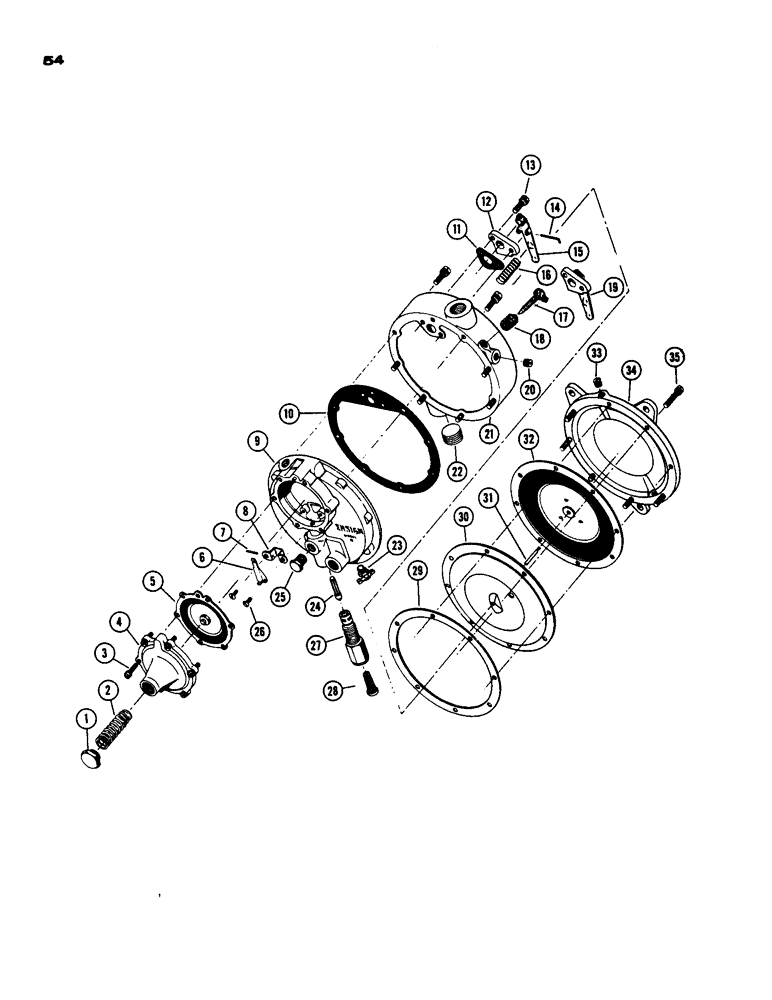

Схема запчастей Case IH 930-SERIES - (054) - 4001AA REGULATOR, SPARK IGNITION ENGINE (03) - FUEL SYSTEM
6
33
1
13
22
11
3
14
17
12
15
8
2
26
5
9
32
4
10
24
7
18
19
28
35
29
30
34
16
21
20
31
25
23
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

B50112

RETAINER - spring, pressure regulator

1шт.

2

B50111

SPRING - pressure regulator

1шт.

3

B50035

SCREW - cover and body

13шт.

4

B50110

COVER - pressure regulator

1шт.

5

B50108

DIAPHRAGM - pressure regulator

1шт.

6

B50103

LEVER - valve

1шт.

7

B50104

PIVOT - valve lever

1шт.

8

B50100

SUPPORT - pivot

1шт.

9

B50099

BODY - vaporizer

1шт.

10

B50124

GASKET -, Serial Range: vaporizer-body

1шт.

11

B50126

GASKET - main valve

1шт.

12

B50125

SEAT - main valve

1шт.

13

B50037

SCREW - main valve

2шт.

14

B50159

PIN - pivot

1шт.

15

B50196

LEVER ASSY - (includes ref. 11, 12 & 14)

1шт.

16

B50121

SPRING - fuel regulator

1шт.

17

B50024

SCREW - idle adjusting

1шт.

18

B50022

RETAINER - adjusting screw

1шт.

19

B50197

VALVE ASSY - main

1шт.

20

A40691

SCREW - bleed

1шт.

21

B50117

BODY - fuel regulator

1шт.

22

B50045

X

PLUG - 3/4" socket hd

1шт.

23

B50025

X

DRAIN COCK

1шт.

24

B50152

VALVE - needle

1шт.

25

B50113

PLUG - 1/4" pipe

1шт.

26

B50031

SCREW - pivot support

2шт.

27

B50167

FUEL INLET ASSY, Includes Ref: 28

2шт.

28

B50168

STRAINER - inlet

1шт.

29

B50114

GASKET - partition plate

1шт.

30

B50190

PLATE - partition

1шт.

31

B50189

PIN - push, regulator diaphragm

1шт.

32

B50199

DIAPHRAGM - fuel regulator (includes ref. 31)

1шт.

33

B50058

PLUG - 1/8" pipe

1шт.

34

B50123

PLATE - support

1шт.

35

B50036

SCREW - support plate

8шт.

B50057

KIT - repair (includes ref. 2, 3, 5, 10, 11, 13, 16, 17 18, 19, 24, 26, 28, 29, 31, 32 & 35)

1шт.
