Запчасти Case IH 930-SERIES (052) - LP FUEL FILTER AND CARBURETOR, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

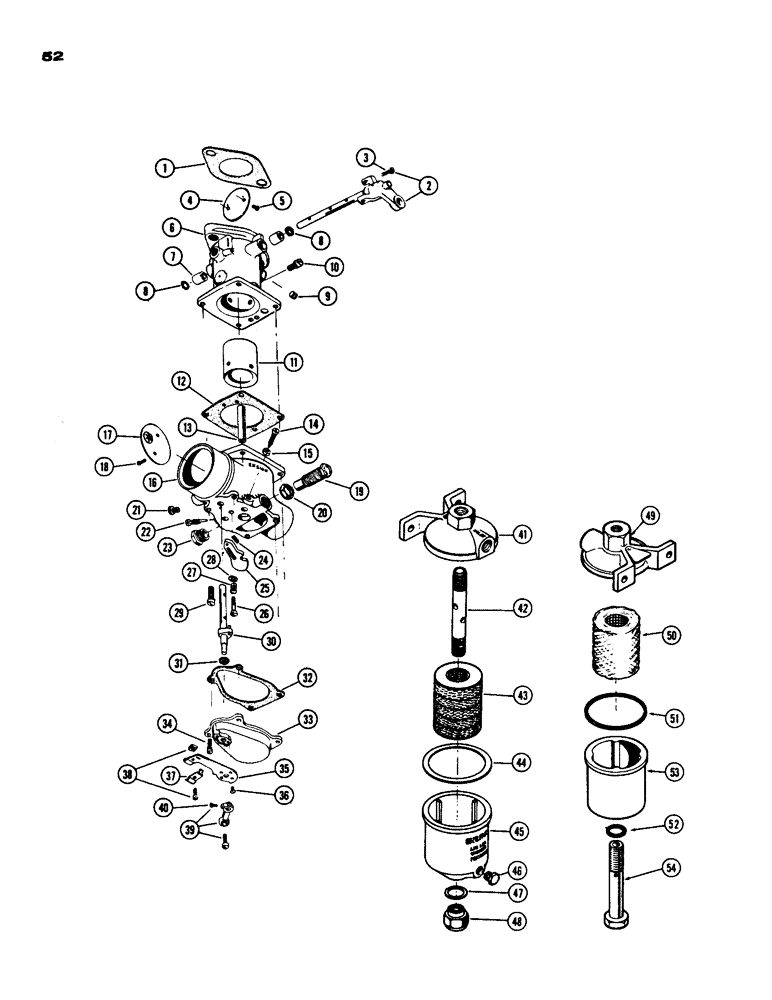

Схема запчастей Case IH 930-SERIES - (052) - LP FUEL FILTER AND CARBURETOR, SPARK IGNITION ENGINE (03) - FUEL SYSTEM
24
39
36
8
26
22
52
50
47
40
41
30
49
16
27
21
23
10
46
13
33
38
44
2
31
48
11
42
25
4
29
17
5
32
35
34
9
12
43
45
8
15
20
51
1
37
53
3
6
54
14
18
19
28
7

Артикул

Название

Примечание

Количество

1

O9570AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.

2

B59347

SHAFT ASSY - throttle, Includes Ref: 3

1шт.

3

B50014

SCREW - set

1шт.

4

B50018

DISC - throttle

1шт.

5

B50143

SCREW - throttle disc

2шт.

6

B50083

TUBE - throttle

1шт.

7

B50202

BUSHING - throttle shaft

2шт.

8

B50145

WASHER - dust

2шт.

9

B50058

PLUG - 1/8" pipe

1шт.

10

B50040

SCREW - venturi

1шт.

11

B50093

VENTURI

1шт.

12

B50019

GASKET

- air horn

1шт.

13

B50095

NOZZLE

1шт.

14

B50101

SCREW - starting adjusting

1шт.

15

B50102

NUT - lock, adjusting screw

1шт.

16

B50085

AIR HORN ASSY

1шт.

17

B50078

DISC - choke

1шт.

18

B50142

SCREW - choke disc.

2шт.

19

B50015

SCREW - fuel adjusting

1шт.

20

B50090

NUT - lock, adjusting screw

1шт.

21

B50164

SCREW - bleed, pilot tube

1шт.

22

B50140

PLUG - starting adjusting screw

1шт.

23

B50141

MANIFOLD

PLUG - screw

1шт.

24

B50105

SPRING - latching

1шт.

25

B50115

LEVER - valve

1шт.

26

B50154

PIVOT - valve lever

1шт.

27

B50021

SPRING - pressure

1шт.

28

B50097

WASHER - spring retaining

1шт.

29

B50041

SCREW

- air horn

4шт.

30

B50128

SHAFT ASSY - choke

1шт.

31

B50098

WASHER - dust

1шт.

32

B50017

GASKET - cover plate

1шт.

33

B50016

PLATE - cover

1шт.

34

B50034

SCREW - cover plate

4шт.

35

B50139

SUPPORT - choke tube

1шт.

36

B50032

SCREW - choke tube clamp

1шт.

37

B50204

CLAMP - choke tube

1шт.

38

B50119

SCREW - choke tube clamp nut

1шт.

39

B50151

LEVER ASSY - choke, Includes Ref: 40

1шт.

40

B50014

SCREW - choke lever

2шт.

A40031

KIT - repair (incl. ref. 3, 5, 8, 12, 14, 15, 18, 24, 26, 27, 28, 29, 32, 34, 36, 37 & 40)

1шт.

41

B50129

TOP - filter, parts for 08837AB

1шт.

42

B50131

STUD - filter, parts for 08837AB

1шт.

43

B50132

X

ELEMENT - filter, parts for 08837AB

1шт.

44

B50133

GASKET - filter top, parts for 08837AB

1шт.

45

B50130

BOTTOM - filter, parts for 08837AB

1шт.

46

221-651

PLUG,Hex Hd, 1/8"-27

- 1/8" pipe, parts for 08837AB filter

1шт.

47

B50134

GASKET - nut to bowl, parts for 08837AB filter

1шт.

48

B50135

NUT - filter stud, parts for 08837AB

1шт.

49

A24536

TOP - filter, parts for A24535

1шт.

50

A24616

KIT

ELEMENT - filter, parts for A24535, Includes Ref: 51 and 52

1шт.

51

A24539

GASKET

- top to housing, parts for A24535 filter

1шт.

52

A24538

GASKET

- bolt to housing, parts for A24535 filter

1шт.

53

A24537

HOUSING - filter, parts for A24535

1шт.

54

A24541

BOLT - top to housing, parts for A24535 filter

1шт.

Выбрано товаров: 55
