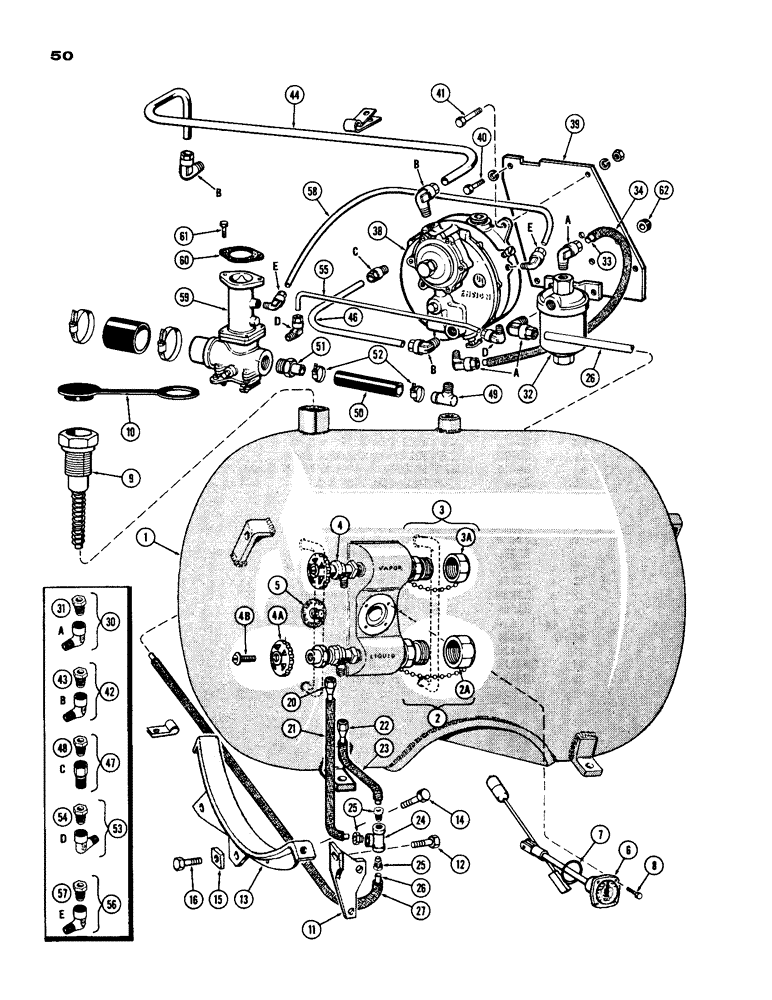

Запчасти Case IH 930-SERIES (050) - FUEL TANK AND LINES, SPARK IGNITION ENGINE, L.P. FUEL (03) - FUEL SYSTEM

1

A24047

TANK ASSY. - fuel, Includes Ref: 2 - 10

1шт.

2

4323AA

VALVE - inlet, liquid filler, Includes Ref: 2A

1шт.

2a

A40631

CAP ASSY. - w/chain

1шт.

3

A9320

VALVE - vapor return, Includes Ref: 3A

1шт.

3a

A40630

CAP ASSY. - w/chain

1шт.

4

A22947

X

VALVE - outlet, liquid, & vapor, Includes Ref: 4A and 4B

2шт.

4a

B52058

WHEEL - hand

1шт.

4b

B52057

SCREW - hand wheel ret.

1шт.

5

4008AA

VALVE - liquid level, fixed

1шт.

6

A24048

GAUGE ASSY. - liquid level, float, Includes Ref: 7 and 8

1шт.

7

A20489

GASKET - fuel gauge

1шт.

8

177-133

SCREW - fuel gauge (1/4 x 15/16" N.F. fill hd.)

4шт.

9

A20696

SEAL

VALVE ASSY. - safety, Includes Ref: 10

1шт.

10

A20697

WIPER

CAP - weather, safety valve

1шт.

11

A24044

BRACKET - fuel tank mtg., right hand

1шт.

11

A24045

BRACKET - fuel tank mtg., left hand

1шт.

12

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Bracket Hex, 5/8"-18 x 1 3/4", G5

2шт.

13

A24042

SADDLE - fuel tank mtg. right hand

1шт.

13

A24043

SADDLE - fuel tank mtg., left hand

1шт.

14

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Saddle Hex, 1/2"-13 x 2", G5

4шт.

15

A24039

PLATE - hold down nut

2шт.

16

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- plate (5/16 x 1-1/2" N.F. hex.)

2шт.

20

A20106

TUBE - vapor, Serial Range: outlet-tee

1шт.

21

O7659AB

LOOM - vapor outlet tube (11" lg.)

1шт.

22

A20107

TUBE - liquid, Serial Range: outlet-tee

1шт.

23

O8840AB

LOOM - liquid outlet tube (5-1/2" lg.)

1шт.

24

222-564

TEE ASSY. - fuel line junction, Includes Ref: 25

1шт.

25

222-504

TUBE NUT,9/16"-20

NUT - tee (For 3/8" dia. tube)

3шт.

26

A24049

TUBE - tee to filter inlet

1шт.

27

O7653AB

LOOM - filter inlet tube (10" lg.)

1шт.

30

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY. - filter & regulator, Includes Ref: 31

3шт.

31

222-504

TUBE NUT,9/16"-20

NUT - elbow (For 3/8" dia. tube)

1шт.

32

A24535

FILTER

ASSY. - (See Page 53)

1шт.

33

A23858

TUBE -, Serial Range: filter-regulator

1шт.

34

O7651AB

LOOM - filter liquid tube (21-1/2" lg.)

1шт.

38

4001AA

REGULATOR ASSY. - (See Page 55)

1шт.

39

A23853

PLATE - regulator & filter mounting

1шт.

40

14-518

BOLT - (5/16" x 1-1/8" N.F. hex.) Hex, 5/16"-24 x 1 1/8", G5, Full Thd

5шт.

41

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

- (3/8 x 2-1/4" N.C. hex.)

3шт.

42

222-442

ELBOW ASSY., Includes Ref: 43 90º x 3/8" NPT x 11/16"-16

3шт.

43

222-506

TUBE NUT,11/16"-16

NUT - (For 1/2" dia. tube)

1шт.

44

A23857

TUBE - regulator to water pump

1шт.

43

A23856

TUBE -, Serial Range: block-regulator

1шт.

47

222-412

CONNECTOR ASSY., Includes Ref: 48

1шт.

48

222-506

TUBE NUT,11/16"-16

NUT - (For 1/2" dia. tube)

1шт.

49

O8822AB

ELBOW - vapor hose

1шт.

50

A23852

HOSE - vapor (3/4" I.D. x 6")

1шт.

51

A11791

NIPPLE - vapor hose

1шт.

52

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - vapor hose

2шт.

53

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

ASSY. - balance line, Includes Ref: 54

2шт.

54

222-503

TUBE NUT,1/2"-20

NUT - (For 5/16" dia. tube)

1шт.

55

A23854

TUBE - balance

1шт.

56

222-432

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

ASSY. - idle tube, Includes Ref: 57

2шт.

57

222-502

TUBE NUT,7/16"-24

NUT - (For 1/4" dia. tube)

1шт.

58

A23855

TUBE - idle

1шт.

59

A23851

X

CARBURETOR ASSY. - (See Page 53)

1шт.

60

O9570AB

X

GASKET - carburetor

1шт.

61

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- carburetor (3/8 x 1-1/2" N.C. hex.)

2шт.

62

O227N

SPACER - mtg., Serial Range: plate-blk.

3шт.
