Запчасти Case IH 930-SERIES (048) - THROTTLE CONTROL, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

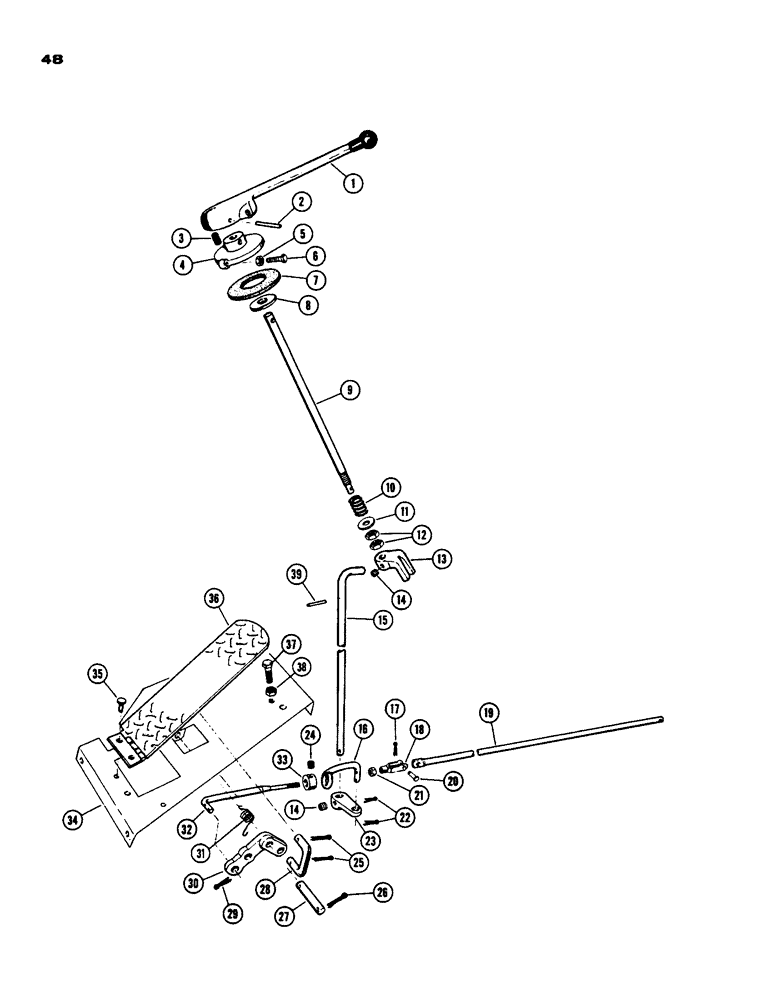

Схема запчастей Case IH 930-SERIES - (048) - THROTTLE CONTROL, SPARK IGNITION ENGINE (03) - FUEL SYSTEM
23
33
35
12
25
38
37
21
28
19
32
3
17
15
29
13
6
7
16
10
5
2
4
22
1
9
39
24
26
34
31
14
36
14
20
30
8
27
18
11

Артикул

Название

Примечание

Количество

1

A23784

LEVER

throttle, hand

1шт.

2

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

3

A8012

SPRING

throttle lever

1шт.

4

A23916

PLATE throttle lever

1шт.

5

25-144

JAM NUT,Jam, 1/4"-20, G5

1/4" N.C. hex. jam

2шт.

6

A20341

SCREW throttle stop

2шт.

7

A11969

GASKET

DISC throttle

2шт.

8

A32838

WASHER

DISC - throttle hand lvr. friction

1шт.

9

A23918

SHAFT throttle upper

1шт.

10

A34113

SPRING

- throttle shaft

1шт.

11

195-33

WASHER,1/2"

plain 1/2"

1шт.

12

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2" N.F. hex., jam

2шт.

13

A23917

FORK

throttle shaft, upper

1шт.

14

83-47

SET SCREW,Hex Soc, 1/4"-20 x 7/16"

1/4" x 7/16" N.C. sckt. hd. cup pt.

2шт.

15

A23919

SHAFT throttle, lower

1шт.

16

A23931

ROD hand throttle control

1шт.

17

136-105

COTTER PIN 1/16" x 1/2"

1шт.

18

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - throttle rod

1шт.

19

A23850

ROD throttle, front

1шт.

A20868

SPRING

governor

1шт.

20

141-1

CLEVIS PIN,3/16" x .580"

PIN - yoke

1шт.

21

129-27

NUT,Hex, #10 - 32

#10 N.F. hex. mach. screw

1шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

23

A23923

LEVER lower throttle shaft

1шт.

24

84-45

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

1/4" x 5/16" N.F. sckt. hd. cup pt.

1шт.

25

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

26

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

27

A23927

PIN foot control lvr.

1шт.

28

A23925

LINK foot, Serial Range: pedal-lever

1шт.

29

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

30

A23926

LEVER foot control

1шт.

31

A23933

SPRING

foot control lvr. pin

1шт.

32

A23928

ROD throttle control rear

1шт.

33

A23929

COLLAR

throttle control

1шт.

34

A23866

SUPPORT throttle foot control

1шт.

35

48-410

RIVET - 1/4 x 5/8" oval hd.

2шт.

36

A20544

PEDAL foot throttle

1шт.

37

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT 1/4" x 1-1/2" N.F. hex.

1шт.

38

25-114

NUT,1/4"-28, G5

1/4" N.F. hex.

1шт.

39

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

Выбрано товаров: 40
