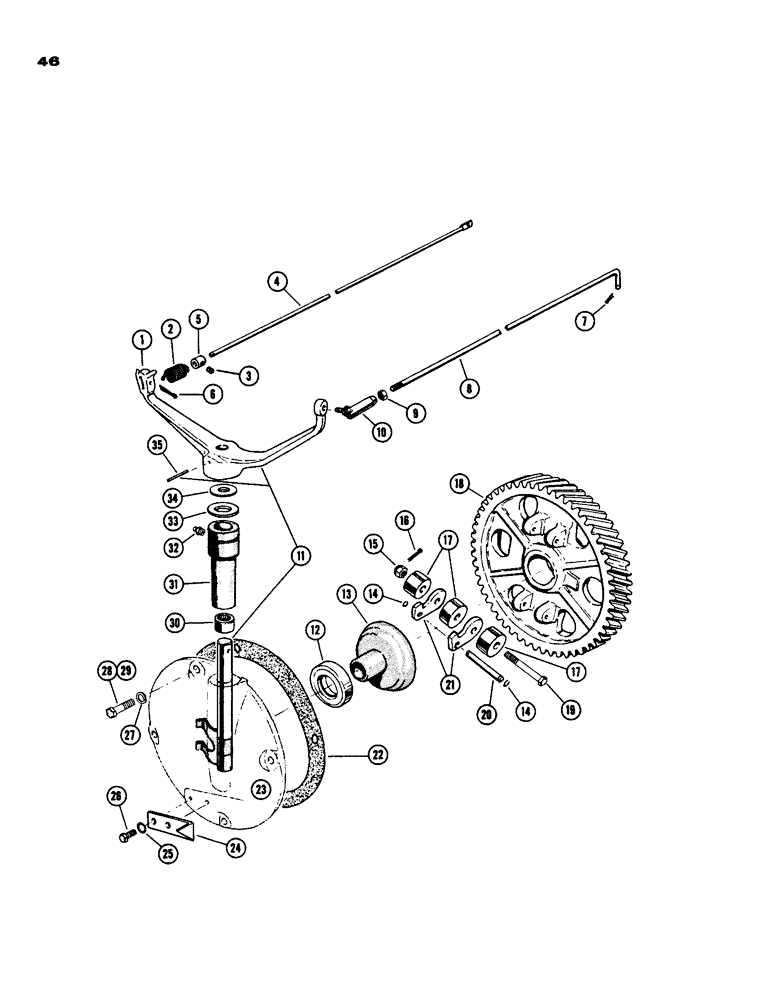

Запчасти Case IH 930-SERIES (046) - GOVERNOR, SPARK IGNITION ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A20836
LEVER (Use A20838) (Ref. No. 11)
1шт.
2
A20868
SPRING
governor
1шт.
3
85-46
SET SCREW,Sq Hd, 1/4"-20 x 3/8"
SCREW 1/4" x 5/8" sq. hd. set
1шт.
4
A23850
ROD throttle, front
1шт.
5
A20846
COLLAR
throttle rod stop
1шт.
6
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
7
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
1шт.
8
A21306
ROD governor, Serial Range: lever-carb.
1шт.
10
A10326AB1
BALL JOINT - governor arm to carb. rod
1шт.
11
A20838
SHAFT
w/lever & finger
1шт.
12
A7285
THRUST BEARING,1.0675" ID x 40574" OD x 5"
BEARING governor thrust
1шт.
13
A7284
SLEEVE governor
1шт.
14
A7111
SNAP RING,#25, Ext
Ring, Snap, , governor weight pin #25, Ext
4шт.
15
25-235
SLOTTED NUT
NUT 5/16" N.F. hex. castle
2шт.
16
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
2шт.
17
A7277
WEIGHT
governor
6шт.
18
6451A
X
GEAR camshaft
1шт.
19
A11693
BOLT governor weight
2шт.
20
A7282
PIN,6.31mm OD x 47.63mm L
governor weight
2шт.
22
O9752AB
X
GASKET timing gear cover cap
1шт.
23
A20833
CAP timing gear cover
1шт.
24
A21362
CLIP
POINTER timing
1шт.
25
193-44
LOCK WASHER,Ext-Int Tooth, 1/4"
LOCKWASHER 1/4" Shakeproof int.-ext.
2шт.
26
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
27
92-6
LOCK WASHER,3/8"
4шт.
28
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
29
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
3шт.
30
A7290
NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W
BEARING lvr. sft. needle (Torrington #B-90)
2шт.
31
A20835
SLEEVE governor lvr. sft. brg.
1шт.
32
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING 1/8" str. Lincoln
1шт.
33
A7292
SEAL
lever bearing
1шт.
34
A7293
WASHER
governor lvr. brg.
1шт.
35
138-101
LOCK PIN,3/16" x 1 5/8", Slotted
PIN, LOCK, 3/16" x 1 5/8", Slotted
1шт.
Выбрано товаров: 35
