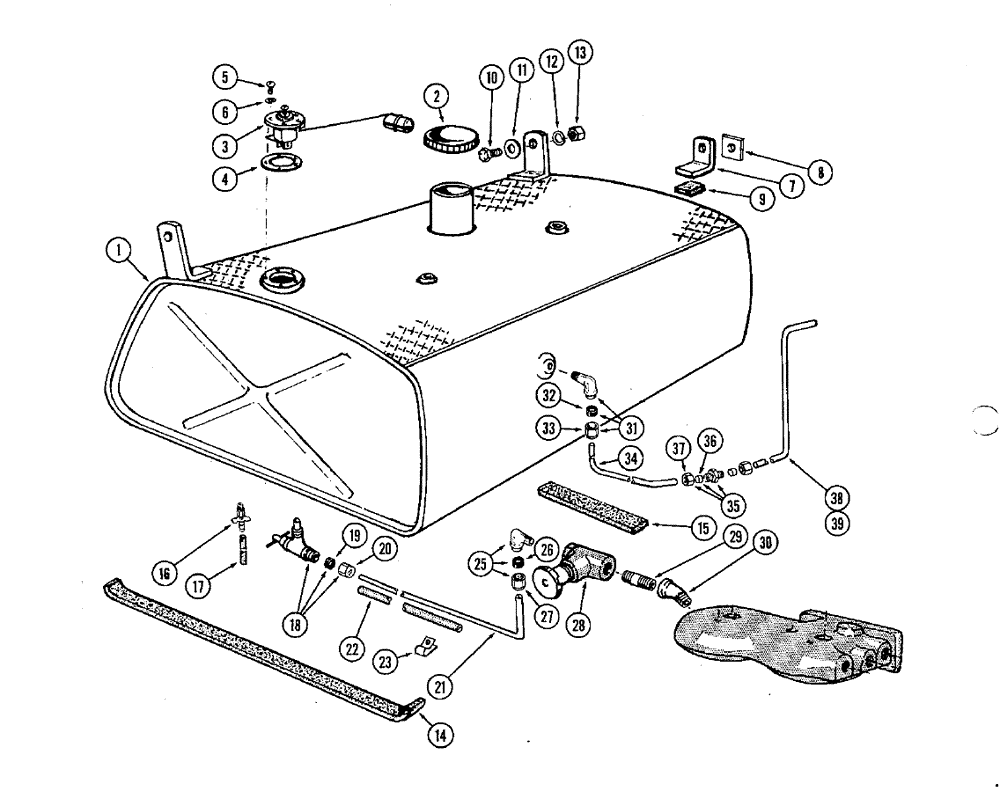

Запчасти Case IH 930-SERIES (030) - FUEL TANK AND LINES, DIESEL ENGINE (03) - FUEL SYSTEM

1

A23992

TANK - fuel

1шт.

2

A33558

CAP

- fuel tank

1шт.

3

A24004

SENDER UNIT

SENDER - fuel gauge

1шт.

4

A11822

GASKET

- fuel tank sending unit

1шт.

5

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10 x 3/8" N.F. rhd. mach. screw

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A24011

BRACE - fuel tank front

2шт.

8

A23988

SPACER - fuel tank support, upper

2шт.

9

A24005

CUSHION - fuel tank top

2шт.

10

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex

2шт.

10

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex

2шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" std. wrought

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

NUT - 5/16" N.F. hex

4шт.

14

A23991

CUSHION

- bottom, side

2шт.

15

A24006

CUSHION - fuel tank bottom, center

1шт.

16

217-107

VALVE

- fuel tank drain

1шт.

17

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Fuel tank drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

18

O9934AB

X

VALVE ASSY. - fuel shut-off, Includes Ref: 19 and 20

1шт.

19

222-104

SLEEVE,3/8" Tube

- (for 3/8" dia. tube)

1шт.

20

222-114

NUT,5/8"-24

NUT - (for 3/8" dia. tube)

1шт.

21

A24007

TUBE - fuel tank to first stage filter

1шт.

22

O7848AB

LOOM - A24007 fuel tank

1шт.

23

O6182AB

CLIP - A24007 fuel tank tube

1шт.

A24010

BRACKET - fuel tank tube clip (Not ill.)

1шт.

25

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, Includes Ref: 26 and 27

1шт.

26

222-104

SLEEVE,3/8" Tube

- (for 3/8" dia. tube)

1шт.

27

222-114

NUT,5/8"-24

NUT - (for 3/8" dia. tube)

1шт.

28

A23865

PUMP

- hand primer (at prim filter)

1шт.

29

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" x 1" close steel

1шт.

30

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 45deg. 1/4" brass street

1шт.

31

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSM. - leak-off line, Includes Ref: 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" dia. tube)

1шт.

34

A24009

TUBE - leak-off to tank, rear

1шт.

35

222-3

FITTING,1/2"-24 Flex Tube

UNION ASSM. - leak-off lines, Includes Ref: 36 and 37

1шт.

36

222-102

SLEEVE,1/4" Tube

2шт.

37

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" dia. tube)

2шт.

38

A24008

TUBE - relief valve to fuel tank, front (use with A23690 filter)

1шт.

39

A24777

TUBE - injector leak-off to fuel tank (use with A40435 filter)

1шт.
