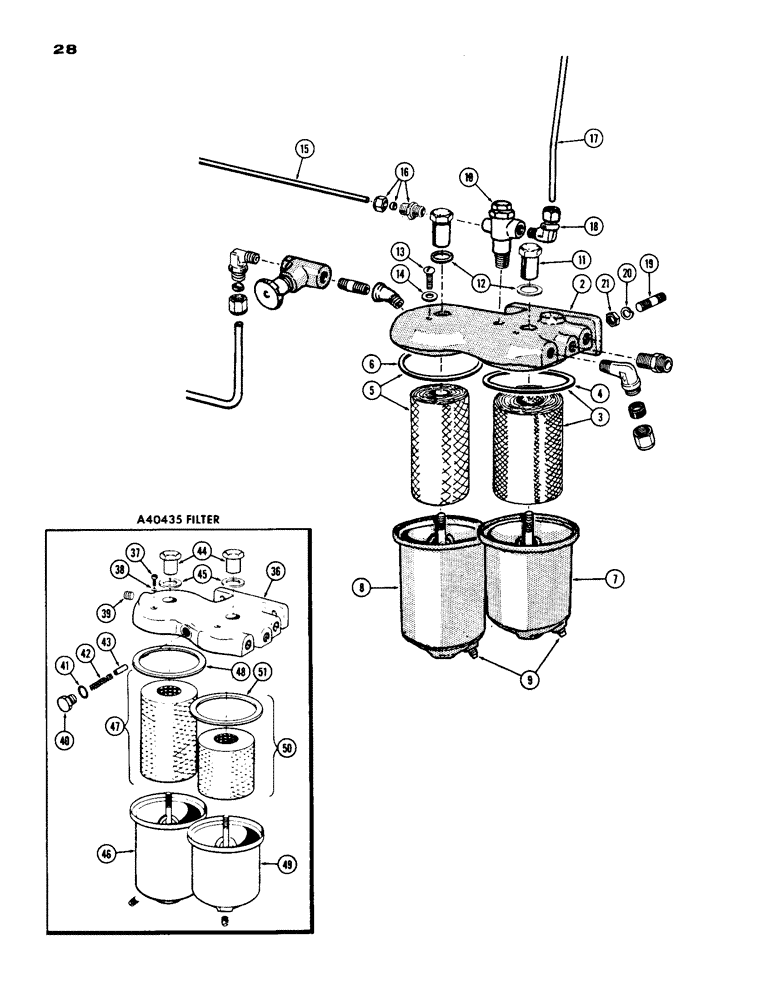

Запчасти Case IH 930-SERIES (028) - A23690 PRIMARY FILTER AND LINES, DIESEL ENGINE (03) - FUEL SYSTEM

A23690

SHAFT LOCK

FILTER ASSM. - primary (1st & 2nd stage), Includes Ref: 2 - 14

1шт.

2

A23691

HEAD - filter, 1st and 2nd stage (order A23690)

1шт.

3

A7627

FILTER, ELEMENT

ELEMENT ASSY. - 2nd stage, Includes Ref: 4

1шт.

4

O10345AB

X

GASKET - filter, Serial Range: body-hd.

1шт.

5

A21141

FILTER, ELEMENT

ELEMENT ASSY. - 1st. stage filter, Includes Ref: 6

1шт.

6

O10345AB

X

GASKET - filter, Serial Range: body-head

1шт.

7

A21132

BODY

- 2nd stage filter

1шт.

8

A21129

BODY

- 1st stage filter

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" P.T., sq. hd.)

2шт.

10

A20637

LOCK VALVE

VALVE - relief

1шт.

11

A21131

NUT

- first and 2nd stage filter body

2шт.

12

O10344AB

X

GASKET - body, Serial Range: nut-head

2шт.

13

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed screw

2шт.

14

A20662

GASKET

- bleed valve screw

2шт.

15

A24008

TUBE - relief valve to fuel tank, front

1шт.

16

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - 5/16" tube x 1/4" P.T.

1шт.

17

A23689

TUBE - injector leak-off to relief valve

1шт.

18

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/8" P.T.

1шт.

19

O1579AB

STUD - filter, Serial Range: head-block

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

A40435

FILTER

ASSM. - primary (1st & 2nd stage), Includes Ref: 36 - 51

1шт.

36

A24915

HEAD - filter, A40435 primary

1шт.

37

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, A40435 primary filter

2шт.

38

A20662

GASKET

WASHER - bleed screw, A40435 primary filter

2шт.

39

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - head (1/8" P.T., sq. hd.), A40435 primary filter

1шт.

40

A24916

PLUG

- relief valve, A40435 primary filter

1шт.

41

O8569AB

X

"O" RING - plug (1/2 x 11/16 x 3/32"), A40435 primary filter

1шт.

42

A24918

SPRING

- relief valve, A40435 primary filter

1шт.

43

A24917

PLUNGER

- relief valve, A40435 primary filter

1шт.

44

A21131

NUT

- body ret., A40435 primary filter

2шт.

45

O10344AB

X

GASKET - nut, A40435 primary filter

2шт.

46

A21129

BODY

- filter, 1st stage, A40435 primary

1шт.

47

A21141

FILTER, ELEMENT

ELEMENT ASSY. - 1st. stage filter (4-13/16 lg.), A40435 primary, Includes Ref: 48

1шт.

48

O10345AB

X

GASKET - body to head, A40435 primary filter

1шт.

49

A21132

BODY

- filter, 2nd stage, A40435 primary

1шт.

50

A7627

FILTER, ELEMENT

ELEMENT ASSM. - 2nd stage filter (3-7/8" lg.), A40435 primary, Includes Ref: 51

1шт.

51

O10345AB

X

GASKET - body to head, A40435 primary filter

1шт.
