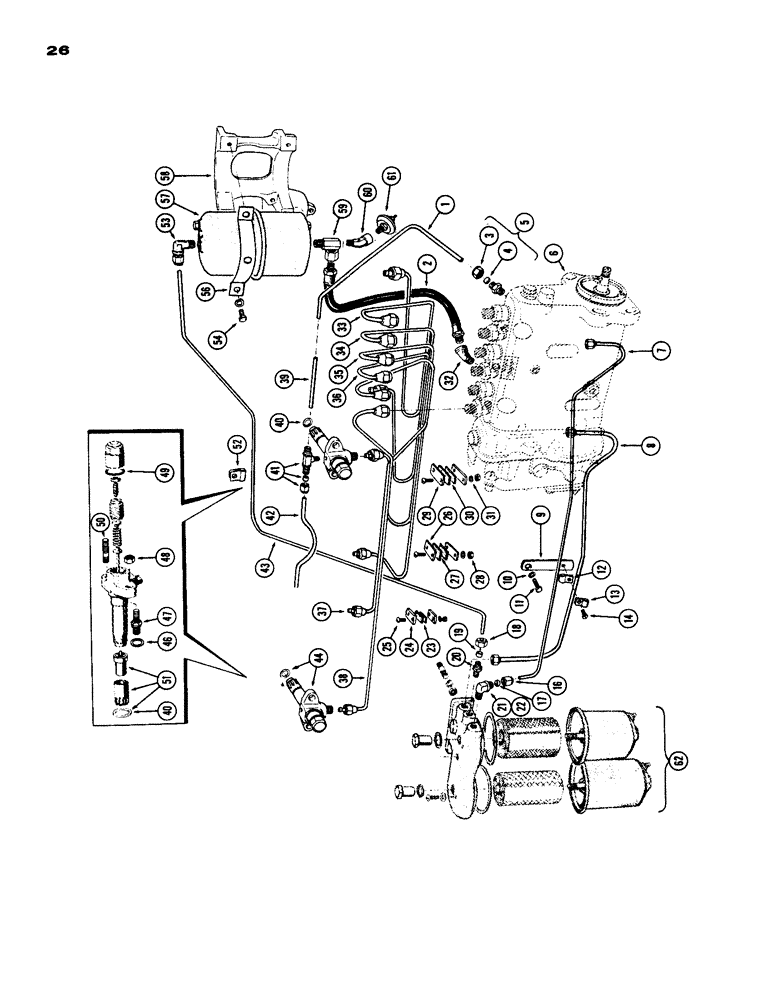

Запчасти Case IH 930-SERIES (026) - FUEL INJECTION SYSTEM, DIESEL ENGINE (03) - FUEL SYSTEM

1

A22186

TUBE

- fuel pump leak-off to #1 cyl.

1шт.

2

A20538

FUEL HOSE,0.38" ID x 8.50"

Final stage filter to fuel pump 0.38" ID x 8.50"

1шт.

3

87017024

TUBE NUT,1/2"-24

NUT - 1/4"

1шт.

4

222-102

SLEEVE,1/4" Tube

1шт.

5

O10604AB

X

VALVE - check, fuel pump leak-off (Incls. ref. nos. 3 & 4)

1шт.

6

A22637

FUEL PUMP ASSY. - (1600 RPM)

1шт.

7

A20693

TUBE

- second stage, Serial Range: filter-pump

1шт.

8

A20531

TUBE

- first stage, Serial Range: filter-pump

1шт.

9

A20537

SUPPORT - 1st & 2nd stage filter tube clips

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

A20688

CLIP

- A20693 tube

1шт.

13

O9649AB

CLIP - A20531 tube

1шт.

14

72-46

SCREW - 1/4 x 3/8" N.F. fillister hd. mach.

1шт.

16

222-114

NUT,5/8"-24

NUT - 3/8" for A20693 & A24007 tubes

1шт.

17

222-104

SLEEVE,3/8" Tube

- 3/8" for A20693 & A24007 tubes

1шт.

18

222-113

TUBE NUT,9/16"-24

NUT - 5/16"

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - 5/16" tube x 1/" P.T.

1шт.

21

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T.

2шт.

22

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 5/16" tube x 1/4" P.T.

2шт.

23

A20509

CUSHION

- injector tubes

2шт.

24

A20508

CLAMP

- injector tube (2 tubes)

2шт.

25

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10 x 1" N.C. rhd. mach.

8шт.

26

O9969AB

X

CLAMP - injector tube (3 tubes)

4шт.

27

O9972AB

X

CUSHION - injector tubes

4шт.

28

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

8шт.

29

O9970AB

X

CLAMP - injector tube (5 tubes)

2шт.

30

O9973AB

X

CUSHION - injector tubes

2шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

32

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 45deg. Brass street

1шт.

33

A20501

TUBE

- injector, #1 cyl.

1шт.

34

A20502

TUBE

- injector, #2 cyl.

1шт.

35

A20503

TUBE

- injector, #3 cyl.

1шт.

36

A20504

TUBE

- injector, #4 cyl.

1шт.

37

A20505

TUBE

- injector, #5 cyl.

1шт.

38

A20506

TUBE

- injector, #6 cyl.

1шт.

39

A20162

TUBE

- injector leak-off, upper

2шт.

40

O9847AB

X

GASKET - injector nozzle

6шт.

41

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- 1/4" tube x 1/8" P.T.

6шт.

42

O9978AB

X

TUBE - injector leak-off, lower

3шт.

43

A22184

TUBE

- 2nd stage to final filter

1шт.

44

A8013

NOZZLE INJECTION

NOZZLE - injector w/holder & gst.

6шт.

46

A10679

GASKET

- for A10678 stud

6шт.

47

A10678

STUD

- nozzle, holder large

6шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

12шт.

49

O10618AB

X

GAKSET - inj. press, adj. scr. protective cap

6шт.

50

O9848AB

X

STUD - nozzle holder, small

6шт.

51

O9845AB

X

NOZZLE - inj. w/09847 AB gasket

6шт.

52

A7922

CLIP

- 2nd stage to final stage filter tube

1шт.

53

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 5/16" tube x 1/4" P.T.

1шт.

54

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

56

A21144

CLAMP

- final stage filter

2шт.

57

O9985AB1

FILTER - fuel, final stage

1шт.

58

A22183

BRACKET - final stage fuel filter

1шт.

59

A20539

FITTING

UNION - 90deg. adapter, A21070 hose to final filter

1шт.

60

221-1401

ELBOW,45º, 1/8"-27, NPT

- 45deg. galv. iron street

1шт.

61

A13794

TRANSMITTER

SWITCH - fuel pressure

1шт.

62

A23690

SHAFT LOCK

FILTER - primary (See page 29)

1шт.

62

A40435

FILTER

- primary (See page 29)

1шт.
