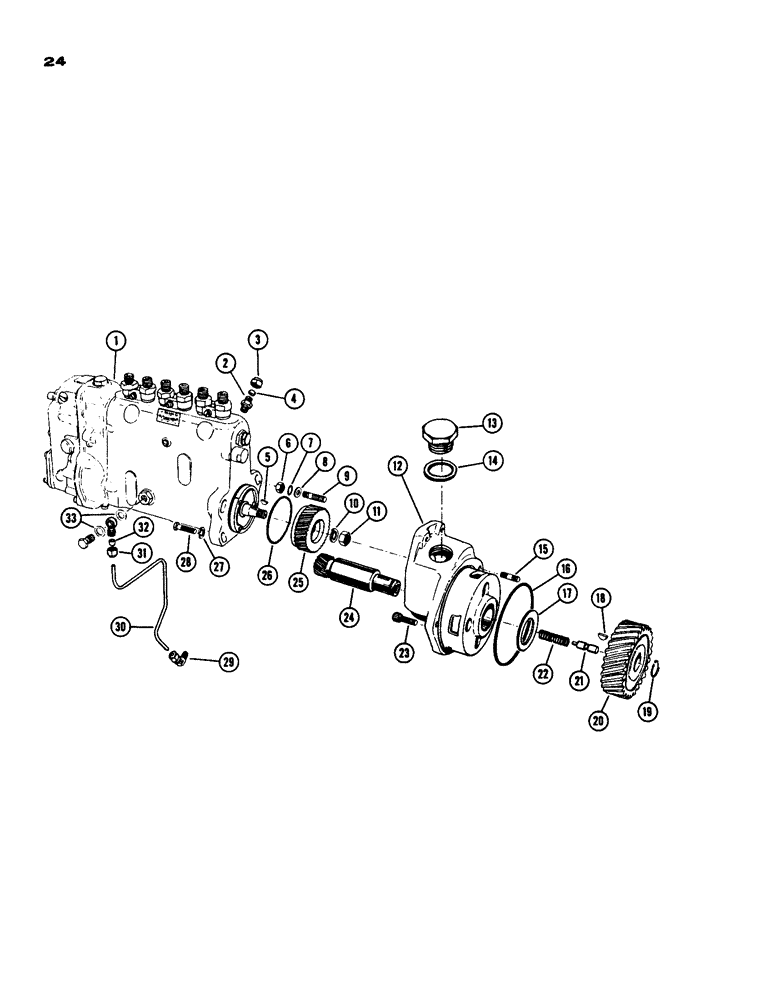

Запчасти Case IH 930-SERIES (024) - MULTIPLUNGER FUEL PUMP, DIESEL ENGINE (03) - FUEL SYSTEM

1

A22637

FUEL PUMP Robert Bosch No. PES6A-80B- 420LS-445 (1600 RPM)

1шт.

2

O10604AB

X

VALVE - check, fuel pump leak-off

1шт.

3

87017024

TUBE NUT,1/2"-24

NUT tube fitting

1шт.

4

222-102

SLEEVE,1/4" Tube

1шт.

5

A20933

KEY

Woodruff

1шт.

6

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex

3шт.

7

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

8

195-25

WASHER,3/8"

SAE plain 3/8"

4шт.

9

A20664

STUD fuel, Serial Range: pump-hsg.

2шт.

10

WASHER fuel pump shaft (svc/Bosch Dealer)

1шт.

11

NUT fuel pump shaft (svc/Bosch Dealer)

1шт.

12

A21136

HOUSING fuel pump drv. (includes bshg.)

1шт.

13

A21140

PLUG

timing window

1шт.

14

O9892AB

STUD

GASKET timing hole plug

1шт.

15

O1579AB

STUD drive hsg. to cyl. blk.

1шт.

16

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING drive hsg.

1шт.

17

O9745AB

X

WASHER drive shaft thrust

1шт.

18

126-66

WOODRUFF KEY

KEY Woodruff, drive shaft

1шт.

19

O9016AB

X

RING retaining

1шт.

20

A20899

GEAR WHEEL

GEAR fuel pump drv. on pinion

1шт.

21

O9725AB

X

PLUNGER drive shaft

1шт.

22

O9726AB

X

SPRING drv. shaft thrust plunger

1шт.

23

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT 3/8" x 1-1/4" N.C. hex. socket hd.

1шт.

24

A20622

GEAR

SHAFT AND PINION fuel pump

1шт.

25

A21139

GEAR

fuel pump drv. (to pump shaft)

1шт.

26

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING fuel pump to hsg.

1шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

29

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1шт.

30

A22640

TUBE

oil gallery to fuel pump

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT tube fitting

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

A22381

WASHER

lube oil fitting to fuel pump

2шт.
