Запчасти Case IH 930-SERIES (022) - THROTTLE CONTROL, DIESEL ENGINE (03) - FUEL SYSTEM

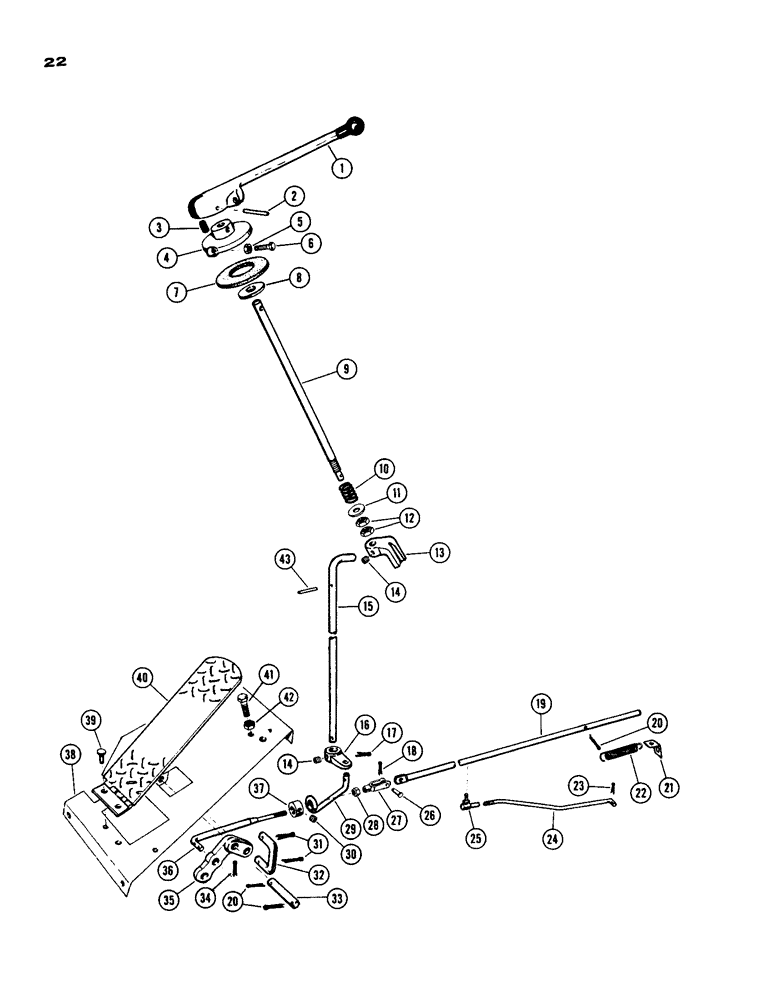

Схема запчастей Case IH 930-SERIES - (022) - THROTTLE CONTROL, DIESEL ENGINE (03) - FUEL SYSTEM
36
38
10
12
11
26
13
24
28
27
21
19
25
8
3
39
29
14
20
4
30
33
22
14
6
9
43
23
35
17
32
18
37
2
15
42
16
20
40
41
34
7
1
5
31

Артикул

Название

Примечание

Количество

1

A23784

LEVER

throttle hand

1шт.

2

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

3

A8012

SPRING

throttle lever

1шт.

4

A23916

PLATE throttle lever

1шт.

5

25-104

NUT,1/4"-20, G5

2шт.

6

A20431

SCREW throttle stop

2шт.

7

A11969

GASKET

DISC throttle friction

1шт.

8

A32838

WASHER

DISC - throttle hand lever friction

1шт.

9

A23918

SHAFT throttle upper

1шт.

10

A34113

SPRING

- throttle shaft

1шт.

11

195-33

WASHER,1/2"

plain 1/2"

1шт.

12

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2" N.F. hex jam

2шт.

13

A23917

FORK

throttle shaft, upper

1шт.

14

83-47

SET SCREW,Hex Soc, 1/4"-20 x 7/16"

1/4" x 7/16" N.C. sckt.

2шт.

15

A23919

SHAFT throttle, lower

1шт.

16

A23922

LEVER

lower throttle shaft

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

18

136-105

COTTER PIN 1/16" x 1/2"

1шт.

19

A23936

ROD throttle, front

1шт.

20

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.

21

A22260

CLIP throttle spring

1шт.

22

A22619

SPRING

throttle front

1шт.

23

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

24

A22245

ROD

LINK throttle front

1шт.

25

A10326

BALL JOINT

- front throttle rod

1шт.

26

141-1

CLEVIS PIN,3/16" x .580"

PIN - yoke

1шт.

27

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE throttle rod

1шт.

28

129-27

NUT,Hex, #10 - 32

#10 N.F. hex. mach. screw

1шт.

29

A23930

ROD hand throttle control

1шт.

30

84-45

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

1/4" x 5/16" N.F. sckt. hd.

1шт.

31

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

32

A23925

LINK foot, Serial Range: pedal-lever

1шт.

33

A23927

PIN foot control lever

1шт.

34

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

35

A23926

LEVER foot control

1шт.

36

A23928

ROD throttle control, rear

1шт.

37

A23929

COLLAR

throttle control

1шт.

38

A23866

SUPPORT throttle foot control

1шт.

39

48-410

RIVET - 1/4" x 5/8" oval hd.

2шт.

40

A20544

PEDAL foot throttle

1шт.

41

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT 1/4" x 1-1/2" N.F. hex

1шт.

42

25-114

NUT,1/4"-28, G5

1/4" N.F. hex

1шт.

43

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

Выбрано товаров: 43
