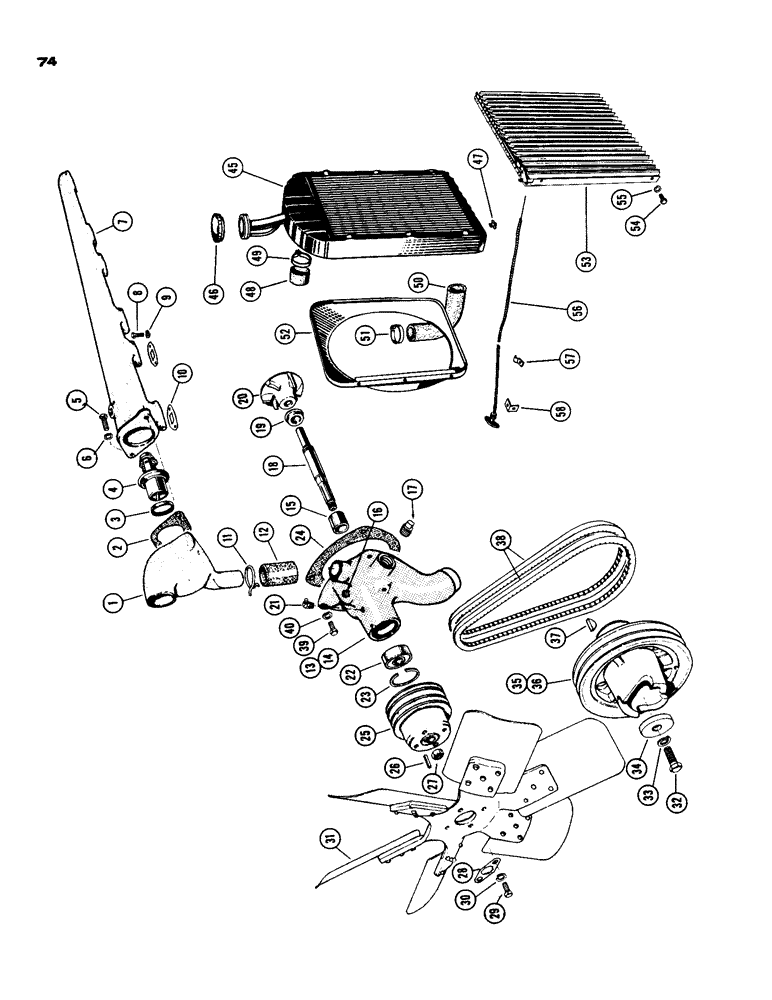

Запчасти Case IH 930-SERIES (074) - WATER PUMP AND WATER MANIFOLD (02) - ENGINE

1

A20921

HOUSING - thermostat

1шт.

2

A11421

GASKET

- thermostat housing

1шт.

3

A11423

SEAL

- thermostat

1шт.

4

A7634

THERMOSTAT

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

A11419

HOSE ASSY.

MANIFOLD - water

1шт.

8

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

12шт.

9

92-5

LOCK WASHER,5/16"

12шт.

10

O9804AB1

X

GASKET - water manifold

6шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

12

A11887

HOSE,1.50" ID x 2.75", SAE 20R2

- Water by-pass 1.50" ID x 2.75", SAE 20R2

1шт.

13

A24809

PUMP

WATER PUMP - complete, Includes Ref: 14 - 23

1шт.

14

A24992

THRUST WASHER

BODY ASSY, Includes Ref: 15 - 17

1шт.

15

O9798AB

X

BUSHING

1шт.

16

221-1843

PLUG

- 3/8" P.T. socket hd.

1шт.

17

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - 3/4" P.T. socket hd.

1шт.

18

A23636

SHAFT

- water pump & fan

1шт.

19

A24995

SEAL

- pump shaft

1шт.

20

6327A

IMPELLER

1шт.

21

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" 67-1/2deg.

1шт.

22

O7086AB

X

BEARING - shaft (N.D. 8604)

1шт.

23

O7084AB

X

SNAP RING - bearing

1шт.

24

O9797AB

GASKET

-, Serial Range: pump-block

1шт.

25

A21460

PULLEY

- fan

1шт.

26

A21075

KEY

-, Serial Range: pulley-shaft

1шт.

27

A15488

NUT - fan pulley

1шт.

28

O3155AB

X

LOCK - fan nut

1шт.

29

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

A23106

HALF BLADE

FAN - radiator

1шт.

32

O10282AB

X

BOLT - lower fan drive pulley

1шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

34

A23229

WASHER

- lower fan drive pulley

1шт.

35

A21455

X

PULLEY - fan drive, crankshaft

1шт.

36

A23644

PULLEY

- fan drive (w/o hand crank)

1шт.

37

216-129

KEY -, Serial Range: pulley-crankshaft

1шт.

38

A33679

SET OF BELTS,49.25" L

BELT , Fan drive (Set of 2) 49.25" L

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

40

92-6

LOCK WASHER,3/8"

3шт.

A24180

KIT

- repair, water pump (includes ref. 15, 18 19, 20, 22, 23, 24, 26 and 28)

1шт.

45

A33459

RADIATOR

and shutter

1шт.

46

A21389

CAP

- radiator pressure (4 lb.), and shutter

1шт.

47

O9739AB

X

VALVE - radiator drain, and shutter

1шт.

48

A15395

RADIATOR HOSE,2.50" ID x 5.25" , SAE 20R2

2.50" ID x 5.25", SAE 20R2, Inlet and Shutter

1шт.

49

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, radiator and shutter

2шт.

50

A34079

HOSE ASSY.,2.03" ID, 2.28" ID x 6.10", SAE 20R4 CLASS D-1 OR D-2

RADIATOR HOSE, , Radiator to Water Pump and Shutter 2.03" ID, 2.28" ID x 6.10", SAE 20R4 CLASS D-1 OR D-2

1шт.

51

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, radiator and shutter

2шт.

52

A20925

SHROUD - radiator, and shutter

1шт.

53

A21604

SHUTTER - radiator

1шт.

54

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Radiator and shutter Hex, 1/4"-28 x 1/2", G5, Full Thd

4шт.

55

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Radiator and shutter 1/4"

4шт.

56

A24105

CONTROL - shutter, and radiator

1шт.

57

O8320AB

X

CLIP - shutter control cable, and radiator

1шт.

58

A11795

SUPPORT - rear shutter control, and radiator

1шт.
