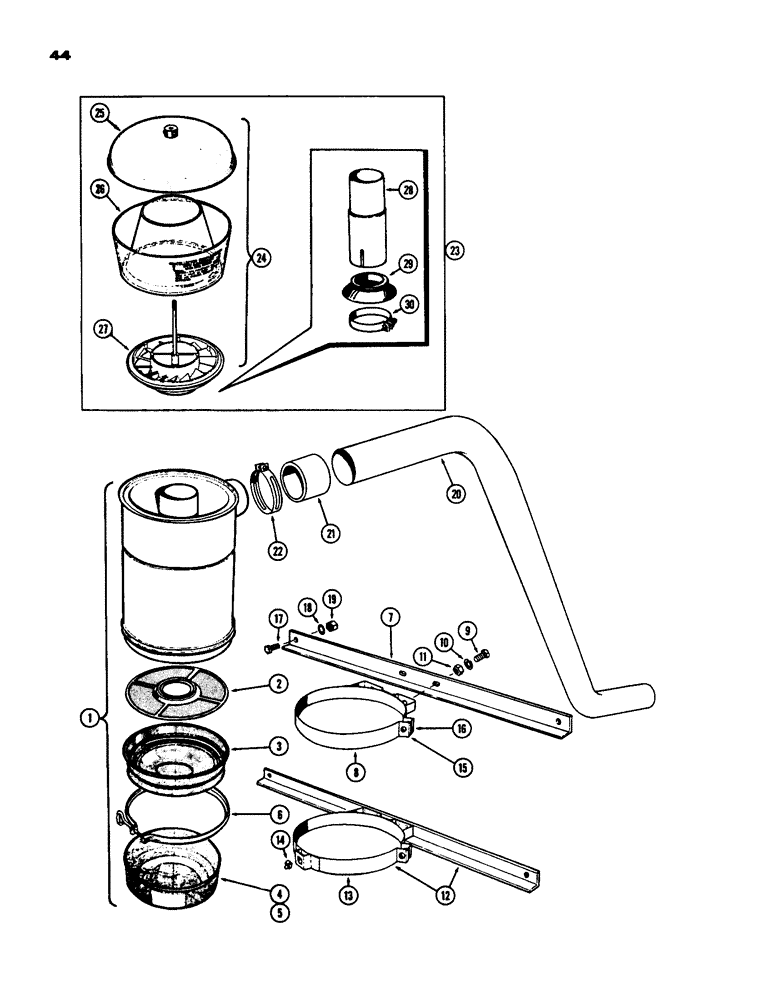

Запчасти Case IH 930-SERIES (044) - AIR CLEANER AND PRE-SCREENER, SPARK IGNITION ENGINE (02) - ENGINE

1

A23804

CLEANER

AIR CLEANER ASSY. (Req. extension) (use with A24435)

1шт.

1

A24568

AIR CLEANER ASSY. - (w/lg. center pipe) (extension not req.) (use with 73184), Includes Ref: 2 - 6

1шт.

2

A24178

SCREEN

- air cleaner

1шт.

3

A24179

BAFFLE - inner, oil cup

1шт.

4

A24177

X

CUP - air cleaner oil bath assy. for A23804

1шт.

5

A24570

X

CUP - air cleaner oil bath assy. for A24568

1шт.

6

O10475AB

X

CLAMP - oil cup

1шт.

7

A23786

BRACE - upper

1шт.

8

A23807

BAND - air cleaner mtg., upper

1шт.

9

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

12

A23805

BRACE - air cleaner & mtg. band, lower, Includes Ref: 13

1шт.

13

A23806

BAND - air cleaner mtg., lower

1шт.

14

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4"-20 Tinnerman speed grip

1шт.

15

76-424

SCREW - 1/4" x 1-1/2" N.F. rhd.

2шт.

16

25-294

NUT - 1/4" N.F. sq.

2шт.

17

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

18

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.

19

25-115

NUT,5/16"-24, G5

- 5/16" N.C. hex

4шт.

20

A23808

TUBE - air, Serial Range: cleaner-carburetor

1шт.

21

A20197

HOSE ASSY.

HOSE - air, Serial Range: cleaner-tube

2шт.

22

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

23

A24435

KIT - pre-cleaner (machinery item), Includes Ref: 24 - 30

1шт.

24

A64589

PRECLEANER

PRE-CLEANER - air cleaner, Includes Ref: 25 - 27

1шт.

25

73187

COVER

- pre-screener

1шт.

26

365413R1

BOWL

- pre-screener

1шт.

27

NSS

NOT SOLD SEPARAT

BASE - air baffle (Order 73184)

1шт.

28

A24392

EXTENSION

- air stack

1шт.

29

A24393

SHIELD

- air intake tube

1шт.

30

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - air intake tube

1шт.
