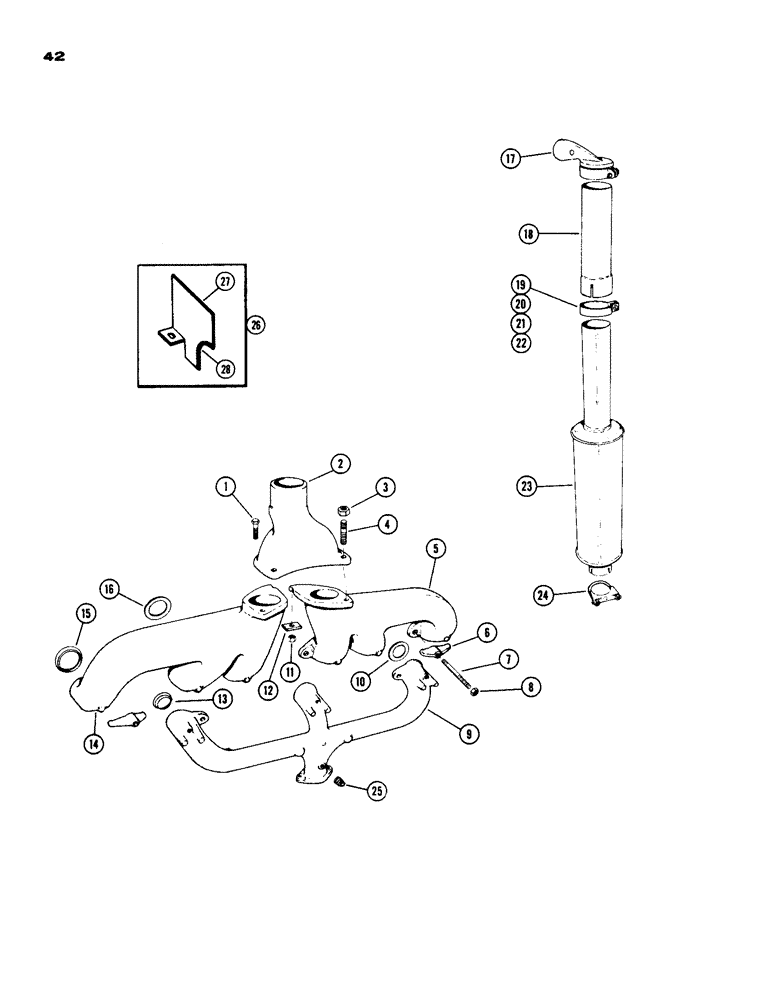

Запчасти Case IH 930-SERIES (042) - MANIFOLDS AND MUFFLER, SPARK IGNITION ENGINE (02) - ENGINE

1

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

1/2" x 1-3/4" N.F. hex

1шт.

2

A23861

PIPE, EXHAUST SYSTEM

STACK exhaust

1шт.

3

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

2шт.

4

O3784AB

STUD exhaust, Serial Range: manifold-stack

2шт.

5

A23860

MANIFOLD exhaust, rear

1шт.

6

A24368

CLAMP

intake and exhaust manifold

6шт.

7

O9817AB

X

STUD intake & exhaust manf.clamp

6шт.

8

25-117

NUT,7/16"-20, G5

7/16" N.F. hex

6шт.

9

A9510

MANIFOLD intake

1шт.

10

A7363

MANIFOLD GASKET

intake manifold

3шт.

11

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

1шт.

12

O9753AB

CLAMP exhaust stack

1шт.

13

O886AB

X

FERRULE intake manifold

3шт.

14

A23859

MANIFOLD exhaust, front

1шт.

15

A21635

FERRULE

- exhaust manf.

6шт.

16

O9815AB

X

GASKET - exhaust manf.

6шт.

17

A33743

CAP

- weather

6шт.

18

A24112

EXTENSION

muffler center tube

1шт.

19

A24113

CLAMP

muffler extension

1шт.

20

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

129-122

NUT,5/16"-24, G5

1шт.

23

A24103

MUFFLER

1шт.

24

O6797AB

X

CLAMP muffler

1шт.

25

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PIPE PLUG - 1/8" sq. hd.

4шт.

26

A24684

HEAT DEFLECTOR ASSY., Includes Ref: 27 and 28

1шт.

27

A4685

BAFFLE - head deflector

1шт.

28

A24686

CUSHION - heat deflector baffle

1шт.
