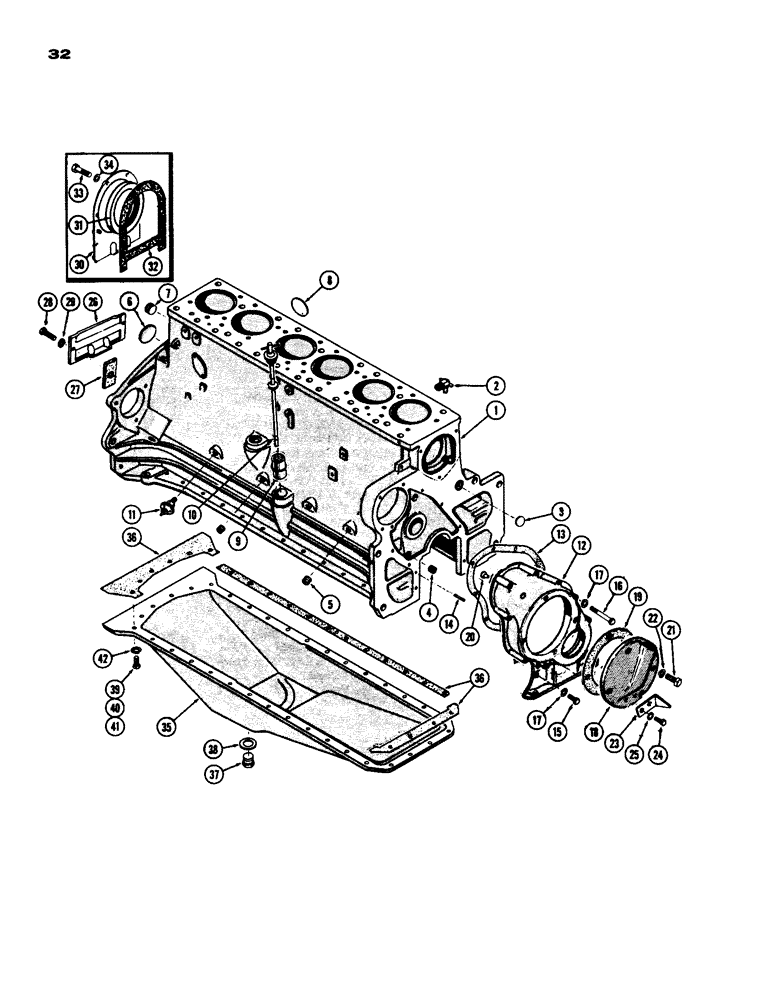

Запчасти Case IH 930-SERIES (032) - CYLINDER BLOCK AND TIMING GEAR COVER, SPARK IGNITION ENGINE (02) - ENGINE

A23521

BLOCK - stripped engine (Consists of short block, pistons, sleeves, connecting rods & crankshaft)

1шт.

1

A23491

BLOCK

- cyl. w/brg. caps, camshaft bshg. & plugs

1шт.

2

O9739AB

X

VALVE - water drain

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup

1шт.

4

221-1843

PLUG

- 3/8" hex. socket hd. pipe

4шт.

5

221-41

PLUG

- 1/8" slotted hd. pipe

5шт.

6

A24361

PLUG

- cup, rear camshaft hole

1шт.

7

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - 1 sq. hd. pipe

1шт.

8

41-1622

PLUG,Cup, 1 3/8", Stainless

- cup, cyl. block

1шт.

9

A20714

X

SOCKET - lube oil level gauge

1шт.

10

A20739

GAUGE

- lube oil level bayonet

1шт.

11

A13794

TRANSMITTER

SWITCH - lube oil pressure

1шт.

12

A20703

COVER - timing gear, w/thrust button, dowel pins and oil seal

1шт.

13

A33018

GASKET

- timing gear cover

1шт.

14

O9710AB

PIN - dowel, timing gear cover

2шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex.

8шт.

17

92-6

LOCK WASHER,3/8"

10шт.

18

A20833

CAP - timing gear cover w/thrust button

1шт.

19

O9752AB

X

GASKET - timing gear cover cap

1шт.

20

O9754AB

BUTTON - thrust, timing gear cover & cover cap.

2шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

O10853AB

POINTER - timing

1шт.

24

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

25

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" Shakeproof ext.-int.

2шт.

26

6304A

BAFFLE - engine oil pan, rear (Order A32182 & A32830)

1шт.

27

O9711AB

X

GASKET - baffle plate

2шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A32182

RETAINER

- rear oil seal

1шт.

31

A23085

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2")

1шт.

32

A32830

GASKET

- retainer

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

34

92-6

LOCK WASHER,3/8"

6шт.

35

A23637

PAN - oil

1шт.

36

4790AA

X

GASKET KIT - oil pan

1шт.

37

A14280

PLUG

- oil pan drain

1шт.

38

O9844AB

X

GASKET - oil pan drain plug

1шт.

39

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

33шт.

40

113-230

X

BOLT - 3/8" x 1-1/4" N.C. hex. w/insert, oil pan

1шт.

41

A9936

BOLT - oil pan and brthr. tube brkt.

2шт.

42

92-6

LOCK WASHER,3/8"

oil pan 3/8"

34шт.
