Запчасти Case IH 930-SERIES (020) - AIR CLEANER AND PRE-SCREENER, DIESEL ENGINE (02) - ENGINE

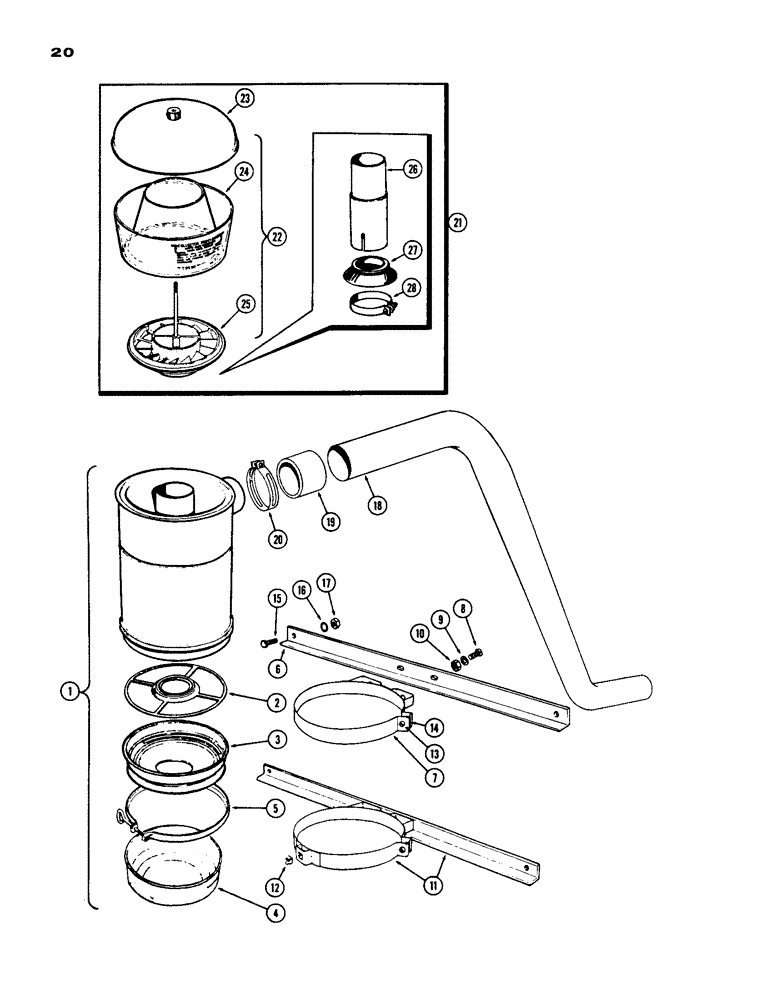

Схема запчастей Case IH 930-SERIES - (020) - AIR CLEANER AND PRE-SCREENER, DIESEL ENGINE (02) - ENGINE
9
18
4
10
6
20
24
28
14
23
21
19
12
3
2
27
26
17
22
7
8
11
15
25
13
5
16
1

Артикул

Название

Примечание

Количество

1

A23801

AIR CLEANER ASSY - (req. extension) (use w/A24434)

1шт.

1

A24569

AIR CLEANER ASSY. - (w/long center pipe) (extension not req.) (Use with A24391), Includes Ref: 2 - 28

1шт.

2

A24174

SCREEN - air cleaner

1шт.

3

A24176

BAFFLE - inner, oil cup

1шт.

4

A24173

CUP - air cleaner oil bath

1шт.

5

A24175

CLAMP - oil cup

1шт.

6

A23786

BRACE - upper

1шт.

7

A10867

BAND - air cleaner, upper

1шт.

8

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

11

A23798

BAND - air cleaner, lower

1шт.

12

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4"-20 Tinnerman speed grip

1шт.

13

76-424

SCREW - 1/4" x 1-1/2" N.F. rhd. mach.

2шт.

14

25-294

NUT - 1/4" N.F. sq.

2шт.

15

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

16

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.

17

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

18

A23803

TUBE

- air intake

1шт.

19

A23802

HOSE

- air intake tube, both ends

2шт.

20

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose #20

4шт.

21

A24434

KIT - pre-cleaner (machinery item), Includes Ref: 22 - 28

1шт.

22

A24391

AIR CLEANER

PRE-CLEANER - air cleaner

1шт.

23

73187

COVER

- pre-cleaner, and nut

1шт.

24

365413R1

BOWL

- pre-cleaner

1шт.

25

NSS

NOT SOLD SEPARAT

BASE - air baffle (order A24391)

1шт.

26

A24389

EXTENSION - air stack

1шт.

27

A24390

SHIELD

- air intake tube

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - air stack extension

1шт.

Выбрано товаров: 29
