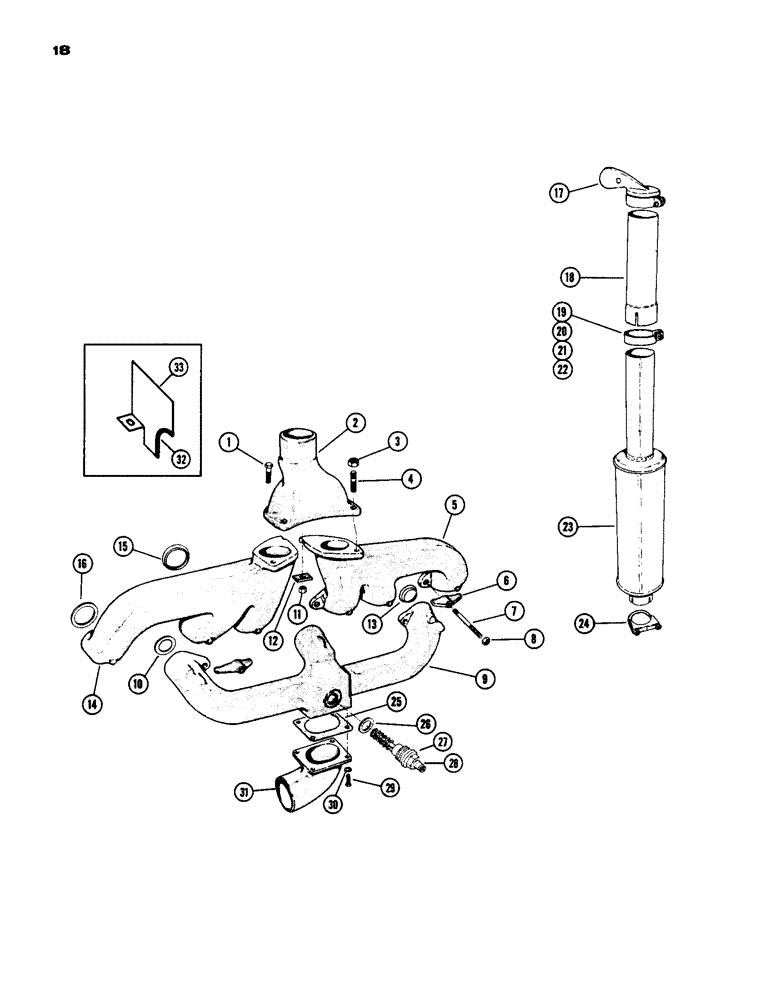

Запчасти Case IH 930-SERIES (018) - MANIFOLDS AND MUFFLER, DIESEL ENGINE (02) - ENGINE

1

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

1/2" x 1-3/4" N.F. hex

1шт.

2

A23861

PIPE, EXHAUST SYSTEM

STACK - exhaust

1шт.

3

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

2шт.

4

O3784AB

STUD exhaust, Serial Range: manifold-stack

2шт.

5

A23860

MANIFOLD exhaust, rear

1шт.

6

A24368

CLAMP

intake and exhaust manifold

6шт.

7

O9817AB

X

STUD intake & exhaust manif. clamp

6шт.

8

25-117

NUT,7/16"-20, G5

7/16" N.F. hex

6шт.

9

A20700

MANIFOLD intake

6шт.

10

A11888

MANIFOLD GASKET

intake manifold

3шт.

11

25-118

NUT,1/2"-20, G5

1/2" N.F. hex

1шт.

12

O9753AB

CLAMP exhaust stack

1шт.

13

A21383

CAP

FERRULE intake manifold

3шт.

14

A23859

MANIFOLD exhaust front

1шт.

15

A11837

FERRULE

- exhaust manifold

6шт.

16

A11889

GASKET

exhaust manifold

6шт.

17

A33743

CAP

- weather

1шт.

18

A24112

EXTENSION

muffler center tube

1шт.

19

A24113

CLAMP

muffler extension

1шт.

20

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

129-122

NUT,5/16"-24, G5

1шт.

23

A24103

MUFFLER

1шт.

24

O6797AB

X

CLAMP muffler

1шт.

25

A20678

GASKET

intake manifold elbow

1шт.

26

A20916

MANIFOLD GASKET

GASKET manifold heater

1шт.

27

A24396

X

HEATER manifold

1шт.

28

129-503

NUT,1/4"-20, Brass

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

A23863

ELBOW intake manifold

1шт.

32

A24683

MOLDING heat deflector baffle

1шт.

33

A24682

BAFFLE heat deflector

1шт.
