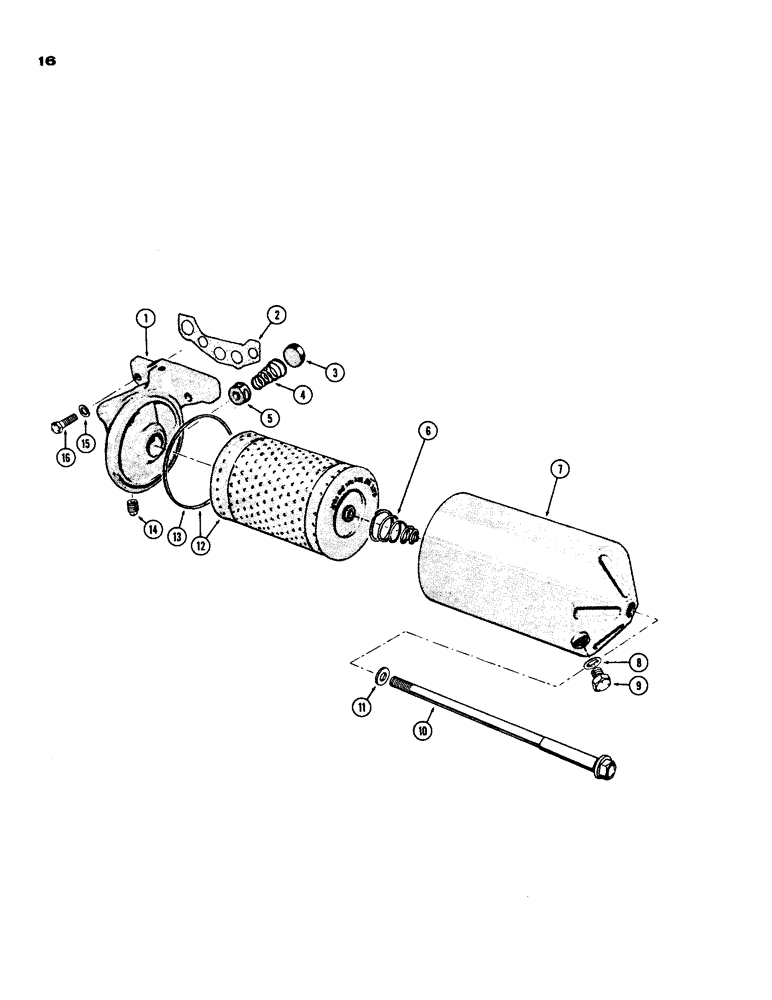

Запчасти Case IH 930-SERIES (016) - OIL FILTER, DIESEL ENGINE (02) - ENGINE

1

A23474

BASE

full flow lube oil filter

1шт.

2

A21084

GASKET

lube oil filter

1шт.

3

41-1620

PLUG,Cup, 1 1/4", Stainless

lube oil filter relief valve

1шт.

4

A21091

VALVE SPRING

SPRING lube oil filter relief valve

1шт.

5

A21090

VALVE

lube oil filter relief

1шт.

6

A20427

VALVE SPRING

SPRING pipe

1шт.

7

A20824

SHELL

1шт.

8

A20827

WASHER drain plug

1шт.

9

A20826

PLUG

drain

1шт.

10

A20825

PIPE

stand

1шт.

11

A20426

GASKET

pipe

1шт.

12

A20822

ENGINE OIL FILTER

ELEMENT filter includes A20429 gasket

1шт.

13

A20429

GASKET

, Serial Range: shell-base

1шт.

14

221-1843

PLUG

- (3/8" P.T., sckt. hd.)

1шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.
