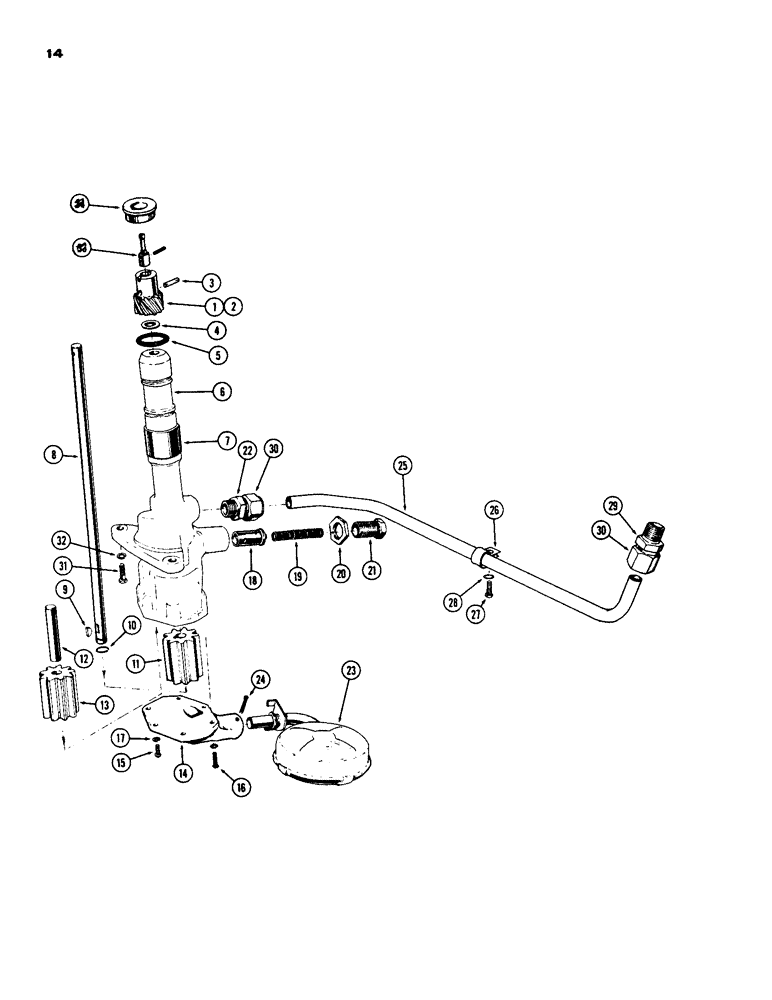

Запчасти Case IH 930-SERIES (014) - OIL PUMP AND TACHOMETER DRIVE, DIESEL ENGINE (02) - ENGINE

A33878

PUMP

ASSY. - oil (w/steel gear) (see item) (Also see camshaft data page 11B)

1шт.

A33443

PUMP

ASSY. - oil (w/cast gear) (see item 2) (Also see camshaft data page 11B), Includes Ref: 1 - 5

1шт.

1

A33840

GEAR WHEEL

GEAR - pump drive (tin plated, steel) (Used w/A33839 camshaft only)

1шт.

2

6453A

X

GEAR - pump drive (copper plated, cast) (Used w/A23513 or A23486 camshaft only)

1шт.

3

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, , Gear 3/16" x 1", Type A, Hardened

1шт.

4

O9732AB

X

WASHER - thrust, drive gear

1шт.

5

O8380AB

X

"O" RING - hsg. (1-3/16 x 1-7/16 x 1/8")

1шт.

6

A21094

BODY

ASSY. - pump, Includes Ref: 7 - 21

1шт.

7

A21079

SLEEVE

- pump body

1шт.

8

A21102

SHAFT

- pump drive

1шт.

9

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Driven gear #5, 1/8" x 5/8"

1шт.

10

A10916

RING, SNAP

RING - snap, shaft ret.

1шт.

11

O9730AB

X

GEAR - driven (w/key way)

1шт.

12

O9729AB

SHAFT - idler

1шт.

13

O9731AB

X

GEAR - idler (w/out key way)

1шт.

14

A33442

COVER - pump body

1шт.

15

75-412

SCREW,Rd, 1/4" x 3/4"

- cover (1/4" x 3/4" N.C. rd. hd.)

5шт.

16

75-424

SCREW

- cover (1/4 x 1-1/2" N.C. rd. hd.)

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

18

A22566

PLUNGER

- relief valve

1шт.

19

A23598

VALVE SPRING

SPRING - relief valve

1шт.

20

O9735AB

NUT - lock, adjusting screw

1шт.

21

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, relief valve

1шт.

22

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR ASSY. - (incl. item 30)

1шт.

23

O8766AB

SCREEN - float

1шт.

24

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

25

A20735

TUBE

-, Serial Range: pump-filter

1шт.

26

A10852

CLIP - tube

1шт.

27

A10072

BOLT,3/8" - 16 x 3/4"

- clip

1шт.

28

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

29

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR ASSY., Includes Ref: 30

1шт.

30

222-106

SLEEVE,5/8" Tube

- (for 5/8" O.D. tube)

1шт.

30

222-116

TUBE NUT,1"-18

NUT - (for 5/8" O.D. tube)

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Body Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

A11195

PLUG

- tachometer drive

1шт.

34

A24528

ADAPTER

- tachometer

1шт.
