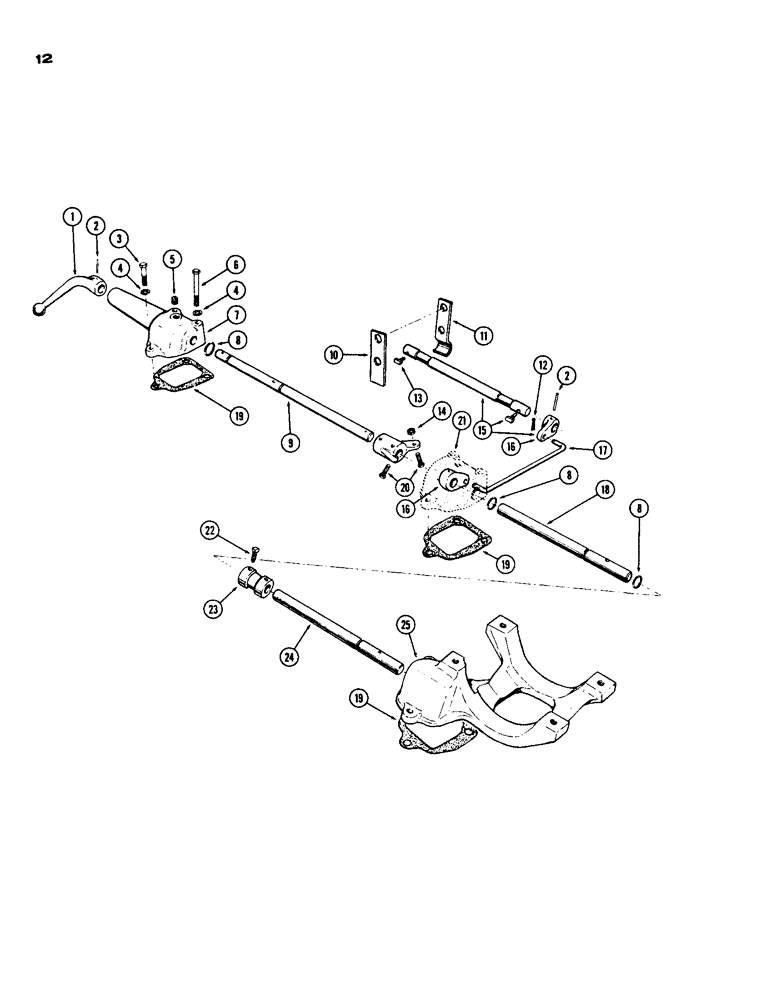

Запчасти Case IH 930-SERIES (012) - DECOMPRESSOR, DIESEL ENGINE (02) - ENGINE

1

6368A

LEVER hand, decompressor control

1шт.

2

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

7шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

4

92-5

LOCK WASHER,5/16"

9шт.

5

221-41

PLUG

PIPE PLUG 1/8" P.T. slotted head

2шт.

6

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16" x 1-3/4" N.C. hex

6шт.

7

6457A

HOUSING decompressor control shaft, rear

1шт.

8

O9787AB

X

"O" RING decompressor control shaft

5шт.

9

A24029

SHAFT decompressor control rear

1шт.

10

O9783AB

BRACKET bottom,. decomp. shaft

6шт.

11

O9782AB

BRACKET top decomp. shaft

6шт.

12

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

6шт.

13

A23095

AXLE PIN

PIN decompressor trip

6шт.

14

25-104

NUT,1/4"-20, G5

4шт.

15

A23096

SHAFT decomp. with lever and trip pin

3шт.

16

6418A

LEVER decompressor control

6шт.

17

O9790AB

LINK decompressor control

3шт.

18

O9786AB

SHAFT decompressor control, center

1шт.

19

A22939

GASKET

decompressor control housing

3шт.

20

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

21

6324A

HOUSING decompressor control lever

1шт.

22

O9788AB

X

SCREW set, decompressor shaft coupling

4шт.

23

O9789AB

COUPLING decompressor control shaft

1шт.

24

O9785AB

SHAFT decompressor control, front

1шт.

25

A22183

HOUSING decompressor control, and final filter bracket

1шт.
