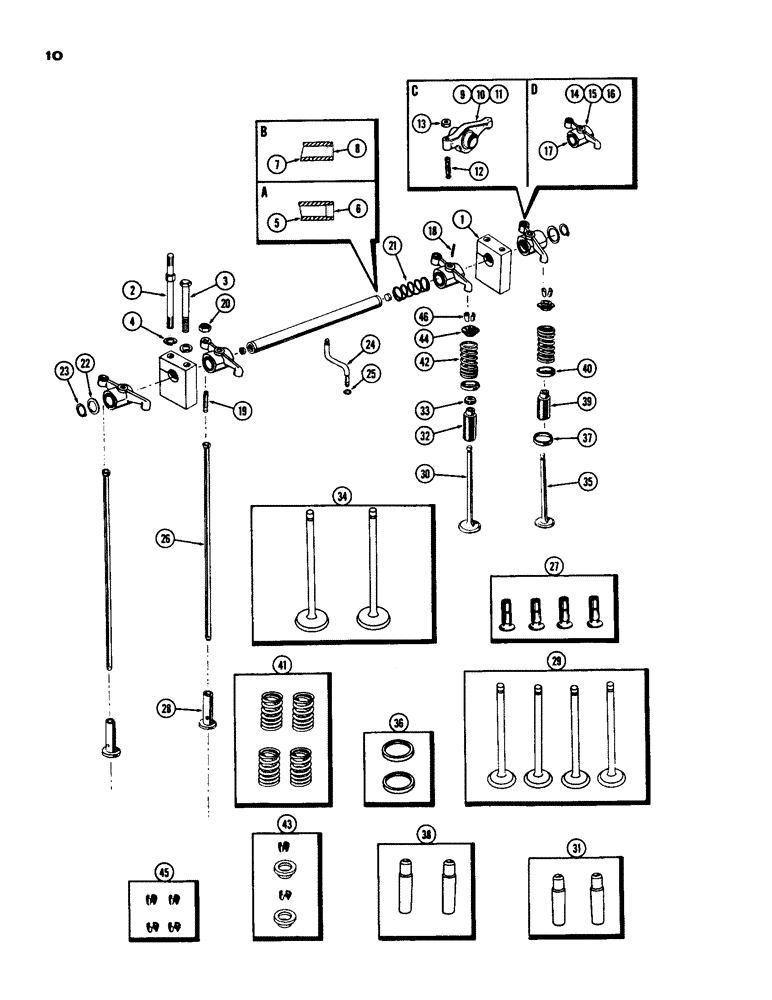

Запчасти Case IH 930-SERIES (010) - ROCKER ARMS, VALVES, AND PUSH RODS, DIESEL ENGINE (02) - ENGINE

1

O9773AB

BRACKET - valve rocker arm shaft

6шт.

2

O9774AB

STUD - valve rocker arm shaft bracket

6шт.

3

13-764

BOLT,Hex, 7/16" - 14 x 4", Gr 5

6шт.

4

92-7

LOCK WASHER,7/16"

12шт.

5

A21100

SHAFT

ASSY. - rocker arm (reamed) (see inset A), Includes Ref: 6

3шт.

6

O2803AB1

PLUG - cup, rocker shaft (9/16" x 3/16")

2шт.

7

A23671

X

SHAFT ASSY. - rocker arm (not reamed) (Order A21100) (see inset B), Includes Ref: 8

3шт.

8

A22318

PLUG - cup rocker arm shaft (7/32 x 1/4")

2шт.

9

A22322

ROCKER

ARM ASSY. - rocker, inlet valve (incl. items 12 & 13) (stamped) (see inset C)

6шт.

10

A22324

ROCKER

ARM ASSY. - rocker, exhaust valve For no. 1, 3 and 5 cylinder (incl items 12 & 13) (stamped) (see inset C)

3шт.

11

A22326

ROCKER

ARM ASSY - rocker, exhaust valve For no. 2, 4 and 6 cylinder (stamped) (see inset C), Includes Ref: 12 and 13

3шт.

12

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

13

25-106

NUT,3/8"-16, G5

- jam, 3/8" N.F hex.

1шт.

14

4608AA

ARM ASSY. - rocker, exhaust valve For no. 1, 3 and 5 cylinder (incl. item 17) (forged) (see inset D)

3шт.

15

4607AA

X

ARM ASSY. - rocker, inlet valve (incl. item 17) (forged) (see inset D)

6шт.

16

4609AA

ARM ASSY. - rocker, exhaust valve For no. 2, 4 and 6 cylinders (incl. items 17) (forged) (see inset D), Includes Ref: 17

3шт.

17

O9767AB

X

BUSHING - inlet and exh. rocker arm

1шт.

18

O9882AB

X

WICK - exh. valve rocker arm (for forged arm)

6шт.

19

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - valve push rod adjusting

12шт.

20

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam.

12шт.

21

O9769AB

X

SPRING - valve rocker arm shaft

3шт.

22

O9770AB

X

WASHER - valve rocker arm shaft

18шт.

23

O3658CH

X

SNAP RING - valve rocker arm shaft

6шт.

24

O9771AB

X

TUBE - oil, valve rocker arm shaft

3шт.

25

O9772AB

X

"O" RING - valve rocker arm shaft oil tube

3шт.

26

A21060

ROD

- push

12шт.

27

A21653

KIT

LIFTER SET - (Set of 4), Includes Ref: 28

3шт.

28

A20865

TAPPET

LIFTER - push rod (use A21653)

4шт.

29

A21812

VALVE SET - intake (Set of 4), Includes Ref: 30

2шт.

30

A11801

VALVE

- inlet (used A21712)

4шт.

31

A21671

GUIDE

SET - intake valve (Set of 2), Includes Ref: 32

3шт.

32

6321A

GUIDE - inlet valve (use A21671)

2шт.

33

A10726

SEAL

SHIELD - rubber, intake valve

6шт.

34

A24770

VALVE

SET - exhaust (Set of 2), Includes Ref: 35

3шт.

35

A24910

VALVE

- exh. (use A24770)

2шт.

36

A21681

KIT

INSERT SET - exhaust valve seat (Set of 2), Includes Ref: 37

3шт.

37

A11804

INSERT - exh. valve seat (use A21681)

2шт.

38

A21674

GUIDE

SET - exhaust valve (Set of 2), Includes Ref: 39

3шт.

39

A11803

GUIDE

- exh. valve (use A21674)

2шт.

40

O9751AB

X

SEAT - inlet and exh. valve spring

12шт.

41

A21694

SPRING

SET - valves (Set of 4), Includes Ref: 42

3шт.

42

A21076

SPRING

- inlet and exh. valve (use A21694)

4шт.

43

A21657

LOCK

RETAINER AND LOCKS SET (Set of 2 retainers & 4 locks), Includes Ref: 44

6шт.

44

A7359

RETAINER - valve spring (use A21657)

2шт.

45

A21656

RETAINER

LOCK SET - valve spring ret. (Set of 4), Includes Ref: 46

6шт.

46

O9763AB

LOCK - retainer (use A21656 or A21657)

8шт.
