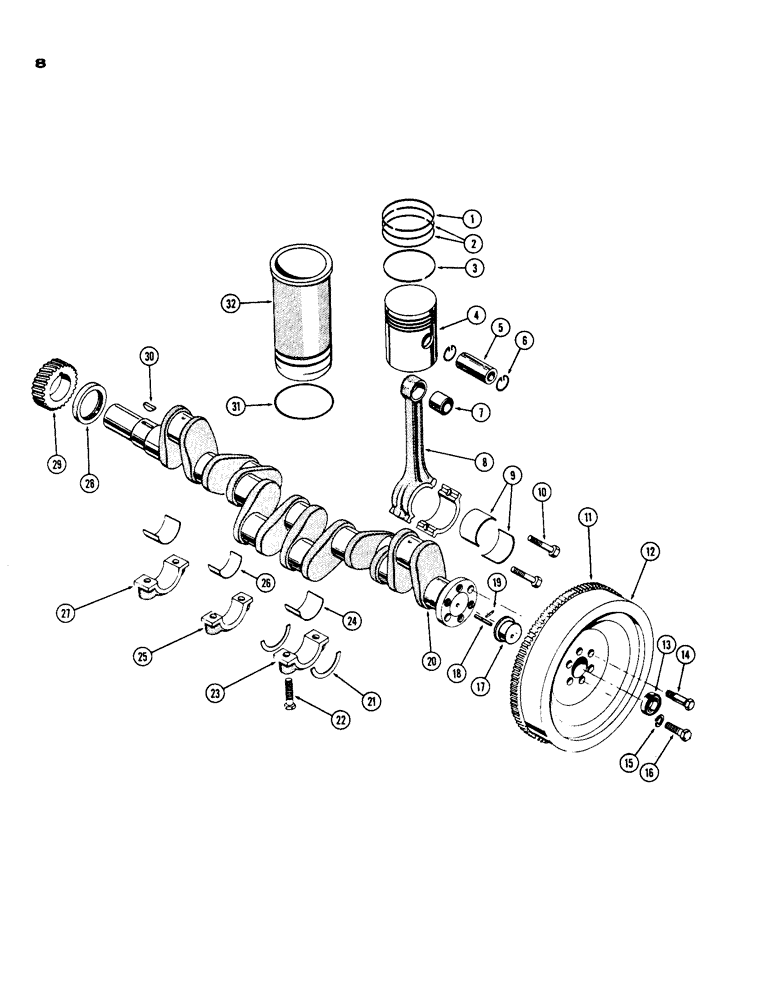

Запчасти Case IH 930-SERIES (008) - PISTONS, CONNECTING RODS AND CRANKSHAFT, DIESEL ENGINE (02) - ENGINE

1

A11102

RING

- piston, top

6шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement ring

1шт.

2

A11103

RING

- piston, 2nd & 3rd.

12шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement ring

1шт.

3

A11104

RING

- piston, oil

6шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement ring

1шт.

A14926

SET OF RINGS

RINGS - piston, set of (24) Perfect Circle 2-in-1 chrome (4-1/8" bore)

1шт.

4

A11101

PISTON

6шт.

5

A23107

PISTON PIN

PIN - piston (use A21723)

6шт.

6

O9714AB

X

RING - piston pin retainer (see A21723)

12шт.

7

O9716AB

BUSHING - piston pin (use A21721)

6шт.

A21721

BUSHING

S - piston pin, set of (2) 09716 AB

3шт.

8

4603AA

X

ROD - conn. w/cap, bushings & capscrews

6шт.

9

A20393

LINING

LINERS - conn. rod bearing (std. size)

6шт.

A20569

JOURNAL

LINERS - conn. rod (.002" undersize)

6шт.

A20571

BEARING LINER

LINERS - conn. rod (.010" undersize)

6шт.

A20573

KIT

LINERS - conn. rod (.020" undersize)

6шт.

A20576

LINING

LINERS - conn. rod (030" undersize)

6шт.

10

O9718AB

X

SCREW - conn. rod cap

12шт.

11

O9830AB

X

GEAR - flywheel ring

1шт.

12

A22897

FLYWHEEL - w/ring gear (hand clutch)

1шт.

12

A24334

FLYWHEEL - w/ring gear (foot clutch)

1шт.

13

O6945AB

X

BEARING - flywheel pilot (ND 8506)

1шт.

14

A24353

BOLT - flywheel dowel

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

16

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.F. hex. (hand clutch)

4шт.

16

A24352

X

BOLT - flywheel place (foot clutch)

4шт.

17

O9831AB

X

PLUG - flywheel oil control

1шт.

18

O9832AB

PIN - wiggle, flywheel oil control

1шт.

19

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, , For 09832AB pin 5/32" x 5/8", Slotted

1шт.

20

O9700AB

CRANKSHAFT

1шт.

21

O9705AB

X

WASHER - thrust (std. size) (see A7204)

2шт.

22

O9706AB

BOLT - place, crankshaft bearing

14шт.

23

6303A

CAP - crankshaft thrust bearing

1шт.

24

4706AA

X

LINER - crankshaft brg. (wide) (std. size)

4шт.

A7182

KIT

LINER - crankshaft (wide) (.002" undersize)

4шт.

A7188

BEARING LINER

LINER - crankshaft (wide) (.010" undersize)

4шт.

A7194

KIT

LINER - crankshaft (wide) (.020" undersize)

4шт.

A7200

KIT

LINER - crankshaft (wide) (.030" undersize)

4шт.

25

A6302A

X

CAP - crankshaft bearing, narrow

3шт.

26

A20394

LINING

LINER - crankshaft brg. narrow (std. size)

3шт.

A20579

LINING

LINER - crankshaft, narrow (.002" undersize)

3шт.

A20582

LINING

LINER - crankshaft, narrow (.010" undersize)

3шт.

A20585

KIT

LINER - crankshaft, narrow (.020" undersize)

3шт.

A20588

KIT

LINER - crankshaft, narrow (.030" undersize)

3шт.

27

6301A

CAP - crankshaft bearing wide

3шт.

28

A23433

OIL SEAL

OIL SEAL - crankshaft, front

1шт.

29

O9707AB

X

GEAR - crankshaft

1шт.

30

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear #C, 5/16" x 1 1/8", HT

2шт.

31

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing

12шт.

32

A23658

SLEEVE

- (see A23664)

6шт.

A40355

KIT

SET - of (2) sleeves, pistons, rings & pistons pins

3шт.

A21723

PIN

PISTON PINS - set of (2) A23107 & (4) 09714AB

3шт.
