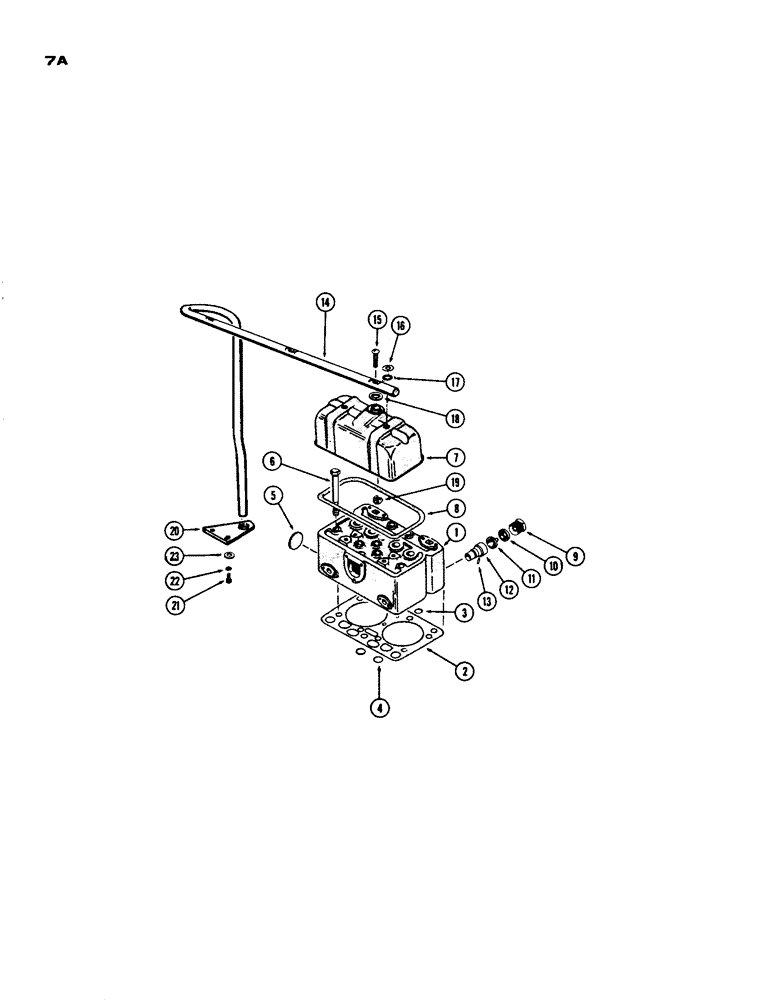

Запчасти Case IH 930-SERIES (007A) - CYLINDER HEAD-POWERCEL, DIESEL ENGINE (02) - ENGINE

1

A20956

HEAD (CYLINDER)

HEAD - cyl. w/valve guides and inserts

3шт.

2

A23118

GASKET

- cyl. head

3шт.

3

O8569AB

X

"O" RING - cyl. head gasket for oil passage

3шт.

4

A7669

RING

- rubber, for cyl. head gasket

6шт.

5

A23653

X

PLUG - cup, cyl. head

6шт.

6

A23355

BOLT

- cyl. head

27шт.

7

A23681

COVER ASSY

COVER - cyl. head

3шт.

8

O9959AB

X

GASKET - cyl. head cover (See A22347 kit)

3шт.

9

A11813

PLUG

SCREW - powrcel clamp

6шт.

10

A11812

CLAMP

- powrcel

6шт.

11

A22979

CAP - powrcel

6шт.

12

A22978

BODY

- powrcel

6шт.

13

A11810

PIN,3.19mm OD x 6.99mm L

- locating body

6шт.

14

A24184

TUBE

- blow by breather

1шт.

15

75-432

SCREW

- 1/4" x 2" N.C. rhd. mach.

3шт.

16

A23683

WASHER

- valve and cyl. head cover stud

6шт.

17

A23684

GASKET

GASKET - valve and cyl. head cover stud

6шт.

18

A23685

GASKET

- breather tube to cyl. head cover

3шт.

19

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4"-20 Tinnerman speed grip

3шт.

20

A23686

BRACKET

- breather tube

1шт.

21

A9936

BOLT - oil pan and breather tube brkt.

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

195-25

WASHER,3/8"

- SAE plain 3/8"

1шт.
