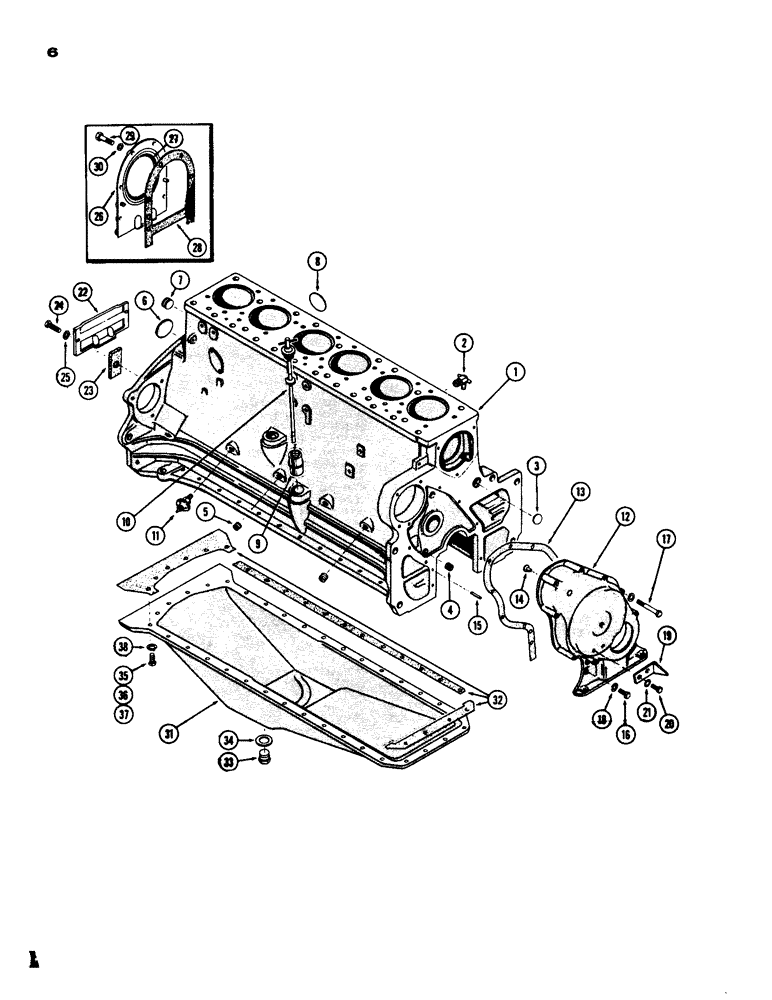

Запчасти Case IH 930-SERIES (006) - CYLINDER BLOCK AND TIMING GEAR COVER, DIESEL ENGINE (02) - ENGINE

A40527

BLOCK - stripped engine, consists of block, pistons, sleeves, conn. rods & crankshaft

1шт.

1

A23489

BLOCK - cyl., w/brg. caps, camshaft bshgs & plugs

1шт.

2

A23656

COCK, DRAIN

VALVE - water drain

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- caps

1шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" hex. socket hd.

5шт.

5

221-41

PLUG

- 1/8" slotted hd. pipe

4шт.

6

A24361

PLUG

- cup, rear camshaft hole

1шт.

7

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - 1" sq. hd. pipe

1шт.

8

41-1622

PLUG,Cup, 1 3/8", Stainless

- cup cyl. block

1шт.

9

A20714

X

SOCKET - lube oil level gauge

1шт.

10

A20739

GAUGE

- lube oil level bayonet

1шт.

11

A13794

TRANSMITTER

SWITCH - lube oil pressure

1шт.

12

A20718

COVER - timing gear assy.

1шт.

13

A33018

GASKET

- timing gear cover

1шт.

14

O9754AB

BUTTON - thrust, timing gear cover

2шт.

15

O9710AB

PIN - dowel, timing gear cover

2шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex.

8шт.

19

A21362

CLIP

POINTER - timing

1шт.

20

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

21

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" Shakeproof ext.-int.

2шт.

22

6304

BAFFLE - oil pan, rear (Order A32182 & 32830)

1шт.

23

O9711AB

X

GASKET - baffle plate

2шт.

24

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

A32182

RETAINER

- rear oil seal

1шт.

27

A23085

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2")

1шт.

28

A32830

GASKET

- retainer

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

30

92-6

LOCK WASHER,3/8"

6шт.

31

A23637

PAN - oil

1шт.

32

4790AA

X

GASKET KIT - oil pan

1шт.

33

A14280

PLUG

- drain, oil pan

1шт.

34

O9844AB

X

GASKET - oil pan drain plug

1шт.

35

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

33шт.

36

A9936

BOLT - 3/8" x 1-1/4" N.C. hex. w/insert, oil pan

1шт.

37

A9936

BOLT - oil pan and breather tube brkt.

2шт.

38

92-6

LOCK WASHER,3/8"

oil pan 3/8"

34шт.
