Запчасти Case IH 930 (1-1) - DIESEL ENGINE, POWRCEL, PAGE 5 (02) - ENGINE

A11809

X

BODY - powrcel (use A22978)

1шт.

A11811

CAP - powrcel (use A22979)

1шт.

A22978

BODY

- powrcel

6шт.

A22979

CAP - powrcel

6шт.

O9713AB

PIN - piston (see A23107), and connecting rods

1шт.

A23107

PISTON PIN

PIN - piston (replaces 09713AB) (use A21723), and connecting rods

6шт.

A21723

PIN

PISTON PINS - set of (2) A23107 and (4) 09714AB retainers, and connecting rods

3шт.

A22896

FLYWHEEL (use A22897), crankshaft

1шт.

A22897

FLYWHEEL - with ring gear (serial no. 8168801 and after), crankshaft

1шт.

6318A

FLYWHEEL (use 4624AA), crankshaft

1шт.

4624AA

FLYWHEEL - with ring gear (prior to serial no. 8168801) (use A22897 when present stocks are exhausted), crankshaft

1шт.

A20865

TAPPET

LIFTER - push rod (use A21653), valves, and camshaft

1шт.

A21061

LIFTER - push rod (never used), valves and camshaft

1шт.

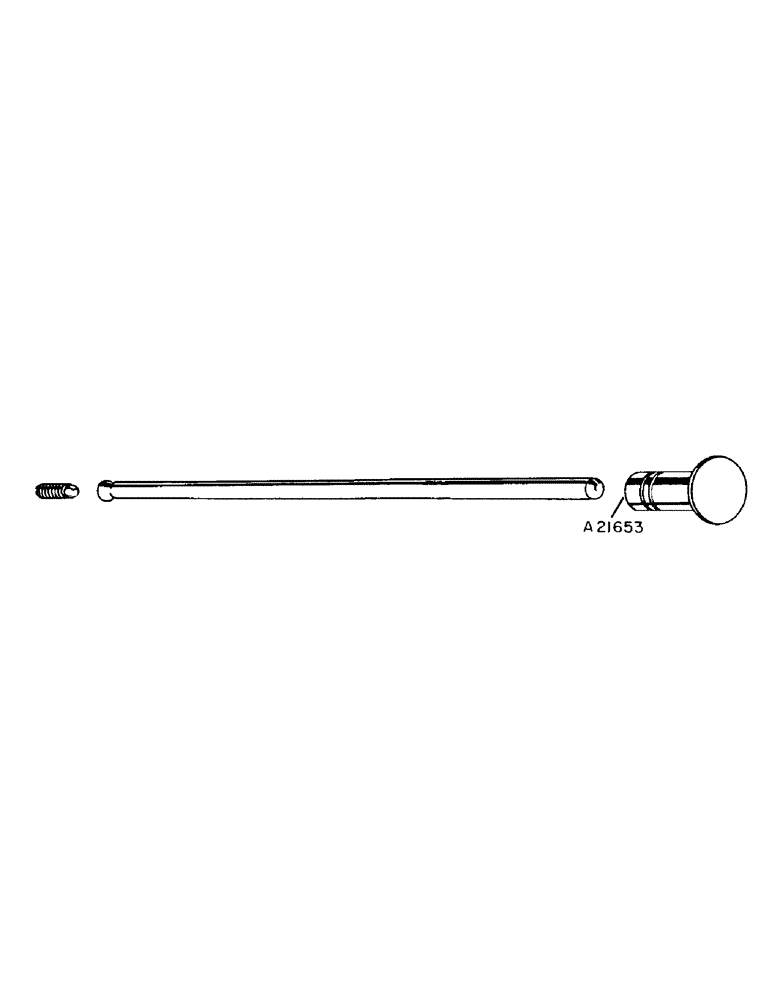

A21653

KIT

LIFTER - set of (4) A20865 push rod, valves and camshaft

3шт.

A21654

KIT

LIFTER - push rod (never used), valves and camshaft

1шт.

A22394

PLUG

- expansion, rear camshaft bore (replaces A41-40), cylinder block

1шт.

A41-40

PLUG - welch (use A22394), cylinder block

1шт.
