Запчасти Case IH 930 (6-26[3]) - THERMOSTAT, FRONT END WEIGHTS SERIAL NUMBER 8172001 AND AFTER (02) - ENGINE

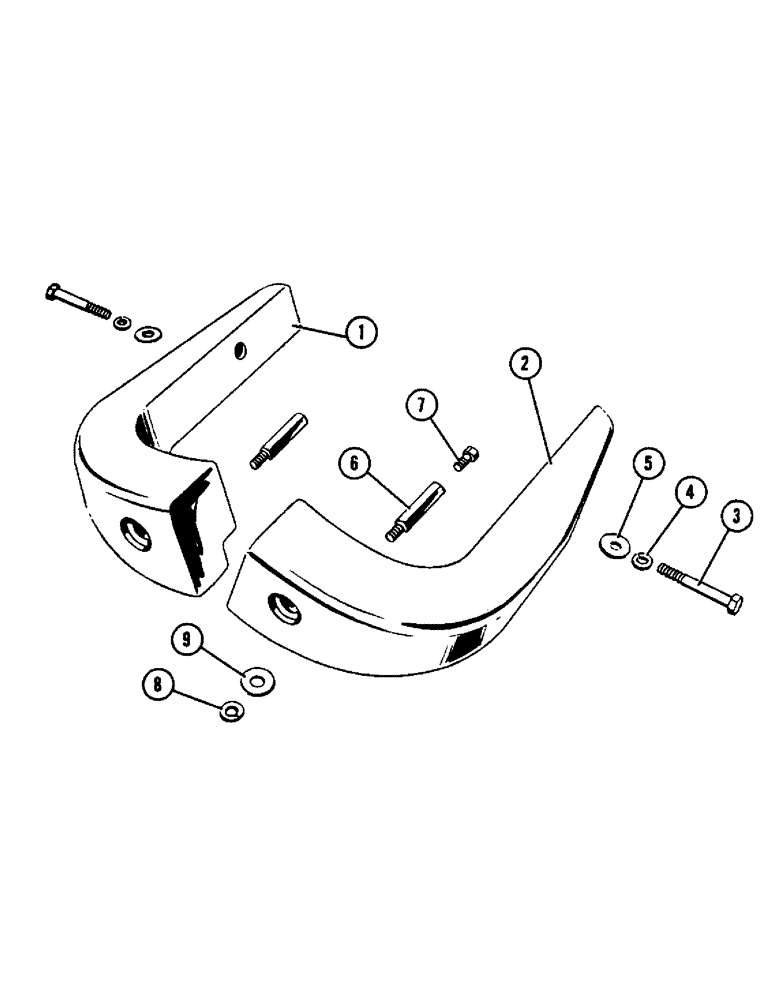

Схема запчастей Case IH 930 - (6-26[3]) - THERMOSTAT, FRONT END WEIGHTS SERIAL NUMBER 8172001 AND AFTER (02) - ENGINE

Артикул

Название

Примечание

Количество

A7634

THERMOSTAT

- 180 degree to 195 degree (replaces A11422)

1шт.

A11420

HOUSING - thermostat (use A20921)

1шт.

A11422

X

THERMOSTAT (use A7634)

1шт.

A20921

HOUSING - thermostat, diesel and LP-gas

1шт.

A21456

X

FAN - 3/16" spider (use A23106)

1шт.

A23106

HALF BLADE

FAN - 1/4" spider (replaces A21456)

1шт.

1

A8754

WEIGHT - front end, R.H.

1шт.

2

A8755

WEIGHT - front end, L.H.

1шт.

3

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

195-45

WASHER,3/4"

2шт.

6

A23075

STUD - front end weight mounting

2шт.

7

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

95-10

WASHER,5/8"

- std. wrot 5/8"

2шт.

A23090M

WEIGHTS - set of front end (consists of 1 - A8754, 1 - A8755, 2 - with bolts, nuts and washers) (machinery item)

1шт.

Выбрано товаров: 16
