Запчасти Case IH 930 (4-12[4]) - SPARK IGNITION ENGINE, CARBURETOR, PAGE 42 (02) - ENGINE

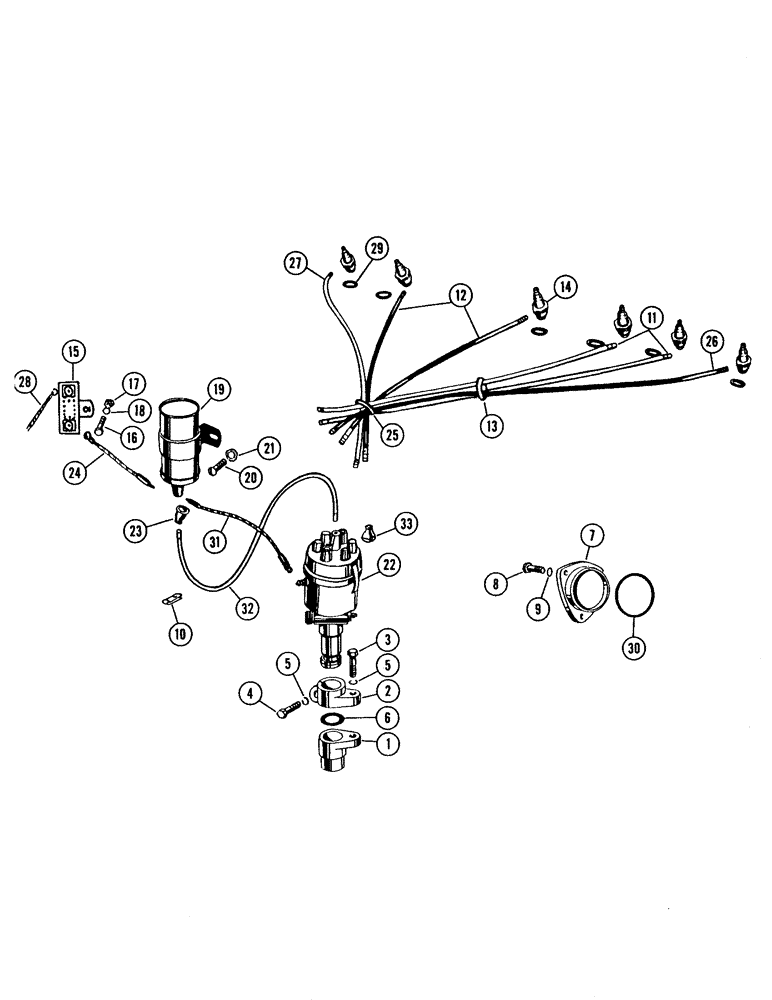

Схема запчастей Case IH 930 - (4-12[4]) - SPARK IGNITION ENGINE, CARBURETOR, PAGE 42 (02) - ENGINE

Артикул

Название

Примечание

Количество

A11830

SUPPORT - air cleaner (to cylinder block)

2шт.

A21433

CAP

PRE-SCREENER - air intake (standard equipment) (see A22301)

1шт.

A22301

PRESCREENER

PRE-SCREENER - air intake (special equipment for severe operating conditions where extreme chaff conditions are found)

1шт.

O9820AB

STRAP - air cleaner (to A11830)

2шт.

A22780

SPRING

- screen attaching

2шт.

A22781

CLIP

- spring attaching

1шт.

A22782

SCREEN

ASSEMBLY (includes springs and clip)

1шт.

1

A7621

INSERT - distributor support

1шт.

2

A7622

CLAMP - distributor mounting

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

4

75-520

SCREW - 5/16" x 1-1/4" N.C. rhd. machine

1шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor support insert

1шт.

7

A7625

COVER - magneto bracket opening

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

A7922

CLIP

- for distributor wire on cylinder block

1шт.

11

A20143

ELECTRICAL WIRE

WIRE - spark plug, #2 and #3 cylinders (15")

2шт.

12

A20144

ELECTRICAL WIRE

WIRE - spark plug, #4 and #5 cylinders (11")

2шт.

13

A20265

RING - spark plug wire (3 wire)

1шт.

14

A20905

SPARK PLUG

PLUG - spark, 18 mm (Champion #D9) (includes 07769AB gasket)

6шт.

15

A20934

X

RESISTOR (WICO no. X30061B)

1шт.

16

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

17

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

18

92-5

LOCK WASHER,5/16"

1шт.

19

A20949

X

COIL - ignition (Wico no. X30081B)

1шт.

20

75-510

HANDBOOK

SCREW - 5/16" x 5/8" N.C. rhd.

2шт.

21

193-45

WASHER,Ext-Int Tooth, 5/16"

- 5/16" shakeproof ext.-int. #4018-24

2шт.

22

A21164

DISTRIBUTOR (Wico no. X30174)

1шт.

23

A21820

X

NIPPLE - ignition coil wire

1шт.

24

A22879

WIRE - resistor to ignition coil (serial no. 8172001 and after) (see 010224AB)

1шт.

25

O1798AB

RING - spark plug wire (6 wires)

1шт.

26

O4024AB

X

WIRE - spark plug, #1 cylinder (25-1/2")

1шт.

27

O4492AB

X

WIRE - spark plug, #6 cylinder (21-1/2")

1шт.

28

O5051AB

WIRE - starter solenoid to resistor (prior to serial no. 8172001)

1шт.

29

O7769AB

X

GASKET - spark plug

6шт.

30

O8861AB

X

"O" RING - drive bracket cover

1шт.

31

O10224AB

WIRE - resistor to coil and coil to distributor (prior to serial no. 8172001)

2шт.

31

O10224AB

WIRE - coil to distributor (serial no. 8172001 and after) (see A22879)

1шт.

32

VT2876

X

WIRE - center coil terminal to center distributor cap terminal

1шт.

33

VT3561

X

NIPPLE - distributor to coil and spark plug wires

7шт.

217-3

ADAPTER - 1/4" male to 3/8" female in 1/4" pipe tee at block

1шт.

O9739AB

X

VALVE - water drain

1шт.

A20541

CLIP

- choke control (on air cleaner clamp)

1шт.

Выбрано товаров: 44
